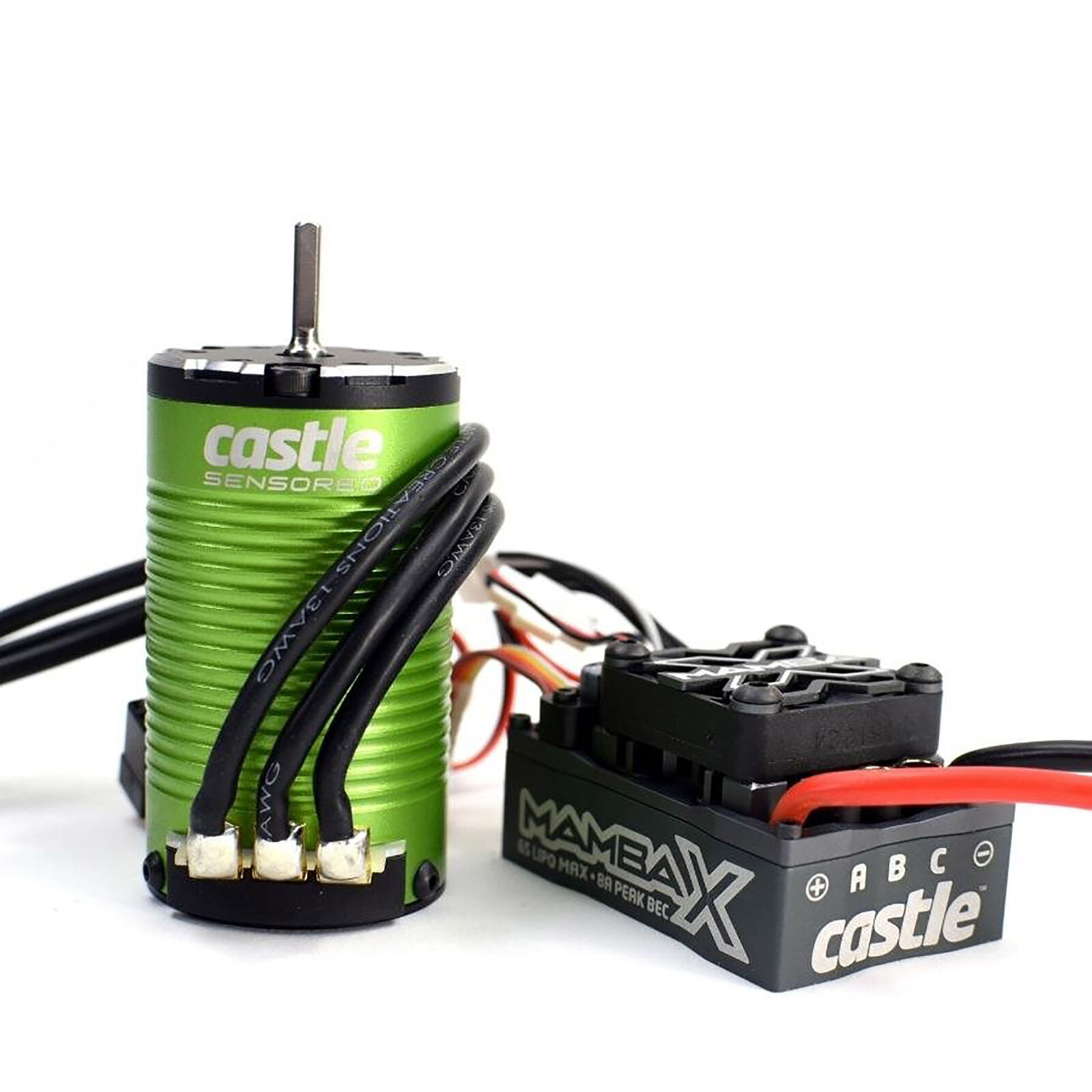

MAMBA X SCT Brushless ESC / 1412-3200Kv Sensored Motor Combo

Item No. CSE010015512
Brand Logo
3.7 out of 5 Customer Rating

MAMBA X SCT Brushless ESC / 1412-3200Kv Sensored Motor Combo

Item No. CSE010015512
$259.95
RC Club points earned on this item shown at checkout.
In Stock
Selected Store

Product Details

icon-box
In The Box
  • (1) Mamba X ESC with Sensor Harness
  • (1) 1410-3200Kv 4-pole 12-slot Sensored Motor
  • (1) Coupon for free Castle Link USB
  • (1) Mamba Decals
  • (1) Driver's Ed and Quick Start Guide
  • (1) Gearing Chart for Castle Motors

COPPERHEAD 10 Features

  • ESC voltage range 2S-6S (4s max with included motor)
  • 1412-2100Kv Sensored Motor
  • Waterproof
  • 8A Adjustable BEC (5.25V-8.0V)
  • Data-logging
  • Rugged CNC Aluminum Case
  • Castle Link Programming Support
  • Convenient Transmitter Programming
  • Auxiliary Wire Functionality for "on-the-fly" adjustments
  • SmartSenseâ„¢Technology
  • Integrated Capacitors
  • Removable 30mm Cooling Fan
  • Integrated 4mm Bullet Connectors
  • 12 AWG Power Wires
  • Waterproof Switch
  • Audible Alerts and LED Alerts for easy diagnoses of common issues
  • ROAR Certified ESC
  • RECON G6 Certified ESC

Meet the next generation

Castle Creations is proud to announce our new flagship surface product, the MAMBA X EXTREME 1:10 SCALE WATERPROOF ESC. We at Castle wanted to address three main concepts while designing a new ESC for the modern day RC enthusiast; VERSATILITY, RELIABILITY, and PERFORMANCE. These are the pillars of the Mamba X design and the driving forces behind the feature-packed controller.

The Mamba X is extremely versatile, capable of powering a wide variety of applications ranging from 2S to 6S and vehicles ranging from 1/10th scale to 1/8th scale*.The Mamba X with 1412-3200Kv sensored motor is perfect for 2WD and 4x4 short course trucks, monster trucks and rock racers running up to 3s LiPo and weighing up to 6.5 lbs; it can be run on a 4s LiPo with very conservative gearing and keep a close eye on temperatures. It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 4s LiPo.

*In 1/8th scale setups, the Mamba X is intended to be used for off-road racing in buggies weighing up to 9 lbs (including batteries and ready-to-run). In these 1/8th scale racing setups, the Mamba X should be run at 4S Lipo (16.8V) max and is recommended to be paired with the Castle 1512-1800Kv or Castle 1515-2200Kv motor, with appropriate gearing only.

Product Specifications

Adjustable Timing No
Auto Cutoff Yes
BEC Yes
BEC Maximum Burst Current 8.0 Amp
BEC Voltage 5.5V - 8.0V Adjustable
Brakes Integral with ESC
Bushing Or Bearing Bearing
Connector Type Open Ends
Forward Yes
Input Voltage 2S - 6S LiPo
Low-Voltage Cutoff Programmable Yes
Motor Type Brushless
Overload Protection Yes
Programmable Yes
Reverse Yes
RPM/Volt (Kv) 3200Kv
Sensored Yes
Shaft Diameter 0.125" (3 mm)
Shaft Length 0.59" (15 mm)
Speed Control Included
Water-Resistant Yes
