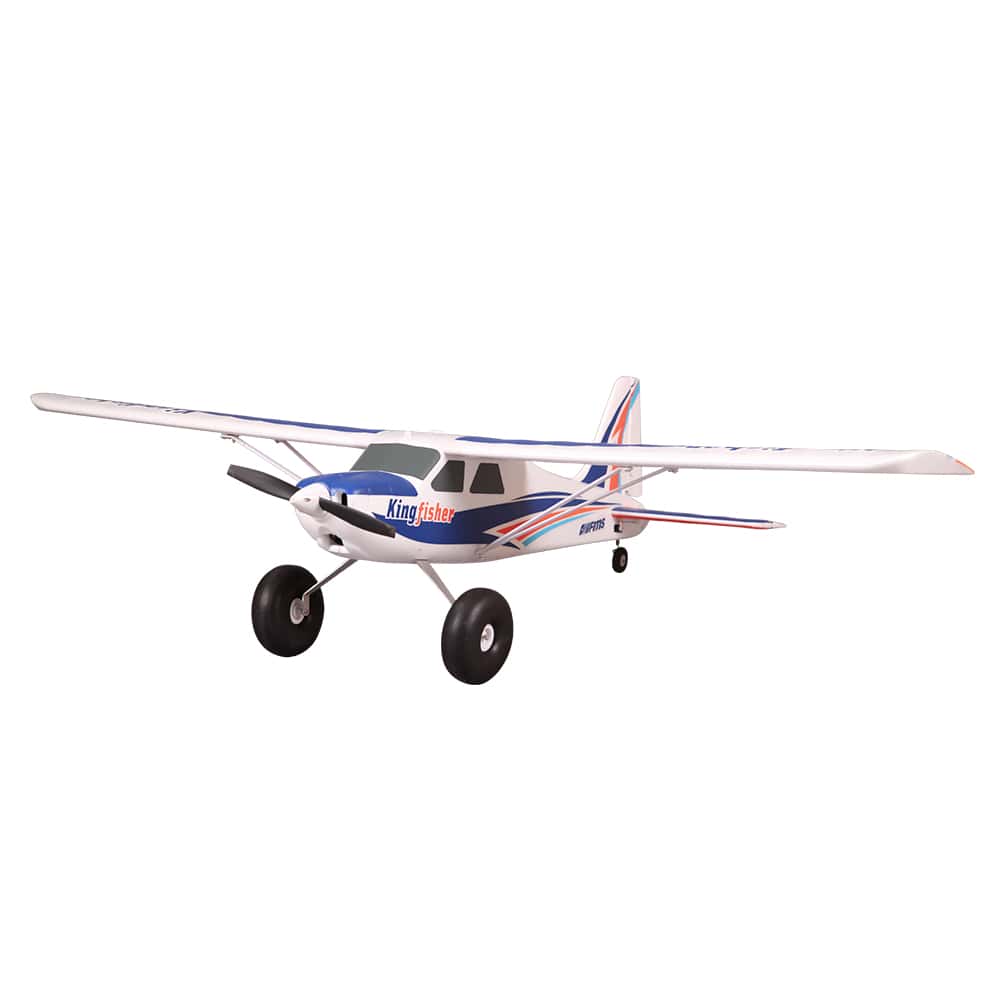

Kingfisher 1400mm PNP with Reflex

Item No. FMM103PFX
Brand Logo
4.1 out of 5 Customer Rating

Kingfisher 1400mm PNP with Reflex

Item No. FMM103PFX
$269.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

icon-box
In The Box
  • (1) FMS Kingfisher 1400mm PNP
  • (1) Product Manual
icon-how-to
Needed to Complete
  • Full-range, 5+ channel transmitter
  • Full-range, 5+ channel receiver
  • 2200mAh 3S LiPo flight battery (KXSB0015 recommended)
  • Compatible LiPo charger

Overview

Following the popularity of the FMS Super EZ V2, FMS is thrilled to offer a multi-role trainer—the 1400mm Kingfisher. With simple assembly, ease of control and stability, plus great performance, the Kingfisher is ideal for beginners.

With the beginner pilot in mind, FMS’ Kingfisher is the ultimate user-friendly plane. Assembly is easy with convenient bolt-on wings and stabilizer, plus a quick-release battery cover and supporting struts. Everything self-aligns and fits only one way so chance of assembly errors is as low as possible. By far the coolest part about the Kingfisher is its versatility. With three sets of landing gear included, the Kingfisher can handle any field type at just about any location. The oversize wheel set is provided for grass fields and gravel roads. The float set includes an simple setup so that flying from water is easy, even if you’ve never done it before. Finally, the skis provided make it possible to even fly in frigid conditions from snow. Cool upgrades are also available for the Kingfisher such as an electric towing hook for banners and gliders. Plus, the model is features an FPV equipment bay making it FPV ready. DO NOT miss this revolutionary multipurpose trainer. The Kingfish is ONE plane with virtually endless potential.

Features

  • Screw-together construction—no glue required
  • Two-piece, plug-in wings and quick-release struts
  • Functional Flaps
  • Carbon-fiber wing joiner tubes
  • Lightweight and durable EPO construction
  • Powerful brushless 3536, 850Kv outrunner motor
  • Predator 40A brushless ESC
  • Long flying times of 10–15 minutes
  • Giant wheels for operation from grass and rough surfaces

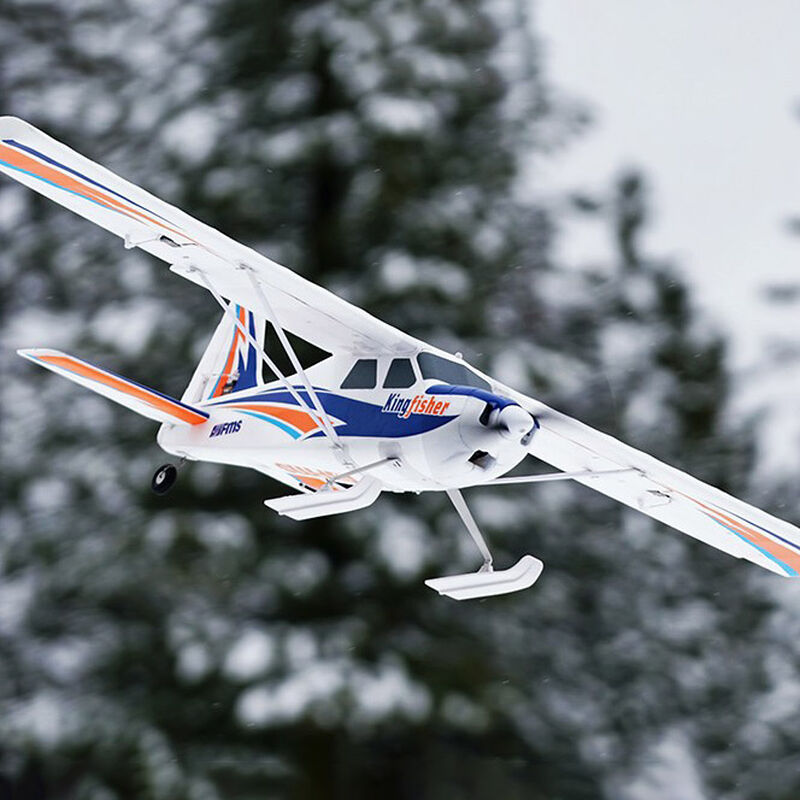

  • Skis for operation from ice and packed snow
  • Float set and a water rudder for seaplane conversion
  • Convenient top hatch
  • Optional tow-hook release
  • FPV Ready with optional-use battery hatch

Video Overview



FMS Reflex V2



Complete System Upgrade - Reflex V2 is Compatible with Most FMS Aircraft

The Reflex V2 is a user-upgradeable flight controller. Reflex V2 can be reprogrammed easily with different model files via a simple software - allowing pilots to use the same flight control unit as they progress to different aircraft. Flying is simple when you have your very own “co-pilot” — the Reflex V2!

Reflex Functions

Three flight modes are available: Stabilized, Optimized or Off. This is controlled with a two or three position switch on the transmitter. When assigned to a two position switch, the Reflex system changes between stabilized and optimized modes.

Stabilized mode: Designed for beginners, Reflex will rapidly level the aircraft from any attitude when this mode is activated. Stabilized mode combines accelerometer and gyro data to determine how to level the aircraft when the control sticks are released - giving pilots absolute peace of mind. Note: The aircraft will maintain level flight with 50-60% throttle, and the aircraft will climb under full throttle.

Optimized mode: Utilizing advanced solid-state gyros, the Reflex system maintains aircraft attitude by counteracting inflight upsets - for gusts to crosswinds. With Reflex, even small aircraft will fly with the confidence of something much larger!

Off: Turns off all gyro functionality, the aircraft is flown completely manually when the gyro is off.

Reflex V2 Overview



Software Installation



Product Specifications

Approximate Assembly Time Less than 1 Hour
Approximate Flight Time 10-15 minutes
CG (Center of Gravity) 60mm (from leading edge, at the root)
Completion Level Plug-N-Play
Flaps Yes
LiPo Compatibility 3S
Material EPO
Motor Size Brushless 3536, 850Kv Outrunner
Power Type Electric
Product Length 36.02" (915 mm)
Propeller Size 11 x 7
Receiver Sold Separately
Recommended Motor Battery 3S 11.1V 2200mAh 30C LiPo (sold separately)
Skill Level Level 3
Speed Control Included
Wing Area 451 sq in (29.1 dm2)
Wingspan 55.12" (1400 mm)
