HS-7950TH High-Voltage Mega Torque Servo: Universal

Item No. HRC37950S
Discontinued
Brand Logo
4.9 out of 5 Customer Rating

HS-7950TH High-Voltage Mega Torque Servo: Universal

Item No. HRC37950S
This Item is No Longer Available
Selected Store

Product Details

Hitec's strongest servo period, the "Ultra Torque" HS-7950TH is designed to operate on a two cell LiPo Pack. Featuring our high resolution "G2" second generation programmable digital circuit and our indestructible Titanium gears, the HS-7950TH has the performance and durability you've come to expect from a Hitec servo. Other features in the HS-7950TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by axial brass bushing. The HS-7950TH has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 403 oz./in. of torque at 6.0 volts, while still maintaining a respectable 0.15 second transit time.
Key Features
  • Speed: @4.8V .17sec/60' / @7.4V .14sec/60'
  • Torque: @4.8V 403oz/in / @7.4V 486oz/in
  • G2 Digital Circuit
  • Titanium Gear Train
  • Ultra Performance Coreless Motor
  • Heatsink Case
  • Dual Ball Bearing Supported Output Shaft
icon-box
In The Box
  • (1) HS-7950TH High-Voltage Mega Torque Servo: Universal
HS-7950TH High-Voltage Mega Torque Servo: Universal

Product Specifications

Current Draw Stall 9,000 mA
Motor Type Brushed
Servo Operating Voltage 6.0 - 7.4V (HV)
Bearing Dual Ball Bearing
Bushing Or Bearing Bearing
Gear Type Metal
Wire Gauge 22 AWG
Programmable Yes
Servo Size Category Standard
Application High Performance Aircraft, Cars, Boats
Product Weight 2.29oz (65.0g)
Spline Count 24 - Tooth
Water-Resistant No
Current Draw Idle 10 mA

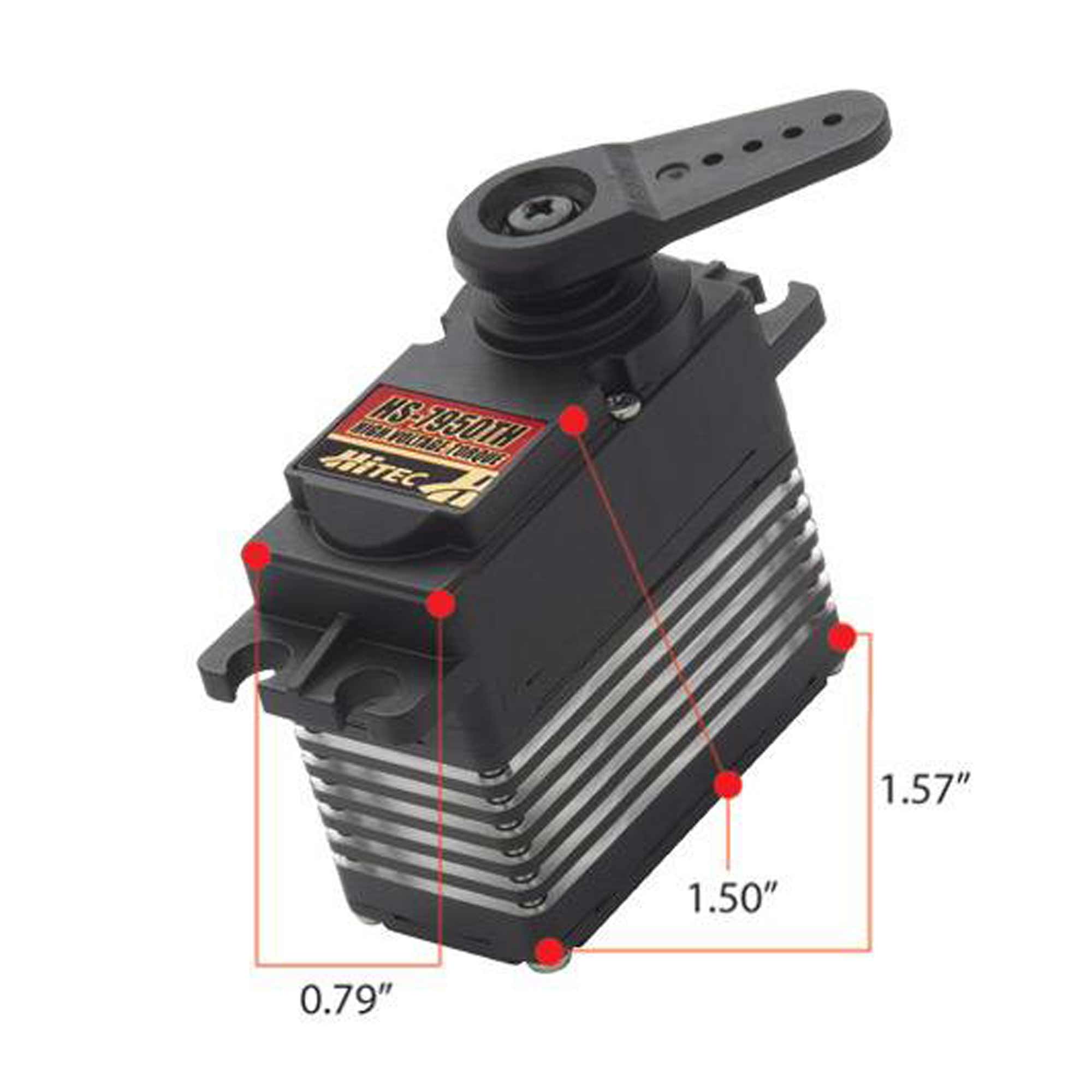

Product Width 0.79" (20 mm)
Connector Type Universal
Maximum Servo Speed 0.17 sec/60 deg @ 6.0V, 0.14 sec/60 deg @ 7.4V
Product Length 1.57" (40 mm)
Deadband 2┬Ás
Input Voltage 6.0V ~ 7.4V
Product Height 1.5" (38 mm)
Servo Type Digital
Maximum Servo Torque 403oz/in @ 6.0V, 486oz/in @ 7.4V
