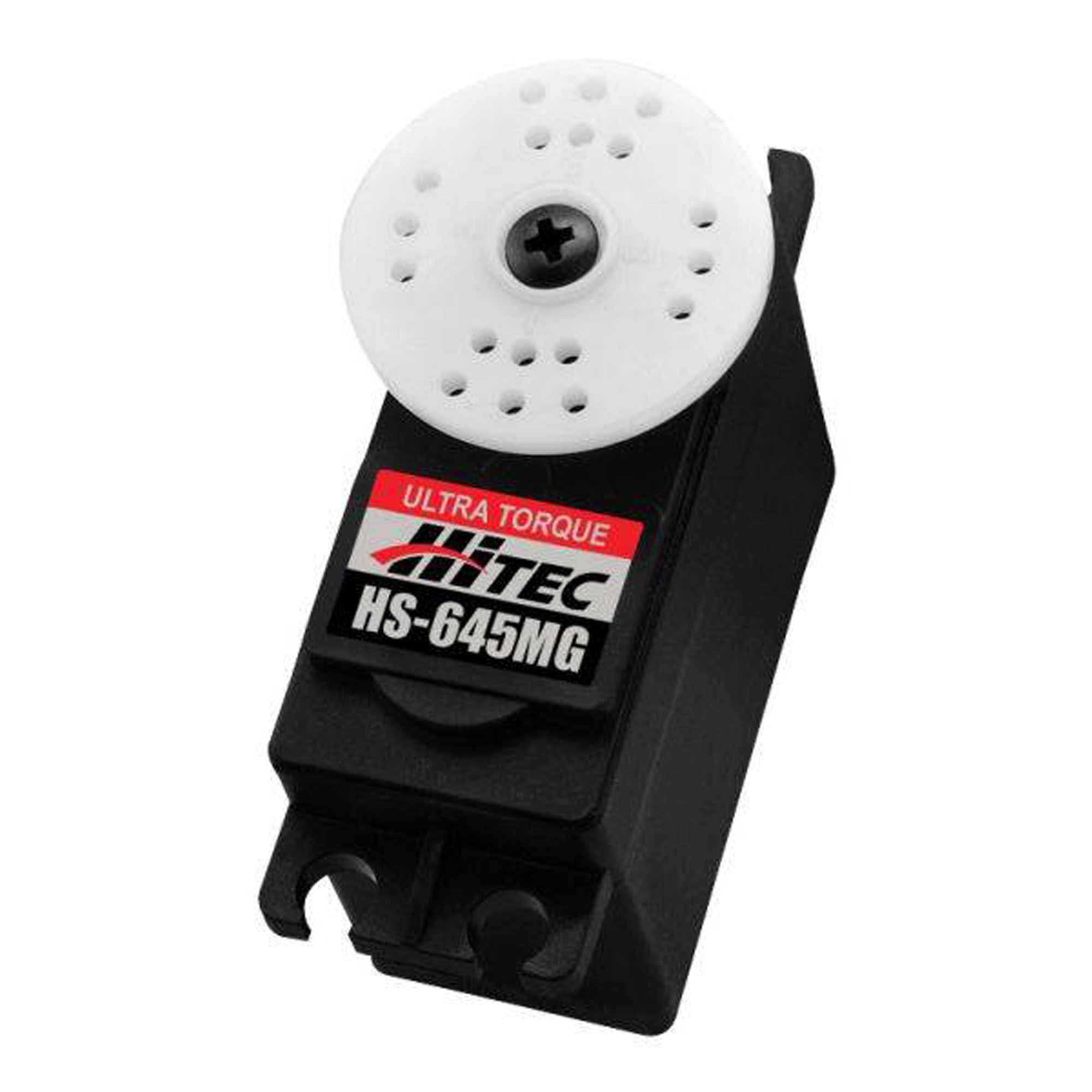

HS-645MG High Torque Metal Gear Premium Sport Servo

Item No. HRC32645S
Brand Logo
3.5 out of 5 Customer Rating

HS-645MG High Torque Metal Gear Premium Sport Servo

Item No. HRC32645S
$34.99
RC Club points earned on this item shown at checkout.
In Stock
Selected Store

Product Details

The powerful HS-645MG is one of Hitec’s most popular servos. It’s the perfect choice for those larger sport planes or monster trucks and buggies requiring a durable high torque servo. Featuring our unique M/P and metal gear train technology, the HS-645MG offers one of the strongest gear trains available in any servo.
Key Features
  • Speed: @4.8V .24sec/60' / @6.0V .20sec/60'
  • Torque: @4.8V 106.93oz/in / @6.0V 133.31oz/in
  • Top Selling High Torque Metal Gear Servo
  • Strong Three-Pole Ferrite Motor
  • Heavy Duty Metal Gear Train Featuring our Revolutionary Metal/Plastic First Gear (MP Gear)
  • Dual Ball Bearing-Supported Output Shaft
icon-box
In The Box
  • (1) HS-645MG High Torque Metal Gear Premium Sport Servo
HS-645MG High Torque Metal Gear Premium Sport Servo

Product Specifications

Programmable No
Servo Size Category Standard
Current Draw Idle 9.1 mA
Product Width 0.77" (20 mm)
Maximum Servo Torque 107oz/in @ 4.8V, 133 oz/in @ 6.0V
Deadband >5µs
Input Voltage 4.8V ~ 6.0V
Product Height 1.48" (38 mm)
Servo Type Digital
Bearing Dual Ball Bearing
Bushing Or Bearing Bearing
Gear Type Metal
Wire Gauge 22 AWG
Connector Type Universal
Maximum Servo Speed 0.24 sec/60 deg @ 4.8V, 0.20 sec/60 deg @ 6.0V
Product Length 1.59" (40 mm)
Application Sport Aircraft, Cars
Product Weight 1.94oz (55.2g)
Spline Count 24 - Tooth
Water-Resistant No
Current Draw Stall 2,500 mA
Motor Type Brushed
Servo Operating Voltage 4.8 - 6.0V
