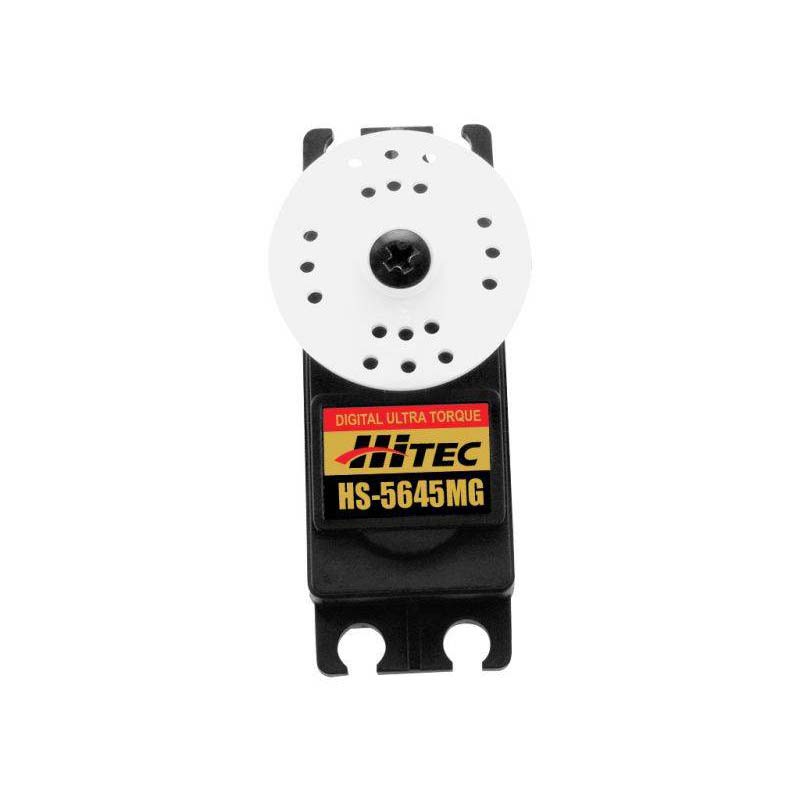

HS-5645MG Standard Digital High Torque Metal Gear Servo

Item No. HRC35645S
Brand Logo
3.8 out of 5 Customer Rating

HS-5645MG Standard Digital High Torque Metal Gear Servo

Item No. HRC35645S
$45.99
RC Club points earned on this item shown at checkout.
In Stock
Selected Store

Product Details

The digital version of our popular HS-645 is the HS-5645MG, featuring a programmable digital circuit and our custom MP/metal gear train technology. Perfect for larger airplanes and heli’s, the HS-5645MG will deliver higher resolution and torque than its analog brother.
Key Features
  • Speed: @4.8V .23sec/60' / @6.0V .18sec/60'
  • Torque: @4.8V 143oz/in / @6.0V 168oz/in
  • Top Selling High Torque Standard Digital Servo
  • Strong Three-Pole Ferrite Motor
  • Metal Gear Train with MP Gear Technology
  • Dual Ball Bearing-Supported Output Shaft
  • Standard Programmable Digital Circuit Provides Fine Resolution and Centering
icon-box
In The Box
  • (1) HS-5645MG Standard Digital High Torque Metal Gear Servo
HS-5645MG Standard Digital High Torque Metal Gear Servo

Product Specifications

Deadband 4µs
Input Voltage 4.8V ~ 6.0V
Product Height 1.48" (38 mm)
Servo Type Digital
Current Draw Stall 2,400 mA
Motor Type Brushed
Servo Operating Voltage 4.8 - 6.0V
Maximum Servo Torque 143oz/in @ 4.8V, 168oz/in @ 6.0V
Current Draw Idle 3 mA
Product Width 0.77" (20 mm)
Application Sport Aircraft, Helicopters, Cars, Boats
Product Weight 2.11oz (60.0g)
Spline Count 24 - Tooth
Water-Resistant No
Connector Type Universal
Maximum Servo Speed 0.23 sec/60 deg @ 4.8V, 0.18 sec/60 deg @ 6.0V
Product Length 1.59" (40 mm)
Programmable Yes
Servo Size Category Standard
Bearing Dual Ball Bearing
Bushing Or Bearing Bearing
Gear Type Metal
Wire Gauge 22 AWG
