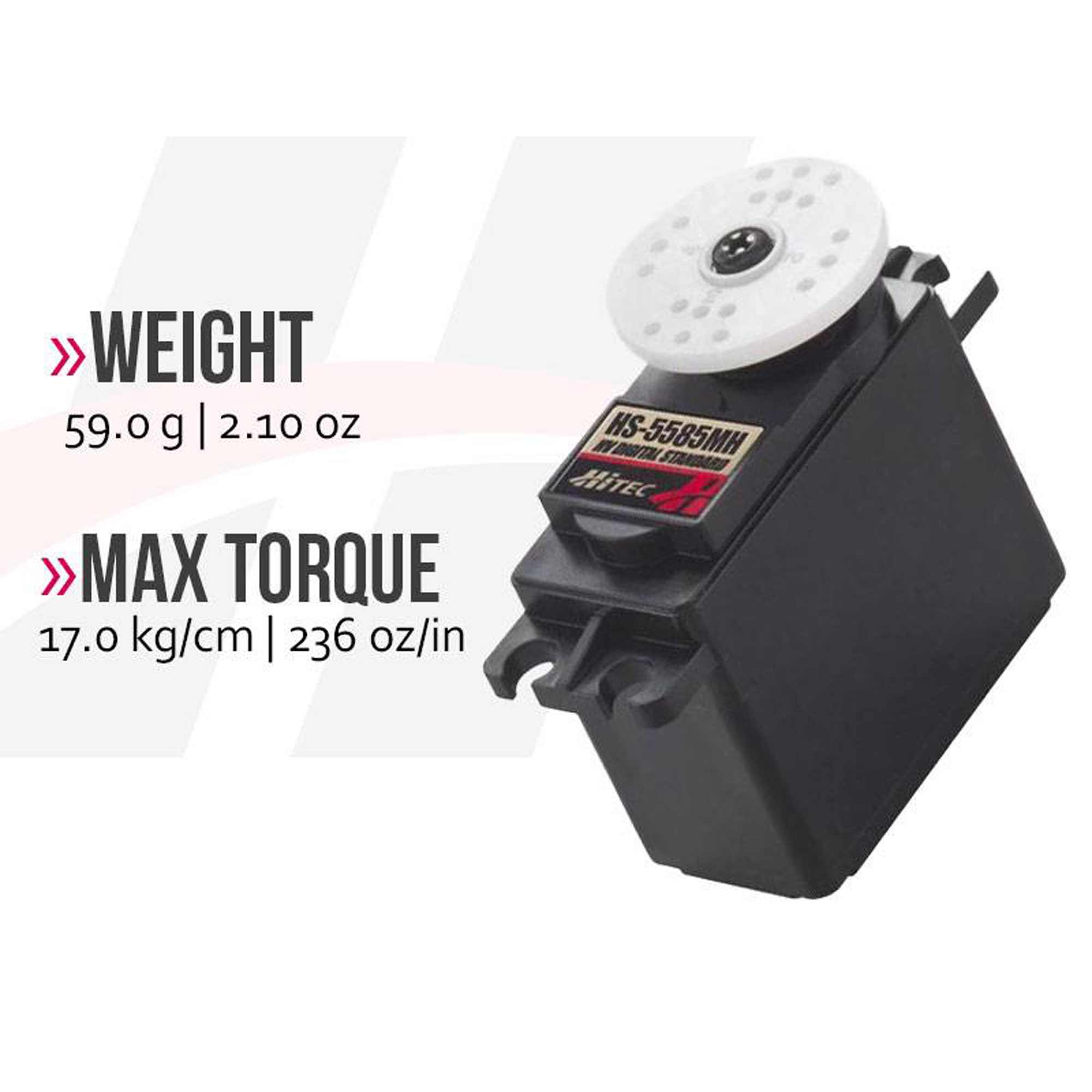

HS-5585MH Standard Digital HV High Torque Metal Gear Servo

Item No. HRC35585S
HS-5585MH Standard Digital HV High Torque Metal Gear Servo
Brand Logo
3.1 out of 5 Customer Rating

HS-5585MH Standard Digital HV High Torque Metal Gear Servo

Item No. HRC35585S
$72.99
Earn points on this item ⓘ
In Stock
Selected Store
The link to HS-5585MH Standard Digital HV High Torque Metal Gear Servo has been copied

Product Details

Key Features
  • Rated for 2S LiPo operation
  • Ideal for 1/10 scale monster trucks, 1/8 scale buggies and truggies, and high performance airplanes up to 35%
  • Heavy duty metal gears and dual ball bearings
  • Coreless motor
  • Speed: 0.17 sec/60° 0.14 sec/60°
  • Wire Length: 11.8" (30mm)
  • Wire Gauge: 25AWG
  • Operating Temperature Range: -4 to 140°F
  • Idle Current: 4mA
  • Stall Current: 2100mA @ 6.0V, 2700mA @ 7.2V
  • Potentionmeter Type: 4 slider 1M cycle
icon-box
In The Box
  • HS-5585MH Servo with 0.94" (24mm) Round Servo Horn
  • 1.8" (45mm) Round Servo Horn.
  • 2.3" (59mm) Double Sided Servo Arm
  • 1.1" (27mm) Single Sided Servo Arm
  • 1.6" (42mm) Four Point Horn
  • Mounting Hardware
  • Product Manual
HS-5585MH Standard Digital HV High Torque Metal Gear Servo
Quick Links
icon-pdf-download Manuals & Support

Overview

Increase your performance not your budget with the high voltage, digital HS-5585MH. This premium sport servo features a coreless motor, heavy-duty metal gears and dual ball bearings. Rated at 7.4 volts for 2S LiPo operation, it provides the durability and power your RC hobby demands. The HS-5585MH supplies your 1/10th monster trucks to 1/8th scale buggies and truggies and high performance airplanes up to 35 percent with outstanding strength and precision.

Product Specifications

Product Height 1.49" (38 mm)
Servo Type Digital
Product Length 1.57" (40 mm)
Maximum Servo Torque 194 oz-in (14 kg-cm) @ 6.0V; 236 oz-in (17 kg-cm) @ 7.4V
Product Width 0.78" (20 mm)
Max Servo Torque 200-349 oz-in
Product Weight 2.10oz (60g)
Servo Operating Voltage 6.0 - 7.4V (HV)
Bearing Dual
Bushing Or Bearing Bearing
Gear Type Metal
Maximum Servo Speed 0.17 sec/60 deg @ 6.0V; 0.14 sec/60 deg @ 7.4V
Programmable Yes
Servo Size Category Standard
