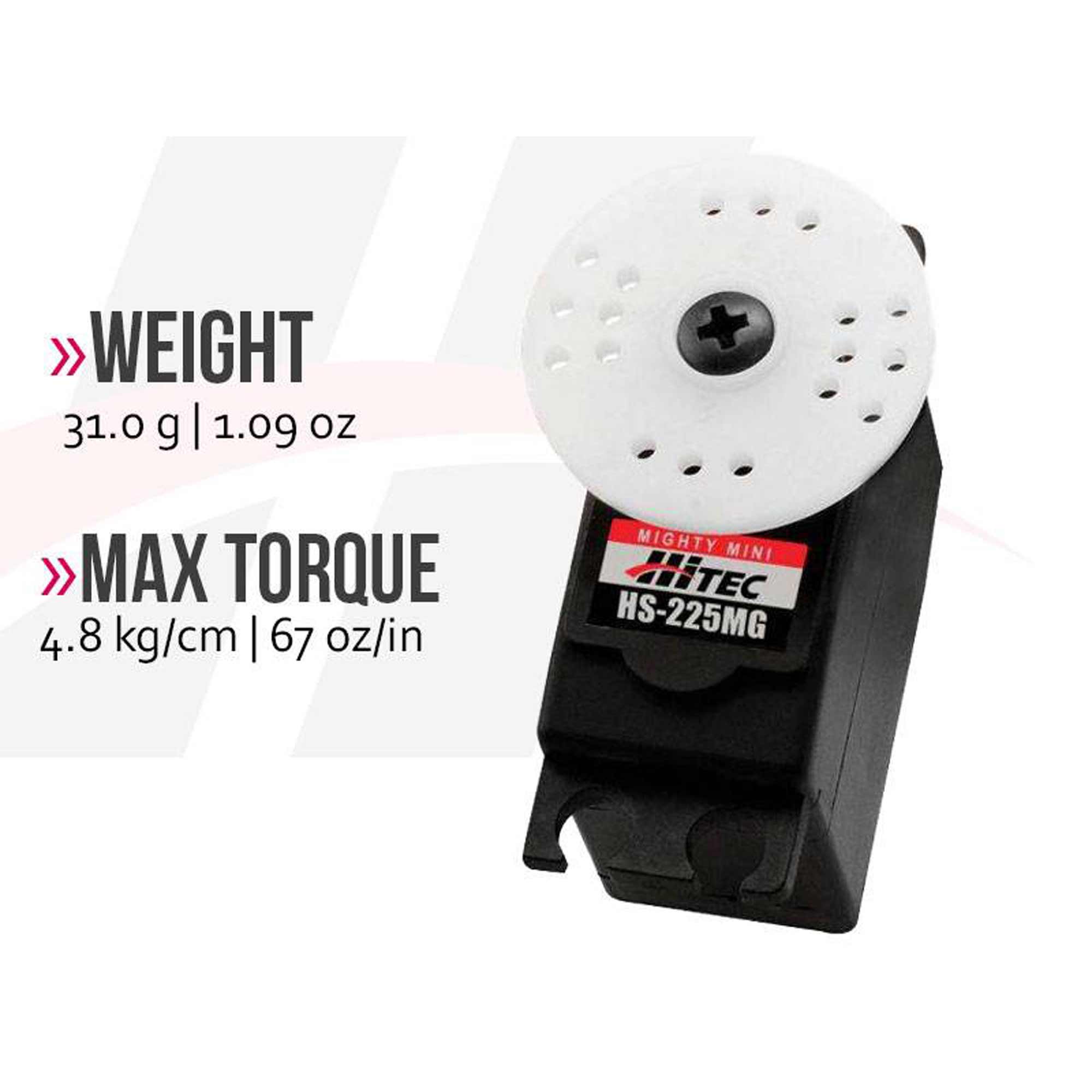

HS-225MG Mini Analog Metal Gear Servo

Item No. HRC32225S
HS-225MG Mini Analog Metal Gear Servo
HS-225MG Mini Analog Metal Gear Servo
HS-225MG Mini Analog Metal Gear Servo
HS-225MG Mini Analog Metal Gear Servo
Brand Logo
3.9 out of 5 Customer Rating

HS-225MG Mini Analog Metal Gear Servo

Item No. HRC32225S
$27.99
RC Club points earned on this item shown at checkout.
In Stock
Selected Store
The link to HS-225MG Mini Analog Metal Gear Servo has been copied

Product Details

The analog HS-225MG represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225MG high performance mini servo features a top ball bearing and is built with state-of-the-art SMT technology.
Key Features
  • Speed: @4.8V .14sec/60' / @6.0V .11sec/60'
  • Torque: @4.8V 54.15oz/in / @6.0V 66.65oz/in
  • Full Size Performance in a Mini Package
  • Durable Metal Gears
  • Top Ball Bearings
  • Perfect for Applications Requiring a Small, Lightweight, High Speed, High Torque Servo
icon-box
In The Box
  • HS-225MG Mini Analog Metal Gear Servo
HS-225MG Mini Analog Metal Gear Servo
Quick Links
icon-pdf-download Manuals & Support

Product Specifications

Maximum Servo Torque 54oz/in @ 4.8V, 67oz/in @ 6.0V
Current Draw Idle 8mA
Product Width 0.66" (17 mm)
Current Draw Stall 1,200 mA
Motor Type Brushed
Servo Operating Voltage 4.8 - 6.0V
Application Small Aircraft, Helicopters, Cars, Boats
Product Weight 1.09oz (31.0g)
Spline Count 24 - Tooth
Water-Resistant No
Connector Type Universal
Maximum Servo Speed 0.14 sec/60 deg @ 4.8V, 0.11 sec/60 deg @ 6.0V
Product Length 1.27" (32 mm)
Programmable No
Servo Size Category Mini
Bearing Top Ball Bearing
Bushing Or Bearing Bearing
Gear Type Metal
Wire Gauge 25 AWG
Deadband >5µs
Input Voltage 4.8V ~ 6.0V
Product Height 1.22" (31 mm)
Servo Type Analog
