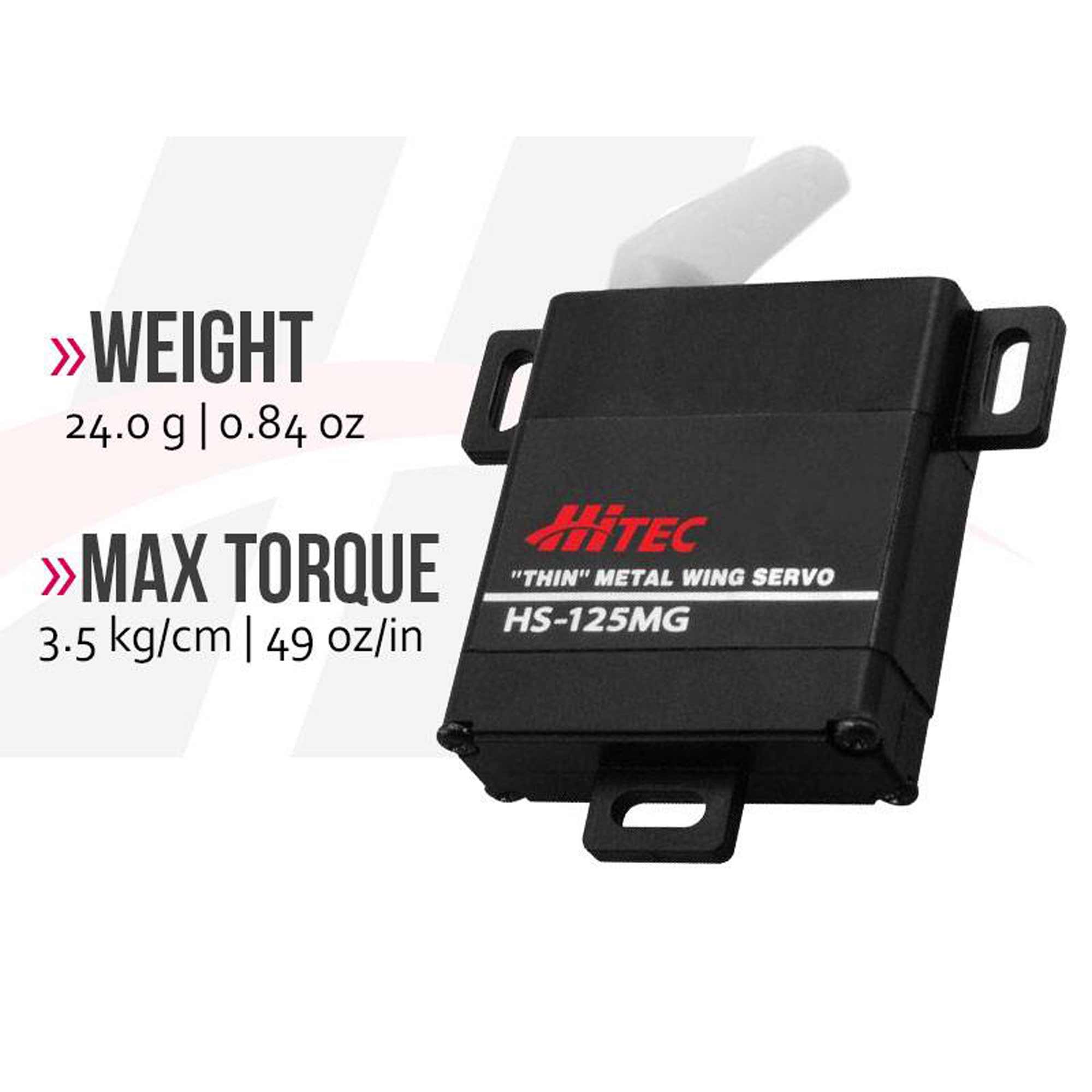

HS-125MG Thin Standard Analog Metal Gear Wing Servo
HS-125MG Thin Standard Analog Metal Gear Wing Servo
Selected Store
Product Details
Key Features
- Dual ball bearings
- Indirect drive potentiometer for long life
- Connector is compatible with all modern receivers and wiring accessories
In The Box
- One Hitec HS-125 Thin Metal Gear Wing Servo
- (2) Pieces of Double Sided Mounting Tape
- (2) One arm nylon servo arms
- (1) 2mm x 8mm servo arm mounting screw
- (3) 2mm x 5mm phillips screws
- (1) 3mm star washer
Needed to Complete
- Installing on model, attaching linkages, and connecting to receiver.
Quick Links
Manuals & SupportOverview
The analog HS-125MG is truly a super thin servo measuring 1.2” x 0.4” x 1.3”. Featuring Hitec’s MP Gear, the HS-125MG is very durable, and a perfect fit in the slim wings of today’s high performance gliders.
Detailed Information
Product Specifications
| Current Draw Idle | 7.4mA @ 4.8V; 7.7mA @ 6.0V |
| Max Servo Torque | 40-99 oz-in |
| Deadband | 5 microsecond |
| Servo Type | Analog |
| Motor Type | 3-pole |
| Servo Operating Voltage | 4.8 - 6.0V |
| Programmable | No |
| Servo Size Category | Thin |
| Maximum Servo Torque | 41.7 oz-in (3.0kg-cm) @ 4.8V; 48.6 oz-in (3.5kg-cm) @ 6V |
| Bearing | Dual |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Maximum Servo Speed | 0.17 sec/60 deg @ 4.8V; 0.13 sec/60 deg @ 6V at no load |
