High Speed/Torque Competition Servo 25T

Item No. SPMSS6495
High Speed/Torque Competition Servo 25T
High Speed/Torque Competition Servo 25T
High Speed/Torque Competition Servo 25T
High Speed/Torque Competition Servo 25T
High Speed/Torque Competition Servo 25T
High Speed/Torque Competition Servo 25T
High Speed/Torque Competition Servo 25T
Brand Logo
4.3 out of 5 Customer Rating

High Speed/Torque Competition Servo 25T

Item No. SPMSS6495
$179.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store
The link to High Speed/Torque Competition Servo 25T has been copied

Product Details

High Speed and High torque servo designed to give all the holding strength you need for high performance in your race vehicle or crawler in all types of conditions.
icon-box
In The Box

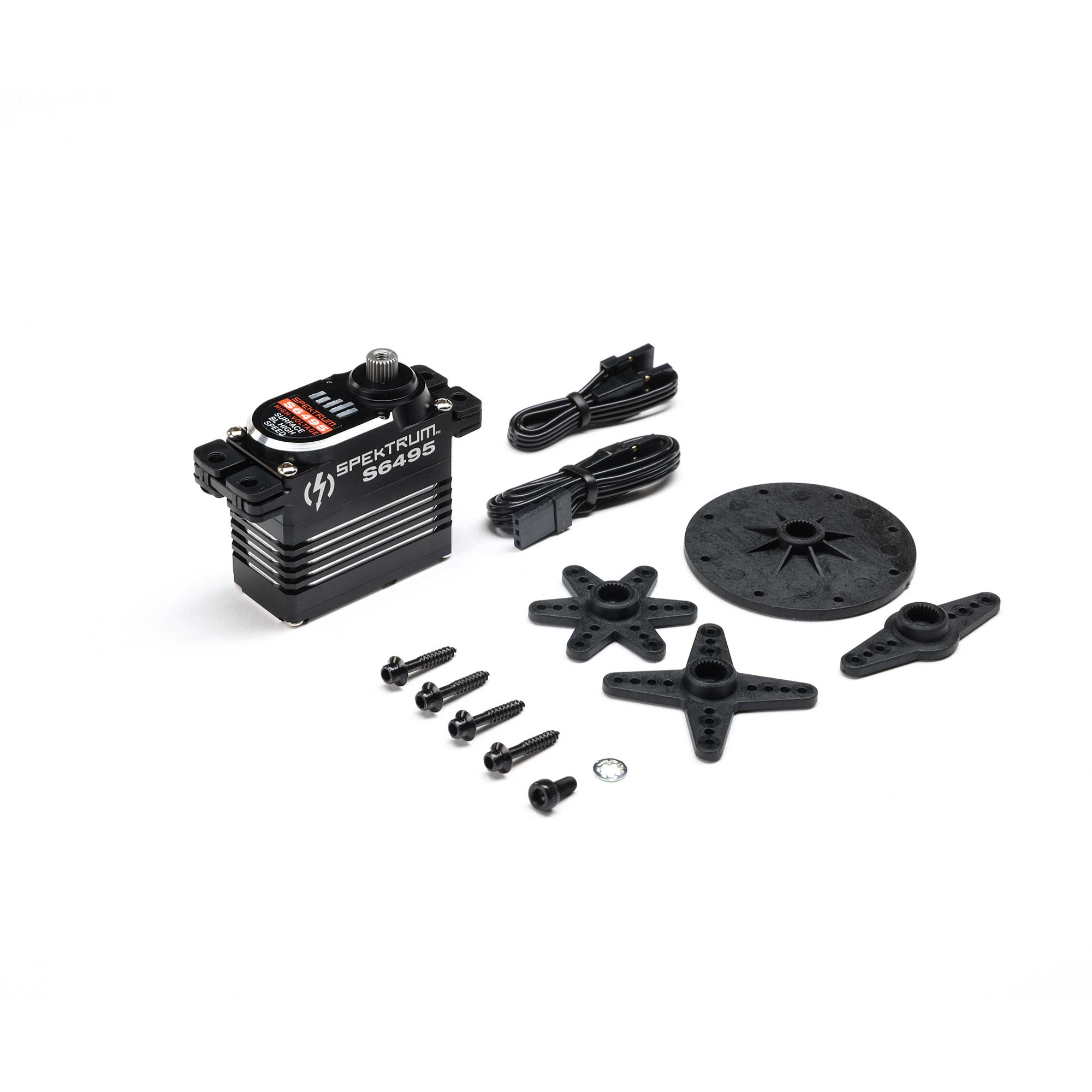

  • (1) High Speed/Torque Competition Servo 25T
High Speed/Torque Competition Servo 25T
Quick Links
icon-pdf-download Manuals & Support

Spektrum High Speed/Torque Competition Servo 25T Introduction

Spektrum™ High-Voltage Brushless Servos deliver premium power, precision, and performance. Now with 25T spline, the S6495 is compatible with 8.4V input and boasts a durable, all-aluminum case that helps dissipate heat. Powered by a class-leading brushless powertrain, the S6495 also offers superior protection, such as soft start, over current protection, and advanced failsafes. Its metal gear train has been engineered for tight mesh, low wear, and smooth operation. Featuring blindingly fast 0.062 sec speeds, the S6495 servo is a top choice for serious 1/8th scale off-road racers. Equally capable of high-performance operation in crawling and bashing applications that demand fast reactions, maximum torque, and holding power. The convenience of a removable servo lead lets you select different lengths for different vehicle applications.

Spektrum High Speed/Torque Competition Servo 25T Features

  • 25T Output Spline
  • Ultra-fast transit speed (0.062sec at 8.4V)
  • Impressive torque (30kg-cm / 416oz-in at 8.4V)
  • High Voltage (HV) Capable (6.0V-8.4V)
  • Sleek black and silver anodized metal case
  • Brushless power and reliability
  • Water Resistant
  • Hardened steel gears
  • Precision engineered gear train for tight and low wear mesh
  • Removable standard size servo connector for easy lead swaps
  • Soft-Start puts less strain on steering components during start up
  • Advanced failsafe and protections
  • Engineered to excel in 1/8th Scale Racers, RC Crawlers and Scalers

Product Specifications

Application 1/8th Scale Racers, RC Crawlers and Scalers
Bearing Dual
Gear Type Metal
Maximum Servo Speed 8.4V: .062 sec 60 degree
Product Height 1.49" (38 mm)
Product Length 1.57" (40 mm)
Product Weight 2.54 oz
Product Width 0.79" (20 mm)
Servo Operating Voltage 6.0 - 8.4V (HV)
Servo Size Category Standard
Servo Type Digital
Spline Count 25 - Tooth
Torque 8.4V: 416.4 oz-in
Water-Resistant Yes
