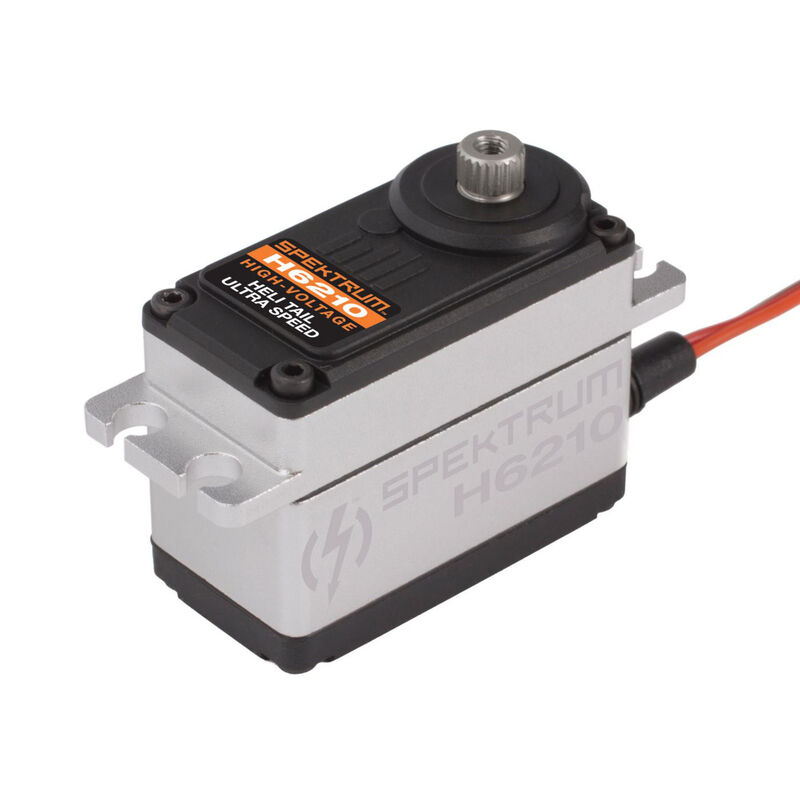

H6210 Standard Digital HV Ultra Speed Metal Gear Heli Tail Servo

Item No. SPMSH6210
Discontinued
Brand Logo
5 out of 5 Customer Rating

H6210 Standard Digital HV Ultra Speed Metal Gear Heli Tail Servo

Item No. SPMSH6210
This Item is No Longer Available
Selected Store
H6360 Standard Digital HV Brushless Mid Torque Ultra Speed Heli Tail Servo
H6360 Standard Digital HV Brushless Mid Torque Ultra Speed Heli Tail Servo
SPMSH6360
View Alternate Product Details

Product Details

Key Features

  • Quick release for servo leads simplify wiring and maintenance
  • Designed for tail rotor control on RC helicopters
  • Quick release servo leads
  • HV compatible (up to 8.4V)
  • 0.03 sec/60° transit speed 8.4V
  • Metal gears
  • Aluminum center section case
  • Frequency: 333Hz
  • Center Position: 1520µs

Overview

This is a high voltage, digital, high speed tail servo for 550 to 700 size helis. These servos allow for clean wiring and are purpose-built for tail control on high performance RC helicopters.

Product Specifications

Bearing Dual
Bushing Or Bearing Bearing
Gear Type Metal
Maximum Servo Torque 79.0 oz-in (5.69 kg-cm) @ 6.0V; 107 oz-in (7.7 kg-cm) @ 8.4V
Product Height 1.25" (31.8mm)
Product Length 1.61" (40.9mm)
Product Weight 2.20 oz (62.4 g)
Product Width 0.82" (20.9mm)
Programmable No
Servo Operating Voltage 4.8 - 8.4V (HV)
Servo Size Category Standard
Servo Type Digital
