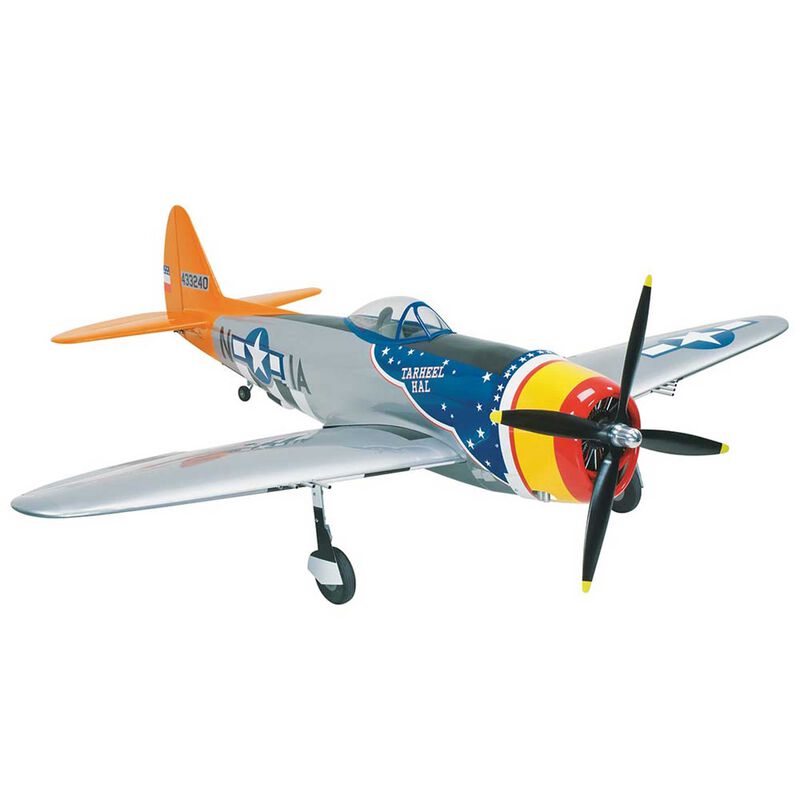

Giant P-47D Thunderbolt 2.6-4.0 Gas ARF, 85"

Item No. TOPA0703
Brand Logo
3.1 out of 5 Customer Rating

Giant P-47D Thunderbolt 2.6-4.0 Gas ARF, 85"

Item No. TOPA0703
This Item is No Longer Available
Selected Store

Product Details


With the range to penetrate deep into enemy territory, the P-47 "Jug" became one of the Allies' greatest assets during WWII. Impressive, IMAA-legal dimensions give Top Flite's ARF version plenty of room for striking sport-scale realism, along with its easy visibility and flight. Get a piece of the action for yourself. Make this your first – or next – giant-scale warbird!


  • Construction: Plywood and built-up balsa sheeting
  • Wings: One-piece with wing joiner
  • Covering: Top Flite MonoKote
  • Cowl: Painted fiberglass
  • Landing Gear: Heavy duty fixed prebent wire
  • Wheels: Foam, two main and one tailwheel
  • Flap Control: Dual servo
  • Aileron Control: Dual servo
  • Cockpit: Plastic kit molded in white with instrument panel, left and right control panels, seat, floor and control stick
  • Radial Engine Replica: Molded plastic
  • Engine Mount: Plywood firewall
  • Stabilizer: Aluminum tubes automatically align stab halves and reduce workshop time
  • Building Time: Ready to fly in 15-20 hours
  • Spinner Hub: Two-piece aluminum
  • Hardware: Full set, IMAA legal
Needed to Complete
  • Radio: 5 - 7 channel
  • Servos: 50 oz-in torque, 2 each for elevators, ailerons and flaps, 1 each rudder and throttle Micro, 1 if retracts are installed 1 standard servo for optional choke
  • Four 6" (152mm) Servo Extensions: Throttle, optional choke, ailerons and flaps
  • One 24" (609mm) Servo Extension: Ailerons
  • Four 6" (152mm) Y-Harness: Elevator, rudder/steering, ailerons and flaps
  • Engine: 2.6 - 4.0 cu in (43 - 65cc) gasoline powered
  • Building and Field Equipment: Tools, propeller, fuel filter, foam rubber padding
What's in the box?
  • Pre-built and covered wings, fuselage and tail assemblies, decals, landing gear, wheels, hardware, spinner hub, hardware package fuel tank, replica radial engine, cockpit kit and photo-illustrated instructions


  • Wingspan: 85" (2160mm)
  • Wing Area: 1329 in² (85.7 dm²)
  • Weight: 19.5-21.5 lb (8.84-9.75 kg)
  • Wing Loading: 34-37 oz/in² (104-113 g/dm²)
  • Length: 75" (1905mm)
  • Center of Gravity: 6-3/8" (162mm) back from the leading edge of the wing at the fuselage
  • Control Throws: Low Rate   /   High Rate
  • Elevator: Up & Down 1/2" (12.7mm) 8° 3/4" (19.1mm) 12°
  • Rudder: Right to Left 1-3/8" (35mm) 16° 1-7/8 (47mm) 22°
  • Ailerons: Up & Down 1/2" (12.7mm) 10° 3/4" (19.1mm) 15°
  • Flaps: 2-3/8" (60mm) 34° down

Product Specifications

Completion Level Almost Ready-To-Fly
Flaps Yes
Material Balsa
Product Length 75 in (1905mm)
Power Type Gas
Wingspan 85 in (2160mm)
