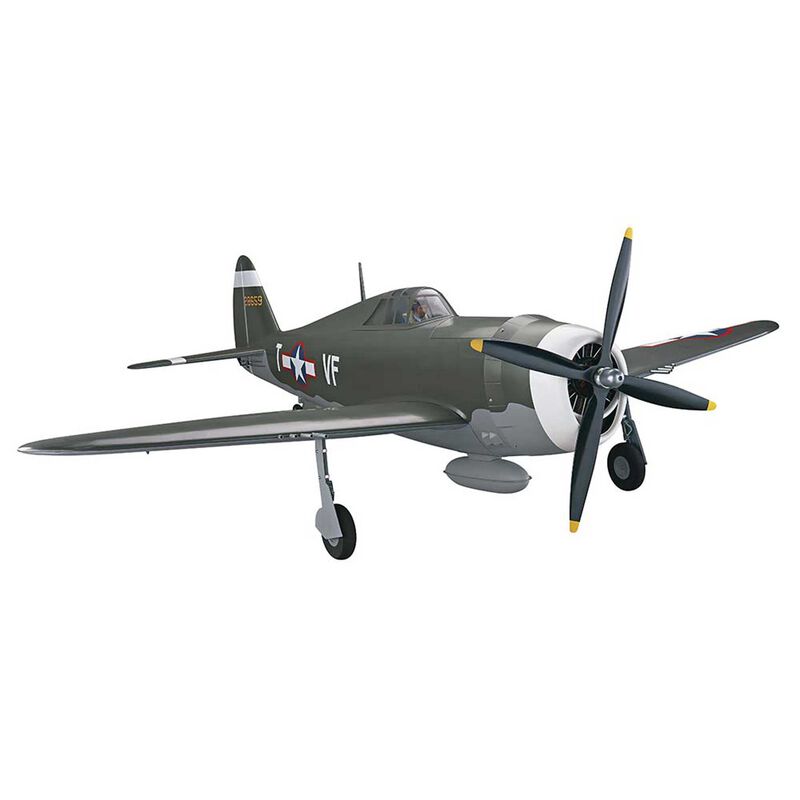

Giant P-47D Razorback 50-61cc Gas/EP ARF, 85"

Item No. TOPA0714
This Item is No Longer Available
Selected Store

Product Details

Quick Links
icon-pdf-download Manuals & Support

Overview

Effective as an escort fighter, interceptor, fighter bomber, and ground attack aircraft—the P-47 was one of the most versatile aircraft of the Second World War. Although the bubble canopies of later models would become very popular with the USAAC and later airshow crowds, it was the original models with the 'razorback' canopies that really did the heavy lifting. Heavy armor, massive firepower, and the option to install rockets and bombs made the P-47 a lethal threat to anything moving. Get yours and make a big impression on the ground and in the air today.

Features

  • Construction: Built-up and sheeted balsa and ply
  • Wings: One-piece, plywood wing joiner, prehinged flaps for scale realism
  • Aileron Control: Dual servo
  • Cowl: Painted fiberglass
  • Covering: Top Flite MonoKote
  • Canopy: Clear with painted-on frame lines, recessed instrument detail, molded instrument panel, side panels, floor and seat Razorback turtle deck and canopy design for scale warbird looks **pilot shown in photos is NOT included**
  • Wheels: Foam, Main 5" (127mm), tailwheel 1-3/4" (44mm) diameter
  • Radial Engine Detail: Molded plastic, black in color (non-functional)
  • Fuel Tank: 6.3 x 3.1 x 2.4" (160 x 80 x 61mm), rectangular, approximately 24 oz (720cc)
  • Propeller Nut: Aluminum with polished finish 1.9" (48mm) diameter at base
  • Hatch: Quick release, attaches with magnets, covered in MonoKote
Needed to Complete
  • Radio: 6+channel with 11-12 servos (2-elevator, 1-rudder, 2-ailerons, 2-flaps, 1-tail wheel steering, 1-throttle, 1-retract, 1-optional choke)
  • 6" (152mm) Y-Harness: Four
  • 6" (152mm) Servo Extension: Four
  • 12" (35mm) Servo Extension: Three
  • 24" (610mm) Servo Extension: Three
  • Heavy Duty Switch Harness: Two
  • Charge Receptacle: Two
  • For Gasoline Power-
  • Engine: 50-61 cc gasoline engine (stock muffler supplied with the DLE-61 engine fits inside the cowl)
  • Ignition Battery: 6.6V, at least 1100mAh
  • For Electric Power-
  • Motor: 80-85-160kV, outrunner brushless motor
  • ESC: 160A brushless
  • Batteries: Two 6S 5000mAh LiPo
  • Battery Charger: Compatible with selected LiPo batteries, LiPo charging bag
  • Receiver Battery: At least 1000mAh
  • Retracts: Robart pneumatic or electric
  • Propeller depending on glow or electric power, building and field equipment
What's in the box?
  • (1) ARF Giant Scale P-47 Razorback Airplane with Canopy, Prop Nut, Wheels, Molded Radial Engine, Antenna, Fiberglass Cowl and Wheel Doors, Dummy Antenna, Metal Gun Barrels, Decal Sheet, and two Aluminum Stabilizer Tubes
  • (1) User Manual

Specifications

  • Wingspan: 85" (2,160mm)
  • Wing Area: 1329 in² (85.7 dm²)
  • Wing Loading: 34-37 oz/ft² (104-113 g/dm²)
  • Length: 75" (1905mm)
  • Center of Gravity (CG): 6-3/8" (162mm) back from the leading edge of the wing measured at the fuselage sides
  • Control Throws: High Rate   /   Low Rate
  • Elevator, up/down: 3/4" (19.1mm) 12° 1/2" (12.7mm) 8°
  • Rudder, right/left: 1-7/8" (47mm) 22° 1-3/8" (35mm) 16°
  • Ailerons, up/down: 3/4" (19.1mm) 15° 1/2" (12.7mm) 10°
  • Flaps, down: 2-3/8" (60mm) 34°

Product Specifications

Completion Level Almost Ready-To-Fly
Flaps Yes
Material Balsa
Product Length 75 in (1905mm)
Wingspan 85 in (2,160mm)
