Product Details


Based on the Blade Fusion 480 and stretch kit, the Fusion 550 Quick Build Kit offers a perfect fusion of convenience and performance with the included motor and blades.
Key Features
  • Based on the extremely popular Fusion 480 and stretch kit for a perfect fusion of convenience and performance
  • Quick Build Kit with factory-finished assemblies so it can be ready to fly in less than half the time of typical kits
  • Includes the longer boom, belt, plus carbon fiber 550mm main rotor and 95mm tail rotor blades
  • Includes a 4320-1180Kv brushless outrunner motor that delivers incredible torque and power
  • This Super Combo also includes top-of-the-line Spektrum components
icon-box
In The Box
  • (1) Blade Fusion 550 Helicopter Quick Build Kit
  • (1) Spektrum Avian 4320-1180Kv 10-Pole Brushless Outrunner Motor (included)
  • (1) Spektrum Avian 130 Amp Brushless Smart ESC for 3S–6S with IC5 (included)
  • (3) Spektrum H6350 Ultra-Torque High-Speed Heli Cyclic HV Brushless Servos (included)
  • (1) Spektrum H6360 Mid-Torque Ultra-Speed Heli Tail HV Brushless Servo (included)
  • (1) Spektrum FC6250HX Helicopter Flybarless Control System (included)
  • (1) Spektrum DSMX Remote Receiver (included)
  • (1) Blade 550mm Carbon Fiber Main Rotor Blade Set (included)
  • (1) Blade 95mm Carbon Fiber Tail Rotor Blade Set (included)
  • (1) Fusion 550 Helicopter Product Manual
icon-how-to
Needed to Complete
  • (1) Full-range 6+ channel Spektrum DSMX®/DSM2® compatible computer transmitter
  • (1) 6S 22.2V 4000–5000mAh 30+C LiPo with EC5 or IC5 Connector
  • (1) Compatible LiPo Charger
Fusion 550 Quick Build Kit Super Combo

Introduction

The Blade® Fusion 550 blurs the lines between convenience and capabilities, plus quality and value. The strong and lightweight carbon fiber and aluminum airframe is ready to pair with the included carbon fiber 550mm main and 95mm tail rotor blades, plus a more powerful motor and common 6S 4000–5000mAh batteries, to deliver exhilarating performance with power to spare. Now you can make the dream of owning a larger-sized helicopter with cutting-edge capabilities, along with incredible durability and reliability, a reality!

Features

  • Based on the extremely popular Fusion 480 and stretch kit for a perfect fusion of convenience and performance
  • Quick Build Kit with factory-finished assemblies so it can be ready to fly in less than half the time of typical kits
  • Includes the longer boom, belt, plus carbon fiber 550mm main rotor and 95mm tail rotor blades
  • Lightweight yet extremely stiff and durable carbon fiber and aluminum airframe design
  • High-strength steel 10mm main shaft and 8mm spindle with metal head components
  • Efficient helical main gear paired with a steel pinion for quiet and reliable performance
  • Includes a 4320-1180Kv brushless outrunner motor that delivers incredible torque and power
  • Compatible with popular and common 6S 4000–5000mAh 30+C LiPo batteries
  • Oversized 25mm diameter tail boom eliminates the need for boom supports
  • 6mm wide belt for the driven tail featuring adjustable tension
  • High-strength steel 5mm tail shaft paired with a metal bell crank and grips
  • Carbon fiber and aluminum tail case with a metal tail drive pulley
  • 5mm diameter carbon fiber tail pushrod for precise tail control
  • Fits standard-sized servos for cyclic and tail control
  • Exclusive Optimized Servo Geometry for precise and responsive control
  • This Super Combo also includes the following top-of-the-line Spektrum components:
    • (3) Spektrum H6350 Ultra-Torque High-Speed Heli Cyclic HV Brushless Servos
    • (1) Spektrum H6360 Mid-Torque Ultra-Speed Heli Tail HV Brushless Servo
    • (1) Spektrum Avian 130 Amp Brushless Smart ESC for 3S–6S with IC5
    • (1) Spektrum FC6250HX Helicopter Flybarless Control System
    • (1) Spektrum DSMX Remote Receiver

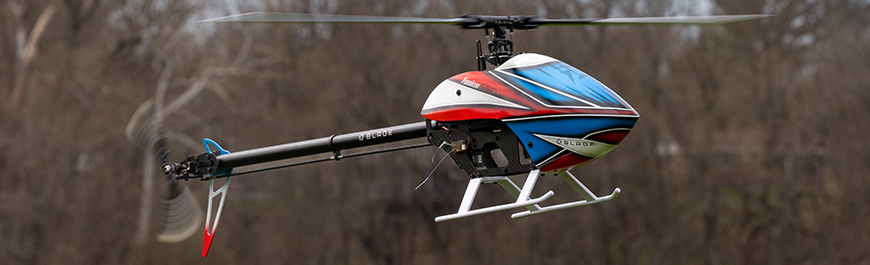

UNMATCHED FOR UNLIMITED PERFORMANCE

Built on nearly two decades of Blade helicopter engineering and development experience, and based on the extremely popular Fusion 480 and stretch kit, the Blade Fusion 550 packs a variety of high-quality and high-performance features into a rugged and reliable helicopter that's ready to rip up the skies. The lightweight yet extremely durable carbon fiber and aluminum airframe design features many factory-finished assemblies so it assembles quickly – in less than half the time of typical kits – plus it's easy to maintain and repair. The Optimized Servo Geometry provides precise and responsive control from hovering to sport flying, and from basic to all-out 3D aerobatics. The quiet helical main gear is driven by the included 4320-1180Kv brushless outrunner motor that delivers incredible torque and performance with popular 6S 4000–5000mAh LiPo batteries. A belt-driven tail assembly featuring carbon fiber and aluminum construction ensures locked-in tail performance on every flight. So whether you're an intermediate pilot and this is your first-ever kit-built model, or you're a world-class 3D pilot, the Fusion 550 delivers an unmatched combination of convenience, capabilities, quality, and value!

Video Overview

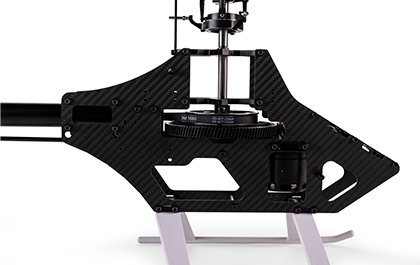

Frame Features
Frame Features

  • All-metal and 2mm thick carbon fiber construction
  • Aluminum battery tray with two oversized battery straps
  • Aluminum bearing and servo mounting blocks with Optimized Servo Geometry
  • White molded landing gear plus a painted fiberglass canopy for excellent visibility

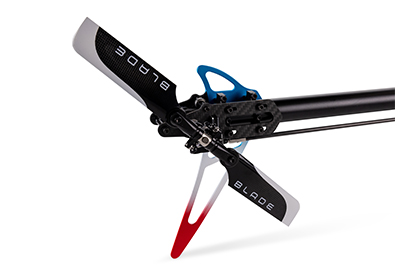

Tail Features
Tail Features

  • Oversized 25mm diameter tail boom eliminates the need for boom supports
  • 2.5mm thick carbon fiber tail box and painted vertical fin for improved visibility
  • 6mm wide drive belt with adjustable tension drives a large aluminum pulley
  • 5mm high-strength steel tail shaft with metal bell crank, hub, and grips
  • 5mm carbon fiber tail pushrod with ball links for precise control
  • Hidden tail servo for added protection and a sleek look
  • Includes 95mm carbon fiber tail rotor blades

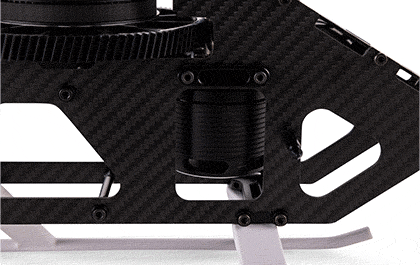

Mechanics Features
Mechanics Features

  • Includes a 4320-1180Kv outrunner motor compatible with 6S batteries
  • Efficient helical main gear paired with a steel pinion to reduce noise
  • Black anodized aluminum swashplate and other components
  • High-strength steel 10mm main shaft and 8mm spindle
  • Aluminum blade grips with zero pitch indicator marks
  • Includes 550mm carbon fiber main rotor blades

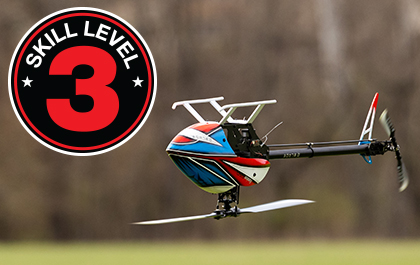

Skill Level 3 – Experience Required
Skill Level 3 – Experience Required

Skill Level 3 aircraft, like this one, are suitable for RC pilots who already have some experience with and the skills to assemble, set up and fly similar class models. And although this is one of the easiest-to-assemble helicopter kits, which makes it a perfect first-ever kit-built model for many pilots, you should have the experience and skills necessary to successfully set up and fly other helicopter models like the Blade 330 and Fusion 360 before attempting to fly the Fusion 550.



Nearly Everything You Need
Nearly Everything You Need

This money-saving Super Combo includes the Fusion 550 Quick Build Kit with motor and blades, plus top-of-the-line Spektrum components including servos, a flight controller, a receiver, and a Smart ESC. Just add your favorite Spektrum 6+ channel computer transmitter and 6S 4000–5000mAh battery, assemble the heli, and fly!



Product Specifications

Approximate Assembly Time 5-7 Hours
Battery Sold Separately
Canopy/Body Material Fiberglass
Channels 6
Charger Sold Separately
Completion Level Kit
Gear Ratio 9.33
Main Blade Material Carbon Fiber
Main Frame Material Carbon Fiber
Main Motor Type Brushless
Main Rotor Blade Length 21.65" (550 mm)
Main Rotor Diameter 49.01" (1245 mm)
Main Rotor Head Type Collective Pitch Flybarless
Motor Size 4320-1180Kv 10 Pole
Pinion 12T
Power Type Electric
Product Height 12.59" (320 mm)
Product Length 42.52" (1080 mm)
Product Weight 6.72Lb (3050g) with Recommended Battery
Product Width 7.4" (188 mm)
Receiver Included
Servos Included
Skill Level Level 3
Speed Control Included
Swashplate Type 120 Degree CCPM
Tail Blade Material Carbon Fiber
Tail Drive Belt Drive
Tail Rotor Blade Length 3.74" (95 mm)
Tail Rotor Diameter 9.84" (250 mm)
Technology Smart
