Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo

Item No. SPMXSEM0502
New
Brand Logo
3.7 out of 5 Customer Rating

Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo

Item No. SPMXSEM0502
$79.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

The Spektrum™ Firma™ 30-amp Sensored Brushless ESC and Motor 2-in-1 Combo is waterproof* and designed specifically for the Axial UTB18 Capra 4WS, 1/18 4WD. This ESC and motor combo will take your excitement to the next level!
icon-box
In The Box
  • (1) Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo
Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo

Overview

The Spektrum™ Firma™ 30-amp Sensored Brushless ESC and Motor 2-in-1 Combo is waterproof* and designed specifically for the Axial UTB18 Capra 4WS, 1/18 4WD. It features a high-precision magnetic encoder and rotor position sensor that provides an excellent one-to-one control feel when driving at any speed and at any angle. This advancement in sensored motor control allows the ESC to match the throttle input to the motor’s RPM with unmatched precision.

This ESC and motor 2-in-1 combo is an excellent choice to upgrade your Axial UTB18 Capra 4WS, 1/18 4WD running 2S or 3S LiPo power. This combo is the perfect system whether you are adventuring on trails or entering in competition.

*See instructions for details.

Features

  • Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection

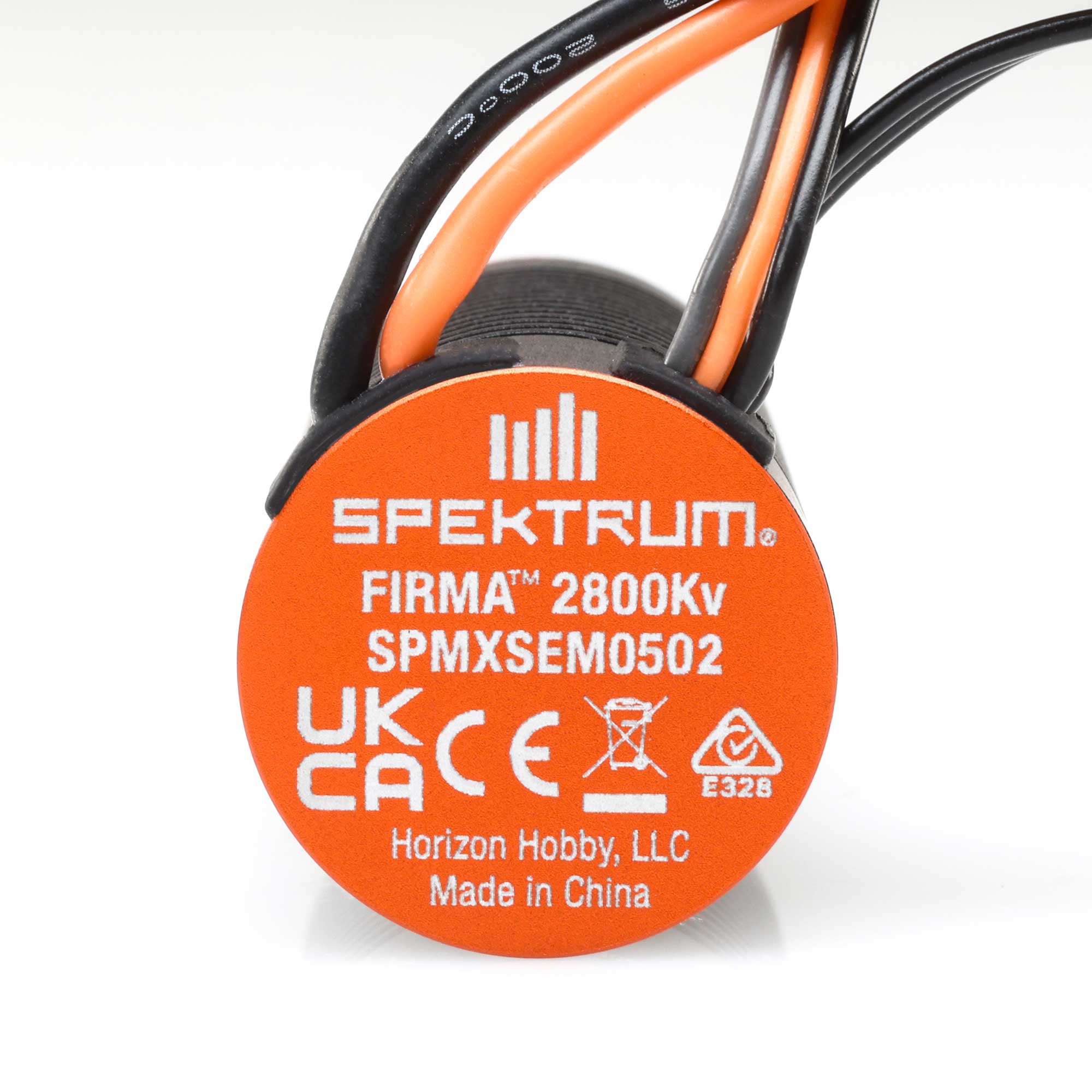

  • Includes high-performance Spektrum Firma 2800Kv Sensored Brushless Motor
  • Waterproof* (See instructions for details)
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Aluminum construction helps with heat dissipation
  • Adjustable high-power BEC

Product Specifications

Application 1/16-1/18 Rock Crawler
BEC Continous Current 4A
BEC Voltage 6V/7.4V Adjustable
Connector Type IC2
LiPo Compatibility 2S, 3S
Maximum Continuous Current 30A /80A
Motor Size Motor Diameter: 24 mm Length: 45.8 mm
Motor Type Brushless
Number of Cells 2-3S LiPo, 6-9 Cells NiMH
Number of Poles 4
Product Application Crawling
Product Height 2" (51 mm)
Product Length 4.2" (107 mm)
Product Weight 2.7oz
Product Width 3" (76 mm)
RPM/Volt (Kv) 2800Kv
Sensored Yes
Shaft Diameter 2.3" (58 mm)
Shaft Length 0.54" (13.7 mm)
