Firma Brushless Motor / ESC 2-in-1 Combo, 5200Kv

Item No. SPMXSEM0500
$79.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store
The link to Firma Brushless Motor / ESC 2-in-1 Combo, 5200Kv has been copied

Product Details

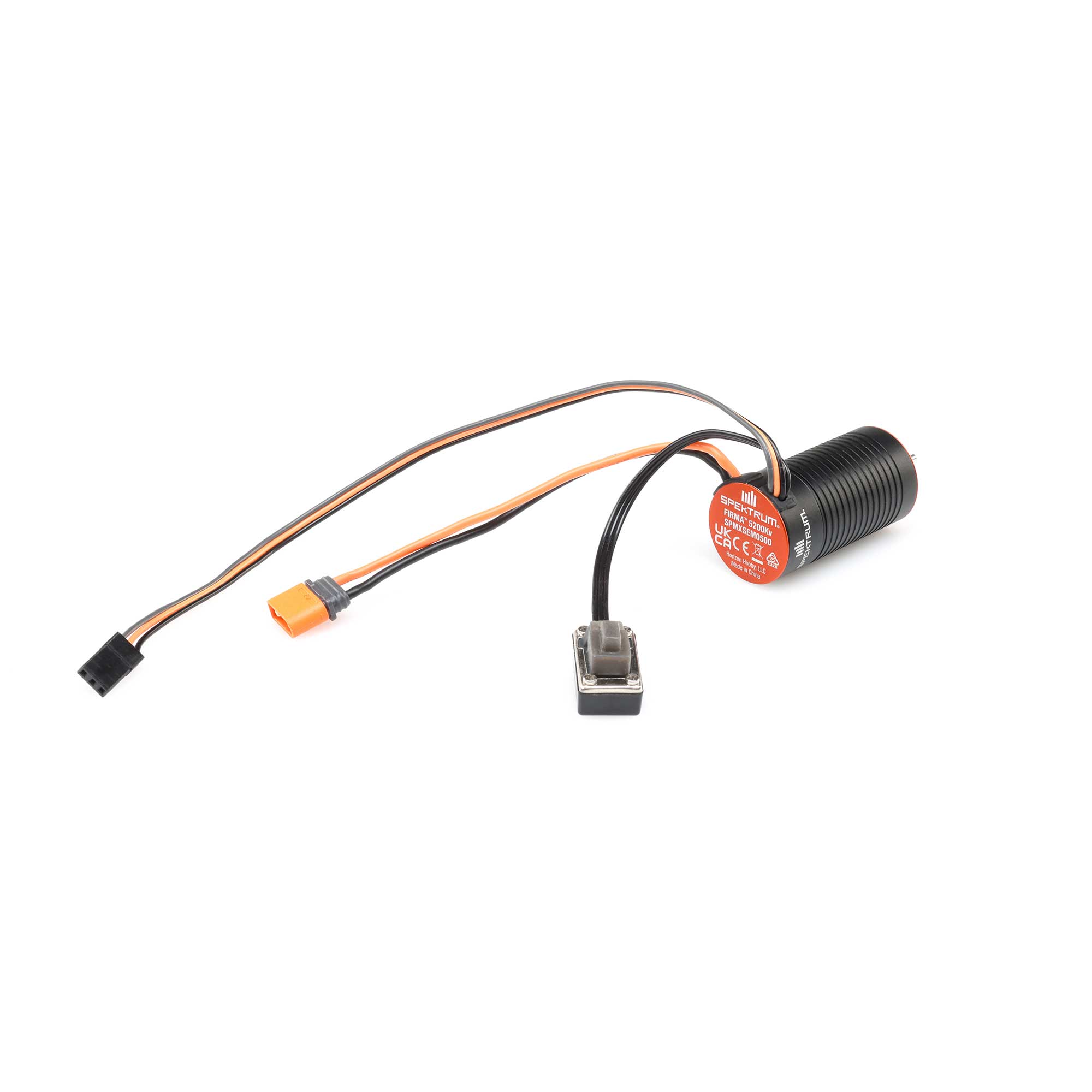

The Spektrum™ Firma™ 30-amp Sensored Brushless ESC and motor 2-in-1 combo is waterproof and designed specifically for the 1/18 Losi Mini LMT 4X4 Monster Truck RTR. This ESC and motor combo will take your Mini LMT excitement to the next level!
icon-box
In The Box
  • (1) Firma Brushless Motor / ESC 2-in-1 Combo, 5200Kv
  • (1) Product Manual
icon-how-to
Needed to Complete
  • (1) Pinion Gear
Firma Brushless Motor / ESC 2-in-1 Combo, 5200Kv
Quick Links
icon-pdf-download Manuals & Support

Spektrum Firma 5200Kv Motor and ESC Combo Overview

The Spektrum™ Firma™ 30-amp Sensored Brushless ESC and motor 2-in-1 combo is waterproof and designed specifically for the 1/18 Losi Mini LMT 4X4 Monster Truck RTR. It features a high-precision magnetic encoder and rotor position sensor that provides an excellent one to one control feel when driving at any speed and at any angle. This advancement in sensored motor control allows the ESC to match the throttle input to the motor's RPM with unmatched precision.

This ESC and motor 2-in-1 Combo is an excellent choice to complete your 1/18 Losi Mini LMT 4X4 Monster Truck running 2S or 3S LiPo power. Whether you are bashing or competing with your Mini LMT, this combo is the perfect system.

Spektrum Firma 5200Kv Motor and ESC Combo Features

  • Fast, powerful 32-bit ARM M4 processor
  • Waterproof
  • Easy programming
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
  • Includes high performance and durability Spektrum Firma 5200kV Sensored Brushless motor
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Aluminum construction helps with heat dissipation
  • Adjustable high-power BEC
  • High heat-resistant IC2™ connectors, backwards compatible with EC2™ connectors

Product Specifications

Application Losi Mini LMT
Auto Cutoff Yes
BEC Yes
BEC Continous Current 2A
BEC Type Switching
Connector Type IC2
Forward Yes
Input Voltage 2S LiPo
LiPo Compatibility 2S, 3S
Maximum Continuous Current 30A
Motor Type Brushless
Number of Cells 2-3S LiPo, 6-9 Cells NiMH
Number of Poles 4
Outer Diameter 0.94" (24 mm)
Output 6V/7.4V Adjustable, Continuous Current 2A
Overload Protection Yes
Product Length 1.8" (46 mm)
Product Weight 2.7oz.
RPM/Volt (Kv) 5200Kv
Shaft Diameter 0.07" (2 mm)
Shaft Length 0.53" (13 mm)
