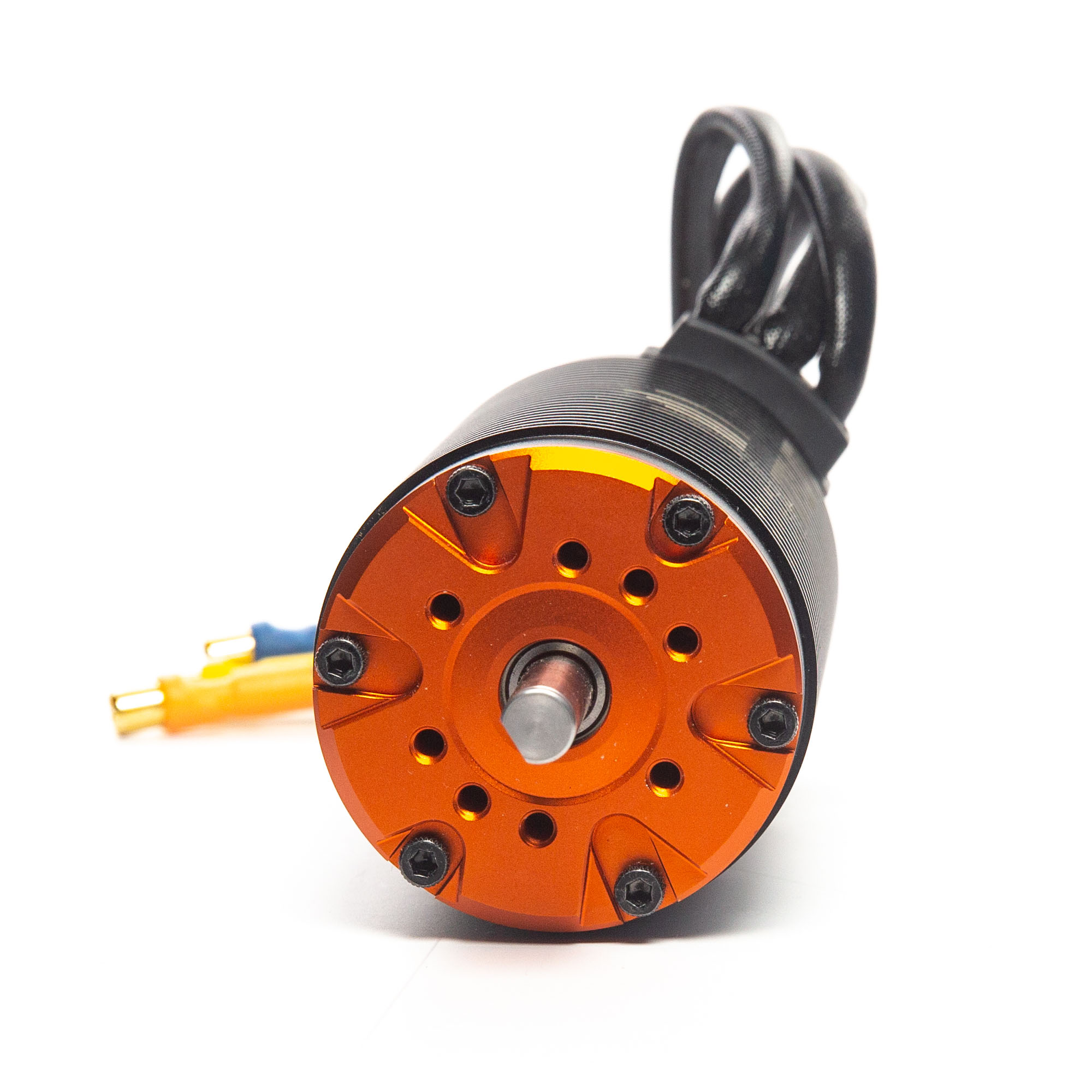

Firma 800Kv 4-pole Brushless Motor

Item No. SPMXSM2600
Firma 800Kv 4-pole Brushless Motor
Firma 800Kv 4-pole Brushless Motor
Firma 800Kv 4-pole Brushless Motor
Firma 800Kv 4-pole Brushless Motor
Firma 800Kv 4-pole Brushless Motor
Firma 800Kv 4-pole Brushless Motor
Firma 800Kv 4-pole Brushless Motor
Firma 800Kv 4-pole Brushless Motor
Brand Logo
4.9 out of 5 Customer Rating

Firma 800Kv 4-pole Brushless Motor

Item No. SPMXSM2600
$209.99
Free financing available through Easy Pay ⓘ
Earn points on this item ⓘ
Select Options
Firma 160A Brushless Smart ESC, 3S-8S
SPMXSM2600 SPMXSE1160
Firma 160A Brushless Smart ESC, 3S-8S
In Stock
$219.99
0 Item Selected Items Selected
Connector: Gold Bullet Set, 6.5mm (3)
SPMXSM2600 DYNC0091
Connector: Gold Bullet Set, 6.5mm (3)
In Stock
$6.99
Connector: Gold Bullet Set, 6.5mm (10)
SPMXSM2600 DYNC0092
Connector: Gold Bullet Set, 6.5mm (10)
Next Shipment September 2022
$18.99
0 Item Selected Items Selected
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store
The link to Firma 800Kv 4-pole Brushless Motor has been copied

Product Details

Key Features
  • Ideal for Arrma Roller Kits and 1/5 Scale Bashers and Monster Trucks Running 3-8S LiPo Batteries
  • Low Cog 4-Pole Motor Design
  • Alloy Steel 8mm Output Shaft
icon-box
In The Box
  • Firma 800Kv 4-Pole Brushless Motor
icon-how-to
Needed to Complete
  • 160A ESC
Firma 800Kv 4-pole Brushless Motor
Quick Links
icon-pdf-download Manuals & Support

Overview

The Firma 800Kv brushless motor is a perfect option for Arrma Roller kits and 1/5 scale bashers and monster trucks with a 3-8S LiPo setup. Featuring a low cog 4-pole design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 160 Smart ESC.

Features

  • Perfect upgrade for 1/5 scale bashers and monster trucks running on 3-8S LiPo batteries.
  • High efficiency design
  • 8S LiPo power capable
  • High-quality 4-pole sintered rotor
  • 6.5mm gold plated bullet connectors
  • High-quality construction with precision ball bearings and hardened steel 8mm shaft
  • Safe-D Shaft provides a c-clip locking point for preventing pinion gear slip

Product Specifications

Motor Design Inrunner
Input Voltage 11.1 - 29.6V (3 - 8S)
Recommended Speed Control Spektrum Firma 160A Brushless Smart
RPM/Volt (Kv) 12,475 / 15V
Shaft Length 0.867" (22 mm)
Connector Wire Length 7.48" (190 mm)
Outer Diameter 2.2" (56 mm)
Connector Type 6.5mm Bullet
Efficiency 87%
Motor Size 5611
Product Length 4.4" (112 mm)
Number of Poles 4
Resistance .0049 ohms
Shaft Diameter 0.3" (8 mm)
Product Weight 39.86oz (1130g)
Application Arrma Roller Kits
Bushing Or Bearing Bearing
Maximum Continuous Current 110A
Adjustable Timing No
