Firma 3660-3100Kv 4-Pole Sensorless Brushless Motor: 5mm

Item No. SPMX-1081
Firma 3660-3100Kv 4-Pole Sensorless Brushless Motor: 5mm
Firma 3660-3100Kv 4-Pole Sensorless Brushless Motor: 5mm
Firma 3660-3100Kv 4-Pole Sensorless Brushless Motor: 5mm
Firma 3660-3100Kv 4-Pole Sensorless Brushless Motor: 5mm
Firma 3660-3100Kv 4-Pole Sensorless Brushless Motor: 5mm
Firma 3660-3100Kv 4-Pole Sensorless Brushless Motor: 5mm
Brand Logo
5 out of 5 Customer Rating

Firma 3660-3100Kv 4-Pole Sensorless Brushless Motor: 5mm

Item No. SPMX-1081
$74.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store
The link to Firma 3660-3100Kv 4-Pole Sensorless Brushless Motor: 5mm has been copied

Product Details

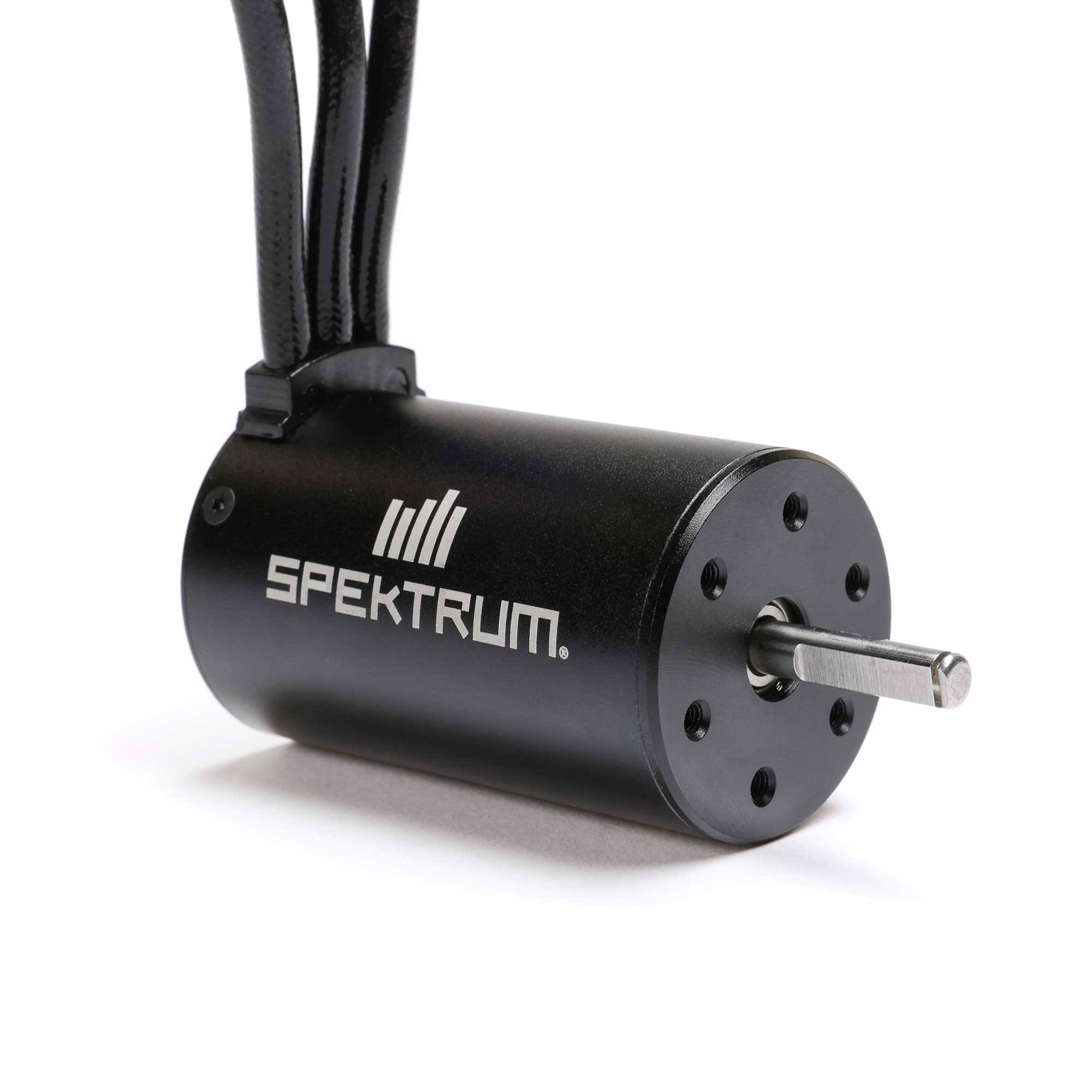

The Spektrum™ Firma™ 3100Kv Sensorless Brushless Motor is designed specifically for the ARRMA® TYPHON™ 4X4 3S BLX 1/8th SMART Buggy running a 2S-3S LiPo. It features a low-cog 4-pole rotor, CNC machined aluminum housing, insulated high-purity copper windings, a high-quality alloy steel 5mm output shaft, and precision bearings for durability and smooth rotation. It is perfectly matched for the Spektrum SLT 80 Amp Brushless ESC/Receiver.
Key Features
  • 2S-3S LiPo power capable
  • High-efficiency design
  • Low-cog 4-pole sintered rotor
  • Precision ball bearings and hardened steel 5mm output shaft
icon-box
In The Box
  • (1) Firma 3660-3100Kv 4-Pole Sensorless Brushless Motor
Firma 3660-3100Kv 4-Pole Sensorless Brushless Motor: 5mm
Quick Links
icon-pdf-download Manuals & Support

Product Specifications

Connector Type 5mm Bullet
Connector Wire Length 3.74" (95 mm)
Input Voltage 2S – 3S
Motor Type Brushless
Number of Poles 4
Product Length 2.36" (60 mm)
Product Weight 245g
RPM/Volt (Kv) 3100Kv
Sensored No
Shaft Diameter 0.19" (5 mm)
Shaft Length 0.76" (19.3 mm)
