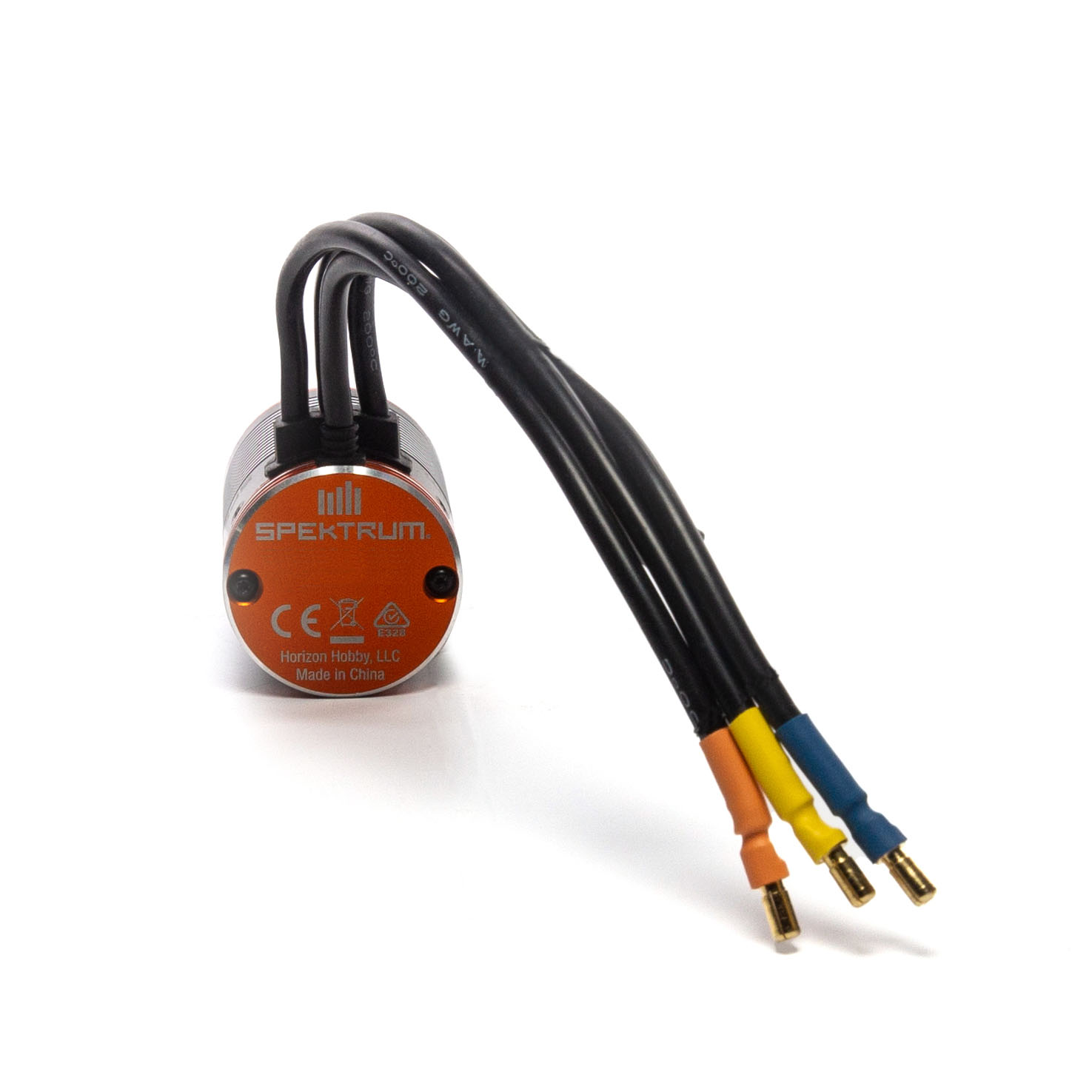

Firma 2100Kv Brushless Sensored Crawler Motor

Item No. SPMXSM3001
Brand Logo
3.5 out of 5 Customer Rating

Firma 2100Kv Brushless Sensored Crawler Motor

Item No. SPMXSM3001
$127.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Key Features
  • Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
  • Perfect balance of speed and torque, great for trail and scale crawling applications
  • High-quality 4-pole sintered rotor
  • Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs precise signals indicated by rotor position.
  • 3.5mm Gold Plated Bullet Connectors
Firma 2100Kv Brushless Sensored Crawler Motor

Overview

The Firma 2100Kv Sensored brushless motor is a great choice for 1/10 scale crawlers, rock racers, and trailers running on 2S – 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 3.5mm gold plated bullet connectors for easy installation. The Spektrum FIRMA 60A Sensored Brushless Smart Crawler ESC is required.

Features

  • Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
  • Perfect balance of speed and torque, great for trail and scale crawling applications
  • High-quality 4-pole sintered rotor
  • Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors
  • 3.5mm gold plated bullet connectors
  • Waterproof sensor wire with locking plug and gasket
  • High-quality construction with precision ball bearings and hardened steel 1/8" shaft

Product Specifications

Integrated ESC No
Outer Diameter 1.42" (36 mm)
Constant Wattage 250-499W
Maximum Continuous Current 38A
Motor Type Brushless
Input Voltage 7.4 - 11.1V
Kv Rating 2000-2499Kv
Motor Output Lead 3.5
Product Application Crawling, Surface
Recommended Speed Control Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
RPM/Volt (Kv) 2100Kv
Connector Type 3.5mm Bullet
Motor Class 1/10 Scale
Motor Size 540-2100Kv Brushless Sensored
Product Length 2.27" (58 mm)
Application 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power
Number of Poles 4
Shaft Diameter 0.125" (3 mm)
Water-Resistant Yes
Sensored Yes
Sensor Type Sensored FOC
Bushing Or Bearing Bearing
Forward Yes
Reverse Yes
