Firma 160A Smart ESC with Capacitor 3S - 8S

Item No. SPMXSE1160CP
Brand Logo
5 out of 5 Customer Rating

Firma 160A Smart ESC with Capacitor 3S - 8S

Item No. SPMXSE1160CP
$229.99
Free financing available through Easy Pay
Earn points on this item
Select Options
Smart ESC Programming Update Box: Avian and Firma
SPMXSE1160CP SPMXCA200
Smart ESC Programming Update Box: Avian and Firma
In Stock
$29.99
0 Item Selected Items Selected
Loop Connector: IC5
SPMXSE1160CP ARA390292
Loop Connector: IC5
In Stock
$7.99
Connector: EC3 Device and EC3 Battery Set
SPMXSE1160CP EFLAEC303
Connector: EC3 Device and EC3 Battery Set
In Stock
$5.99
Connector: IC3 Device and IC3 Battery Set
SPMXSE1160CP SPMXCA301
Connector: IC3 Device and IC3 Battery Set
In Stock
$6.99
Connector: IC5 Battery (2)
SPMXSE1160CP SPMXCA501
Connector: IC5 Battery (2)
In Stock
$9.99
Adapter: IC5 Device / 4mm Male Bullets with 6" Wires
SPMXSE1160CP SPMXCA504
Adapter: IC5 Device / 4mm Male Bullets with 6" Wires
In Stock
$11.99
Connector: IC5 Battery Bulk (25)
SPMXSE1160CP SPMXCA511
Connector: IC5 Battery Bulk (25)
In Stock
$59.99
6" Extension: IC5 Battery/IC5 Device
SPMXSE1160CP SPMXCA514
6" Extension: IC5 Battery/IC5 Device
Next Shipment October 2021
$11.99
0 Item Selected Items Selected
Firma Brushless Motor, 3150Kv, 4mm Bullet
SPMXSE1160CP SPMXSM1000
Firma Brushless Motor, 3150Kv, 4mm Bullet
In Stock
$59.99
Firma Brushless Motor, 780Kv, 6.5mm Bullet
SPMXSE1160CP SPMXSM1100
Firma Brushless Motor, 780Kv, 6.5mm Bullet
In Stock
$209.99
Firma Brushless Motor, 1250Kv, 6.5mm Bullet, 5mm Shaft
SPMXSE1160CP SPMXSM1200
Firma Brushless Motor, 1250Kv, 6.5mm Bullet, 5mm Shaft
In Stock
$134.99
0 Item Selected Items Selected
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Product Features

  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Added inline capacitor for additional ESC protection
  • Waterproof
  • Multiple options for easy programming:
    • Button programming
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Rugged plastic case with mounting tabs
  • Aluminum heat sink for high efficiency
  • Cooling fan
  • Adjustable high-power BEC
  • Firmware updatable through the Smart ESC Programming Box
  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
  • Limited 1-year warranty

Product Overview

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Needed to Complete
  • Spektrum™ Surface Receiver
  • Spektrum Smart Technology LiPo Battery
  • Spektrum Transmitter
What's in the Box?
  • (1) Spektrum™ Firma™ Smart ESC
  • (1) Spektrum Smart sticker sheet
  • (1) Product Manual

Video Overview



Spektrum™ Smart Technology Video Overview



WATERPROOF
WATERPROOF

The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.



EC3™/EC5™ BACKWARDS COMPATIBLE
EC3™/EC5™ BACKWARDS COMPATIBLE

Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.



ONE-WIRE TELEMETRY
ONE-WIRE TELEMETRY
ONE-WIRE TELEMETRY

No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including RPM, voltage, temperature, balance, capacity, and speed.*

*See compatibility chart for more information.



SMART TECHNOLOGY BATTERY DATA
SMART TECHNOLOGY BATTERY DATA

When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery capacity used and remaining, individual cell voltage and more!



MULTIPLE PROGRAMMING OPTIONS
MULTIPLE PROGRAMMING OPTIONS

Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.



FAST, POWERFUL M4 PROCESSOR
FAST, POWERFUL M4 PROCESSOR

The Firma™ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.



MULTIPLE PROGRAMMING OPTIONS

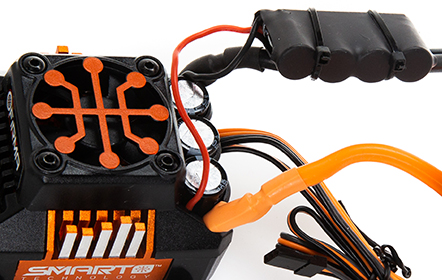

INCLUDED CAPACITOR PACK

The added capacitor pack provides additional protection to your Firma ESC by smoothing out voltage and current spikes when running high output, high speed setups, making it perfect for 8S speed run and Basher vehicles.



Product Specifications

Product Weight 9.9oz (280g)
Product Width 3.03" (77mm)
Programmable Yes
Reverse Yes
Technology Smart
Product Length 2.7" (70mm)
Auto Cutoff Yes
Battery Input Lead 10AWG Dual IC5, EC5 compatible
BEC Yes
BEC Continous Current 5A
BEC Type Switch Mode
BEC Voltage 6V
Brakes Yes
Connector Type IC5
Forward Yes
Input Voltage 3S - 8S LiPo
Low-Voltage Cutoff Programmable Yes
Maximum Burst Current 1050A
Maximum Continuous Current 160A
Motor Output Lead 6.5mm Female Bullets
Overload Protection Yes
Product Height 1.8" (44mm)
