Product Details

Key Features
  • Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
  • Perfect for low speed, high torque applications such as competition crawlers
  • High-quality 4-pole sintered rotor
  • Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs precise signals indicated by rotor position.
  • 3.5mm Gold Plated Bullet Connectors
Firma 1400Kv Brushless Sensored Crawler Motor

Overview

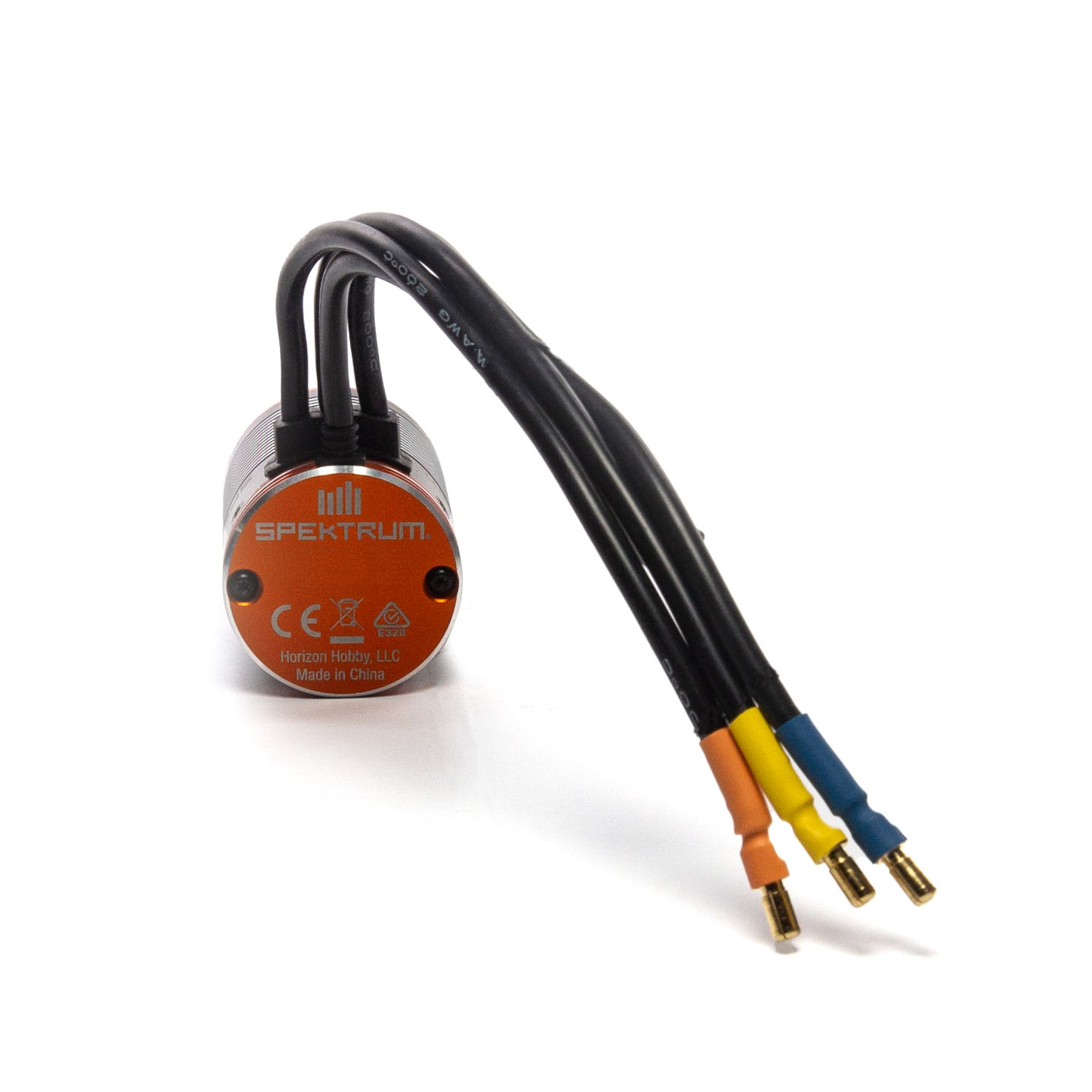

The Firma 1400Kv Sensored brushless motor is a great choice for 1/10 scale crawlers, rock racers, and trailers running on 2S – 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 3.5mm gold plated bullet connectors for easy installation. The Spektrum FIRMA 60A Sensored Brushless Smart Crawler ESC is required.

Features

  • Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
  • Perfect for low speed, high torque applications such as competition crawlers
  • High-quality 4-pole sintered rotor
  • Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors
  • 3.5mm gold plated bullet connectors
  • Waterproof sensor wire with locking plug and gasket
  • High-quality construction with precision ball bearings and hardened steel 1/8" shaft

Product Specifications

Motor Size 540-1400Kv Sensored Brushless
Product Length 2.27" (58 mm)
Connector Type 3.5mm Bullet
Outer Diameter 1.42" (36 mm)
Input Voltage 7.4 - 11.1V
Recommended Speed Control Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
RPM/Volt (Kv) 1400Kv
Bushing Or Bearing Bearing
Forward Yes
Reverse Yes
Maximum Continuous Current 25A
Motor Type Brushless - Sensored
Shaft Diameter 0.125" (3 mm)
Water-Resistant Yes
Application 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power
Number of Poles 4
