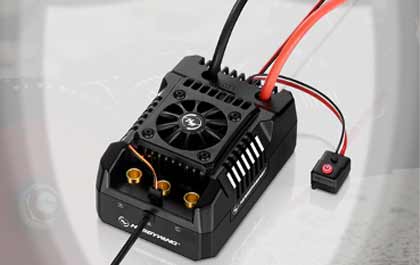

EZRUN MAX4 Brushless ESC, 6S-12S

Item No. HWI30104002
Brand Logo
5 out of 5 Customer Rating

EZRUN MAX4 Brushless ESC, 6S-12S

Item No. HWI30104002
$449.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Key Features
  • High Reliability And Durability
  • Applicable To All Weather Track Conditions
  • Capacitor Thermal Protection
  • Superior Built-In BEC
  • Built-In Spark-Proof Design
icon-box
In The Box
  • (1) EZRUN MAX4 Brushless ESC

Features

  • The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice, snow, and water accumulation.
  • Built-in ultra-powerful switch mode BEC with a continuous current of 10A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
  • Equipped with the most advanced and safe electronic switches. The traditional mechanical switch protects and prevents dust, humid and other harsh environments, contact rust, and violent impact (such as flying slope landing) caused by the automatic closure of mechanical switches and other issues.
  • Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, and current protection.
  • Support LED program card, LCD program box, OTA programmer (Note: optional) to set the parameters of the ESC.
  • Real-time data recording function to view various running data on the HW LINK app using the OTA Bluetooth module.
  • Built-in fire-proof circuitry to protect the battery plug, while effectively avoiding damage to the case from electrical sparks (fingers).
FEATURE_TITLE

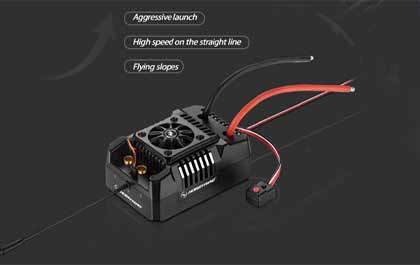

Sensored Mode, Flexible, Retract Freely

The Max4 HV ESC is the most sought-after ESC on the market. It’s dynamic and dominant specifications meets the needs of power-hungry users. It has a strong output power with excellent linearity at low speed and is operating on full-sensored mode.

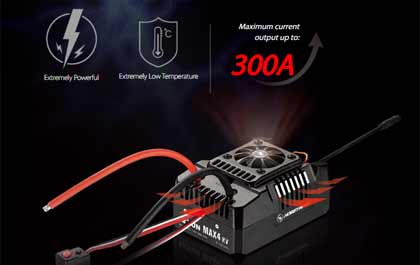

Extremely Powerful And Extremely Low Temperature
Extremely Powerful And Extremely Low Temperature

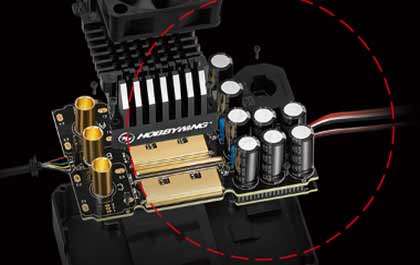

The internal circuitry board of the ESC has been integrated to use copper thermal conduction sink. These are built into high-reliability thermal systems to ensure that it is always in good thermal condition while supplying a maximum output current of 300A.



High Reliability And Durability
High Reliability And Durability

Max4 HV is the most durable(hardware) and advance(software) ESC on the market. The ESC is built using the highest quality of materials available to withstand extreme weather /surface conditions. Together with the most advance software developed by our in-house engineers, we have created multiple overloading functions to protect the ESC from damaging.

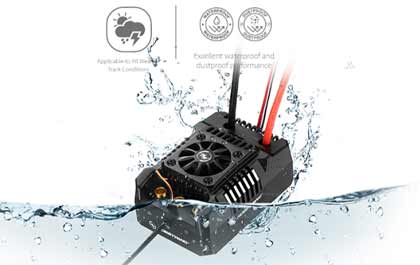

Applicable To All Weather Track Conditions
Applicable To All Weather Track Conditions

The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including muddy, sandy, icy, snowy and water without damaging the power unit.

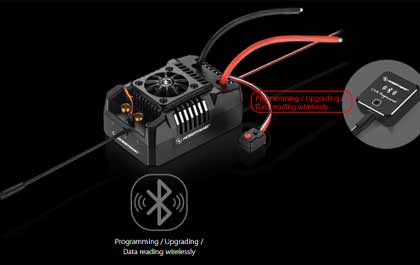

Programming, Upgrading, And Data Reading Wirelessly
Programming, Upgrading, And Data Reading Wirelessly

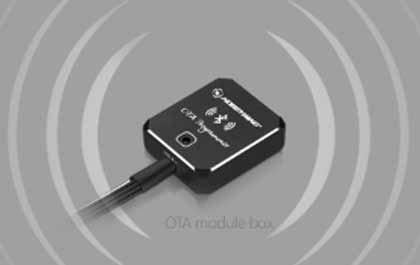

With Hobbywing's OTA module and smartphone (with the HOBBYWING HW Link App installed), the user can program parameters, upgrade firmware and check relevant data of the ESC.



Real-Time Data And Data Logging Function
Real-Time Data And Data Logging Function

After connecting the OTA module, turn on real-time data recording function to access the operating status.

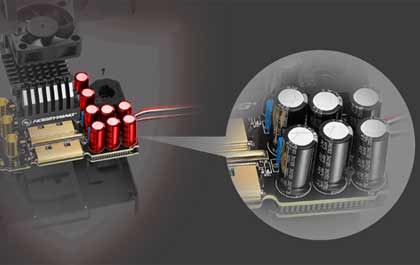

Capacitor Thermal Protection
Capacitor Thermal Protection

Capacitor thermal protection implemented by the ESC will effectively prevent capacitors from exploding and causing irreversible damage to the ESC due to overload.



Superior Built-In BEC
Superior Built-In BEC

The ESC has a built-in BEC which can support a maximum output current of up to 25A and the output voltages are switchable between 6V, 7.4V and 8.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.



Built-In Spark-Proof Design
Built-In Spark-Proof Design

The built-in spark-proof circuitry is able to prevent damaging the battery connectors as well as physical injury (to finger) caused by strong electrical sparks upon connecting to a “high voltage” battery pack (6-12S).

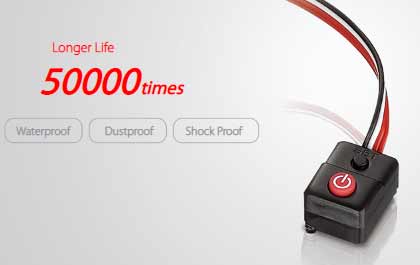

Advanced And Secured Electronic Switch
Advanced And Secured Electronic Switch

The all-new advanced and secured electronic switch features a longer lifespan compared to the standard switch. The dust, dirt, and waterproof switch housing ensures reliable and longer life and eliminates unwanted damages. Heavy impact or harsh surfaces will no longer affect and damaged the switch. Users will be able to enjoy bashing their RC cars.

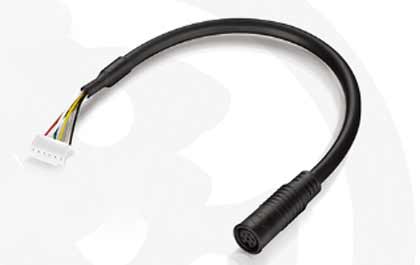

New Sensored Cable Interface
New Sensored Cable Interface

The MAX4 HV ESC is equipped with a new type of sensored cable interface. It is high recommended to use the motors from Hobbywing as the waterproof protection level is at the highest level (IP67).



Product Specifications

Product Length 4.92126" (125 mm)
BEC Yes
BEC Voltage 6V / 7.4V / 8.4V adjustable
Input Voltage 6-12S Lipo
Motor Limit With 12S Lipo: KV=600 70125 size motor
Product Height 2.429134" (62 mm)
Maximum Continuous Current 300A / 2000A
Motor Type Brushless
Product Weight 775.4g
Product Width 3.34646" (85 mm)
