Edge 540 .46-.55 GP EP ARF 55.5"

Item No. PMMA0360
Backorder
Brand Logo
5 out of 5 Customer Rating

Edge 540 .46-.55 GP EP ARF 55.5"

Item No. PMMA0360
$124.99 Price reduced from $229.99 to
Next Shipment October 2020
Selected Store
|

Product Details

$

Overview

Designed by a world-class pilot, the Phoenix Model Edge 540 .46-.55 GP/EP ARF is a scale aerobatic modeler’s dream. The craftsmanship and attention to detail is evident throughout, as is the use of quality materials. Drop in your favorite power setup and get ready for thrilling aerobatic adventure!

Key Features

  • Construction: Balsa and ply
  • Wings: Bolt-on two piece with aluminum wing tube
  • Aileron Control: Dual servo
  • Cowl: Fiberglass, painted to match color scheme
  • Covering: High-quality film
  • Engine Mount: One-piece composite plastic
  • Landing Gear: Aluminum hi-grade for main gear, spring wire for tail gear
  • Fuel Tank: Approximately 10oz (296cc)
  • Wheel Pants: Fiberglass, painted to match color scheme
  • Wheels: Main Rubber, 2.5" (63.5mm) diameter, 1" (25.4mm) tailwheel
  • Building Time: Ready to fly in 2-4 hours
Needed to Complete
  • Radio: At least 4-channel
  • Servos: Five, (1-elevator, 1-throttle (for glow power), 2-ailerons, 1-rudder)
  • Glow Power:
  • Engine: 2 stroke .46-.55cu in, or 4-stroke .52-.71cu in
  • Propeller: Compatible with selected engine or electric motor
  • Building and field equipment
  • Electric Power:
  • Brushless Motor: Great Planes ElectriFly Rimfire .46 42-60-800 recommended
  • Electronic Speed Control: 60A
  • LiPo Battery: Compatible with selected motor
  • Battery Charger: Compatible with selected battery
  • Propeller: Compatible with selected engine or electric motor
  • Building and field equipment

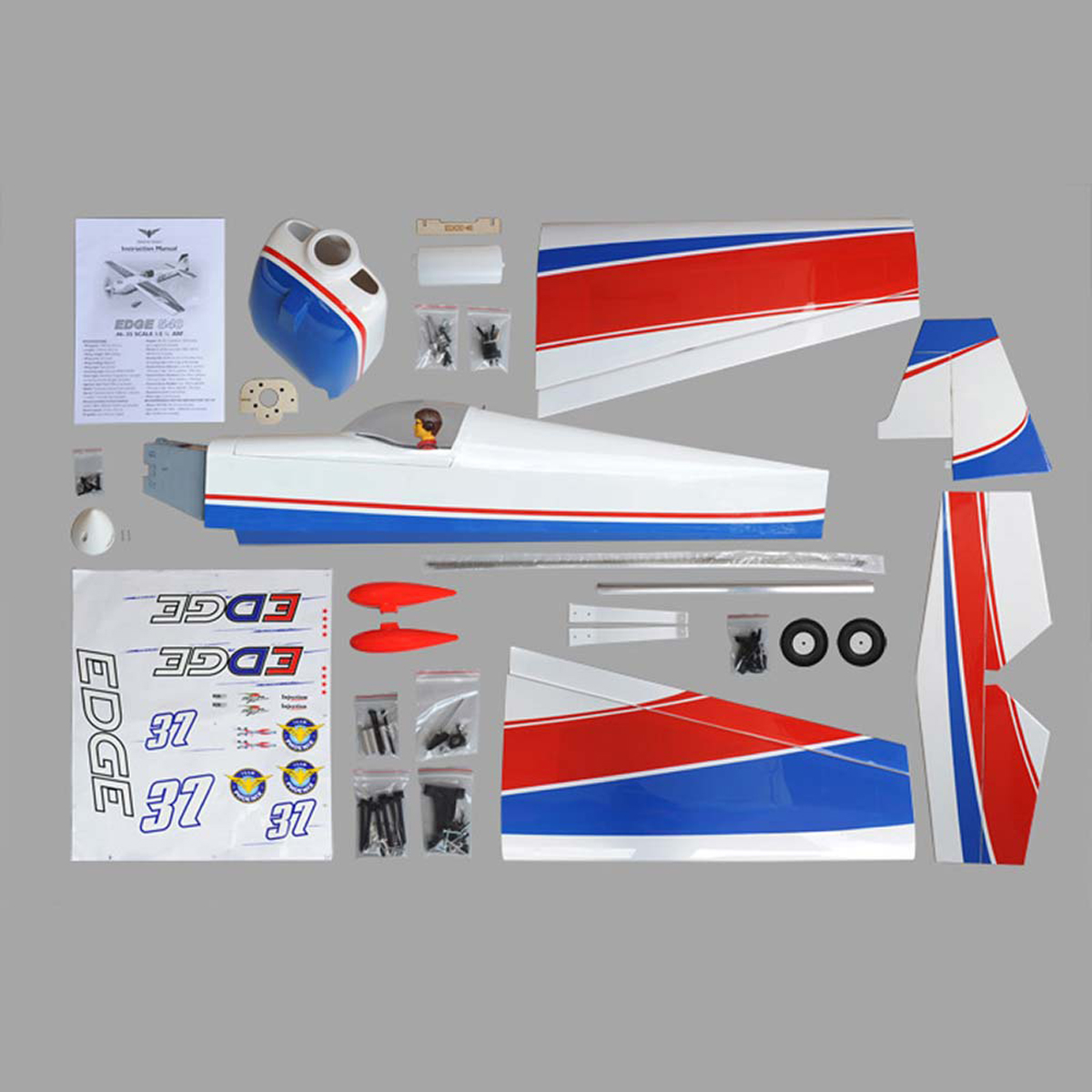

What's in the box?
  • (1) ARF Edge 540 .46 Airplane, Fuel Tank, Landing Gear, Wheels, Engine Mount, Hardware to Mount Electric Motor, precovered Wings, Fuselage and Tail sections, Pilot Bust, Decal Sheet and Instruction Manual

Specifications

  • Wingspan: 55.5" (1410mm)
  • Weight: 5.8-6.17lb (2650-2800g)
  • Length: 54" (1370mm)
  • Airfoil: Fully symmetrical
  • Configuration: Mid wing
  • Center of Gravity, (CG): 3.1-3.3" (80-85mm) back from the leading edge of the wing at the fuselage
  • Control Throws: Low Rate   /   High Rate
  • Ailerons: Up & Down 0.31" (8mm) 0.47" (12mm)
  • Elevator: Up & Down 0.31" (8mm) 0.47" (12mm)
  • Rudder: Right & Left 1.10" (28mm) 1.57" (40mm)

Product Specifications

Specs

Completion Level Almost Ready-To-Fly
Material Balsa
Product Length 54 in (1370mm)
Wingspan 55.5 in (1410mm)
