DLE-85 85cc Gas Engine with Electronic Ignition and Muffler

Item No. DLEG0085
DLE-85 85cc Gas Engine with Electronic Ignition and Muffler
DLE-85 85cc Gas Engine with Electronic Ignition and Muffler
Backorder
Brand Logo
4 out of 5 Customer Rating

DLE-85 85cc Gas Engine with Electronic Ignition and Muffler

Item No. DLEG0085
$694.99
RC Club points earned on this item shown at checkout.
Next Shipment March 2039
Selected Store
The link to DLE-85 85cc Gas Engine with Electronic Ignition and Muffler has been copied

Product Details

Key Features
  • Engine mount specifically designed to dampen vibration
  • Exhaust extension on the included muffler aids in installation and helps protect the engine and muffler in the event of a hard landing
  • Ignition module will accept the optional DLE tachometer
icon-box
In The Box
  • (1) DLE-85 Engine with Ignition Module
  • (1) Spark Plug
  • Engine Standoffs
  • (1) Engine Mount
  • (1) Muffler w/Exhaust Extension
  • (1) Fiber Muffler Gasket
  • (1) Product manual
icon-how-to
Needed to Complete
  • Unleaded gasoline
  • Two-stroke oil
  • 4.8 - 6V NiMH/NiCd, or 6.6V LiFe or 7.4V LiPo battery for ignition (separate receiver style pack can be used)
  • **NOTE, 1st version ignition is marked 'A-01' on the label and requires a regulator if using 2S LiPo/LiFe battery
  • If ignition module is the A-02 model it has a built-in voltage regulator. Model A-02 designation is located above the word "Ignition" on top of the case**
  • Propeller
DLE-85 85cc Gas Engine with Electronic Ignition and Muffler
Quick Links
icon-pdf-download Manuals & Support

Smooth single-cylinder power

Giant-scale enthusiasts will love the power, performance and value of the DLE-85cc! The engineers at DLE have thought of everything. Vibration — a real concern for many single cylinder engines — is checked by a vibration-dampening engine mount. Plus, an exhaust extension lets the engine fit in more planes without cowl modifications. This extension will flex or pop off during a hard landing, helping to protect the engine.

  • The ignition module will accept input voltages from 4.8V to 8.4V.
  • Suggested prop sizes: 25 x 10, 26 x 9, 27 x 8
  • Includes an engine mount specially designed to dampen vibration
  • An exhaust extension on the included muffler aids in installation and helps protect the engine and muffler in the event of a hard landing

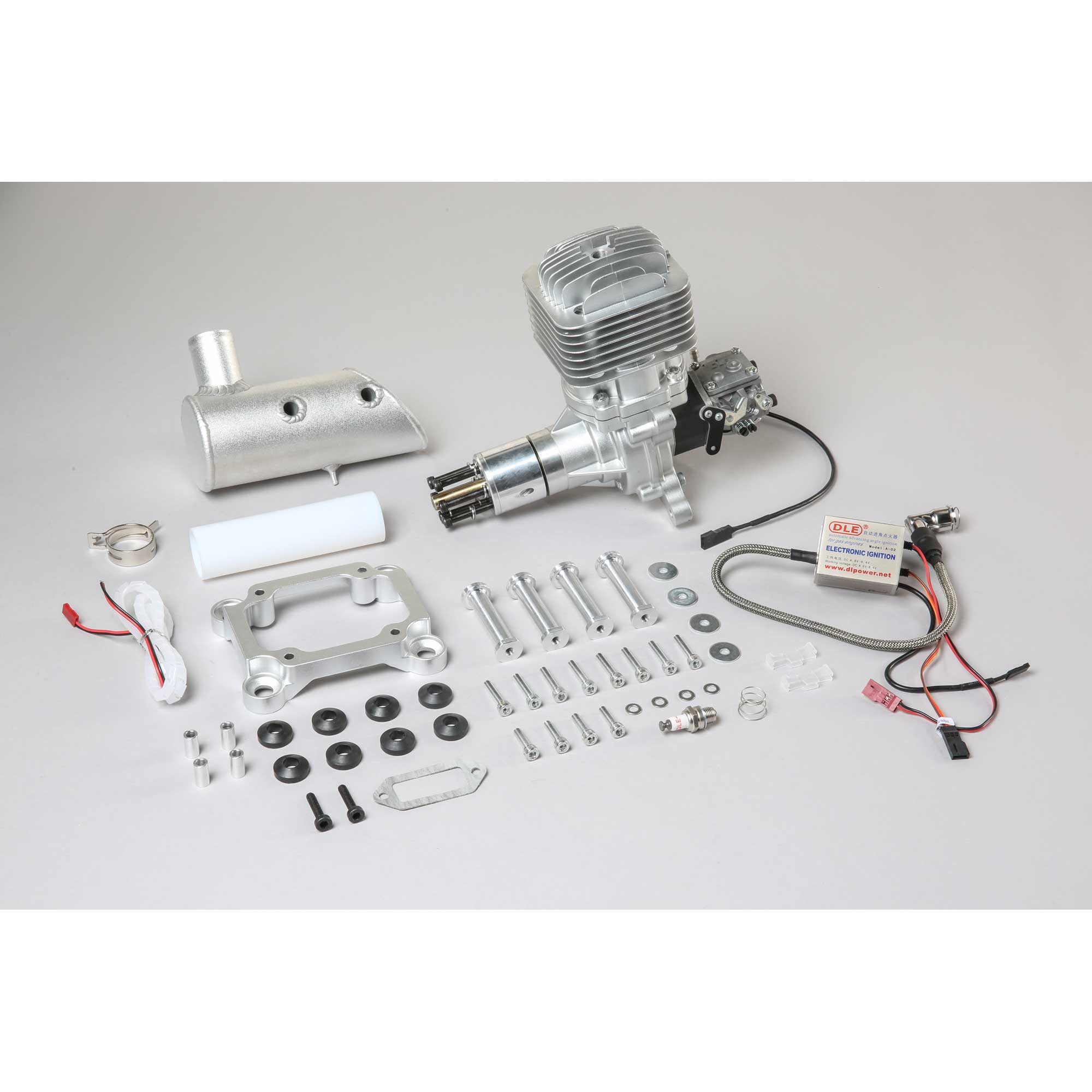

DLE Engines DLE-85cc Gas Engine - Parts Layout
You get all this with the DLE-85: ignition module, spark plug, engine standoffs, vibration-dampening engine mount and muffler with exhaust extension.
DLE Engines DLE-85cc Gas Engine - engine mount
The DLE-85’s engine mount combats performance-robbing vibration, and unlike comparable engines, is standard equipment.

Product Specifications

Engine (Only) Weight 68 oz (1930 g )
Muffler Type 2-piece aluminum
Ignition Weight 4.58 oz (110g)
Muffler Weight 8.8 oz (250 g)
Product Height 5.51" (140mm) fron center of crankshaft to top of cylinder head
Prop Range 25 x 10 - 27 x 8
Starter Type Hand Held Starter
Cylinders Single
Total Weight 6.04lbs (2744g)
Bore 2.05" (52mm)
Displacement 5.18 cu in (84.88 cc)
Oil Type & Content 30:1 2-cycle oil mixture
Product Length 7.87" (200mm) from mount to front of prop hub
Crankshaft Type Threaded
Power Type Gas
Plug Type NGK CM6
Stroke 1.57" (40mm)
