DLE-61 61cc Gas Engine with Electronic Ignition and Muffler

Item No. DLEG0061
Out of Stock
Brand Logo
3.4 out of 5 Customer Rating

DLE-61 61cc Gas Engine with Electronic Ignition and Muffler

Item No. DLEG0061
$519.99
RC Club points earned on this item shown at checkout.
This item is currently not available
Selected Store

Product Details

Key Features
  • Electronic ignition delivers smooth idle, easy starting and powerful throttle transition, spiral wire wrap eliminates interference
  • Muffler designed for optimized power delivery
  • Enlarged crankshaft ball bearings
  • Two petal reed valve induction system
  • Airplane specific carburetor with manual choke
  • Lightweight piston for fast acceleration, excellent compression and low vibration
icon-box
In The Box
  • (1) DLE-61 Gasoline Engine with Electronic Ignition
  • (1) NGK CM6 Spark Plug
  • (1) Muffler
  • (4) 2.7" (68mm) Standoffs
  • (1) Product manual
icon-how-to
Needed to Complete
  • 87 octane gasoline
  • 2-cycle oil, mix ratio for this engine is 30 parts gas to one part oil and must be followed exactly for warranty consideration and optimum performance
  • 4.8 - 6V NiMH/NiCd, or 6.6V LiFe or 7.4V LiPo battery for ignition (separate receiver style pack can be used)
  • **NOTE, 1st version ignition is marked 'A-01' on the label and requires a regulator if using 2S LiPo/LiFe battery If ignition module is the A-02 model it has a built-in voltage regulator. Model A-02 designation is located above the word "Ignition" on top of the case**
  • Propeller: 22x10, 23x8, 23x10, 24x8
  • Field Equipment
DLE-61 61cc Gas Engine with Electronic Ignition and Muffler

More power at lighter weight

Innovation is excellence; so, when DLE added innovations like magnesium alloy crankcases, improved crankshaft bearings, and a better piston/cylinder fit to their engines, serious R/C pilots got very excited. The DLE-61 weighs four pounds and cranks out over six horsepower from a durable and long-lasting engine. Extras like an airplane-specific carburetor, muffler, standoffs and electronic ignition boost performance even further. It's a solid 60cc engine at the best price you’ll find.

  • Efficient, light design for high power-to-weight ratio
  • Light piston for fast acceleration, excellent compression and low vibration
  • CNC-machined parts for high performance and long life
  • Enlarged crankshaft bearings
  • Two petal reed valve carburetor
  • Muffler included for optimized power
  • Spark plugs
  • Spiral wire wrap
DLE Engines DLE-61cc Gas - ignition
Electronic ignition delivers ultra-smooth idle, easy starting and awesome throttle transition.

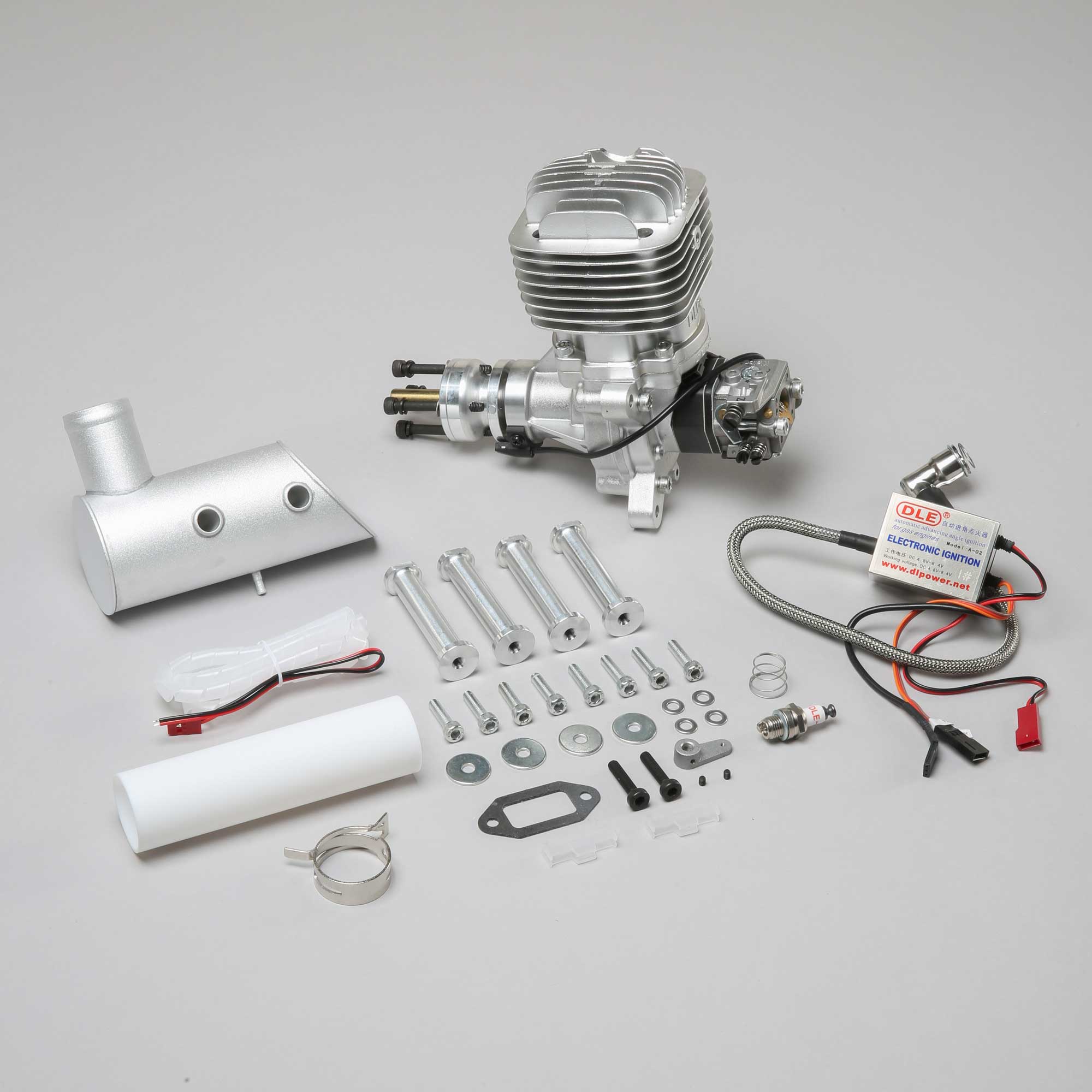

DLE Engines DLE-61cc Gas - Includes
The DLE-61 includes a muffler, electronic ignition gear, spark plugs, spiral wire wrap and connector safety clips.

Product Specifications

Bore 1.85" (47mm)
Crankshaft Type Threaded
Cylinders Single
Displacement 3.7 cu in (61.0cc)
Engine (Only) Weight 3.02 lbs (1370g)
Ignition Weight 3.9 oz (110g)
Muffler Type 2-piece aluminum
Muffler Weight 3.9 oz (110 g)
Oil Type & Content 30:1 2-cycle oil mixture
Plug Type NGK CM6
Power Type Gas
Product Height 4.96" (126mm) from center of crankshaft to top of cylinder head
Product Length 6.8" (172mm)
Product Width 3.54" (90mm) between center of upper mounting holes
Prop Range 22 x 10 - 24 x 8
Starter Type Hand Held Starter
Stroke .98" (35mm)
Total Weight 7.8 lbs (3532 g)
