DLE-20RA Gas Rear Exhaust with Electronic Ignition

Item No. DLEG0420
DLE-20RA Gas Rear Exhaust with Electronic Ignition
DLE-20RA Gas Rear Exhaust with Electronic Ignition
DLE-20RA Gas Rear Exhaust with Electronic Ignition
Discontinued
Brand Logo
5 out of 5 Customer Rating

DLE-20RA Gas Rear Exhaust with Electronic Ignition

Item No. DLEG0420
This Item is No Longer Available
Selected Store

Product Details

Key Features
  • Sealed crankshaft bearings, efficient design for lighter weight
  • Two petal reed valve rear induction with DLE customized carburetor
  • Redesigned piston is lighter for faster acceleration, better compression, and lower vibration
  • Circuitry and software in electronic ignition provides better idle and improved transition, and also allows a wider range of ignition battery voltages from 4.8-8.4V Ignition Sensor available separately
  • Rear exhaust with newly designed muffler with two outlet stingers that alloy engine to breathe better and produce more power
  • Lightweight aluminum alloy crankcase
icon-box
In The Box
  • (1) DLE-20cc Rear Exhaust Gasoline Engine with Electronic Ignition
  • (1) Muffler
  • (2) Muffler Extension Tubes with Clamps
  • (1) Muffler Gasket
  • (2) 4x20mm Muffler Screws
  • (1) Spark Plug
  • (1) Product manual
icon-how-to
Needed to Complete
  • Gasoline with at least 87 octane rating
  • 2-cycle oil, mix ratio for this engine is 30 parts gas to one part oil and must be followed exactly for warranty consideration and optimum performance
  • 4.8 - 8.4V battery for ignition, separate receiver style pack can be used
  • NOTE: 1st version ignition is marked 'A-01' on the label and requires a regulator if using 2S LiPo/LiFe battery If ignition module is the A-02 model it has a built-in voltage regulator. Model A-02 designation is located above the word "Ignition" on top of the case
DLE-20RA Gas Rear Exhaust with Electronic Ignition
Quick Links
icon-pdf-download Manuals & Support

Gasoline economy – electronic ignition ease!

DLE has made the popular DLE-20 better than ever, thanks to updated features that boost overall efficiency and performance! Along with the redesigned muffler and lighter piston, DLE has updated the circuitry and software within the electronic ignition unit for better idle and improved transitions. Best of all, the EI unit is now compatible with 4.8-8.4V ignition batteries!

  • Efficient, lightweight design with sealed crankshaft bearings.
  • Two-petal reed valve rear induction with custom DLE carburetor.
  • Electronic ignition unit with newly designed circuitry and software provides better idle and improved transitions. Ideal for use with 4.8-8.4V ignition batteries.
  • NGK CM6 spark plug.
  • Redesigned, lighter piston for faster acceleration, better compression and lower vibration.
  • Rear exhaust with newly designed muffler features two outlet stingers that allow the engine to produce more power.
  • Lightweight aluminum alloy crankcase.
  • 2-year limited warranty through Hobby Services, beginning at the date of purchase.

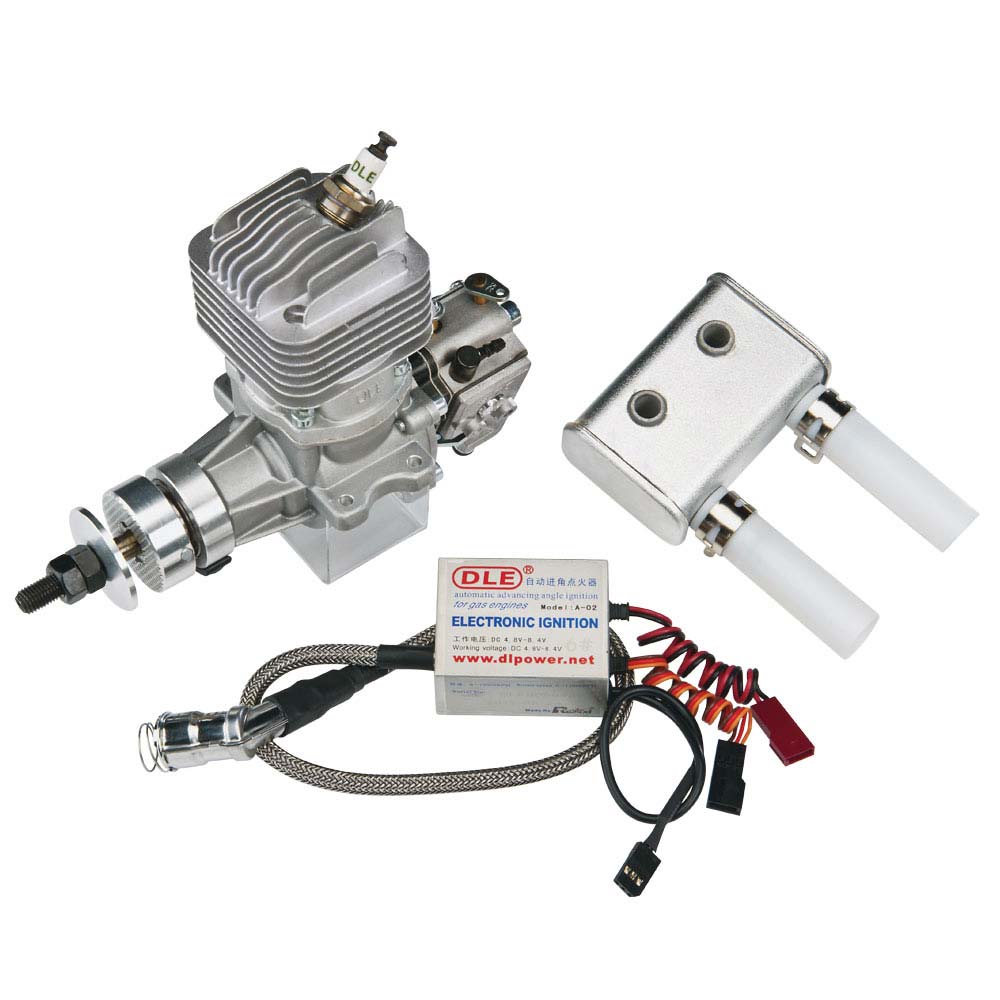

DLE Engines DLE-20RA Gas Engine - Includes
The DLE-20 package includes a muffler, spark plug, gasket, bolts, throttle arm extension & manual.

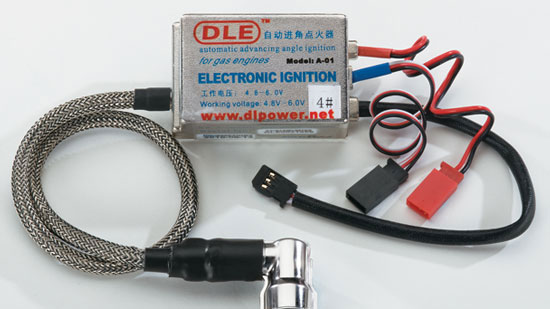

DLE Engines DLE-20RA Gas Engine - Electronic Ignition
Electronic ignition is the no-hassle answer to simpler starts and higher performance.

Product Specifications

Bore 1.26" (32mm)
Crankshaft Type Threaded
Cylinders Single
Displacement 1.22 cu in (20 cc)
Engine (Only) Weight 1.7 lbs (660 g)
Ignition Weight 4.6 oz (130 g)
Muffler Type Pitts
Muffler Weight 2.8 oz (80 g)
Oil Type & Content 30:1 2-cycle oil mixture
Plug Type NGK CM6
Power Type Gas
Product Height 3.7" (93mm) from center of crankshaft to top of cylinder head
Product Length 5.4" (138mm)
Product Width 2.4" (60mm) measured at mounting hole centers
Prop Range 14 x 10 - 17 x 6
Starter Type Hand Held Starter
Stroke .98" (25mm)
Total Weight 1.9 lbs (870 g)
