DLE-20 20cc Gas Airplane Engine with Muffler

Item No. DLEG0020
DLE-20 20cc Gas Airplane Engine with Muffler
DLE-20 20cc Gas Airplane Engine with Muffler
Backorder
Brand Logo
4.9 out of 5 Customer Rating

DLE-20 20cc Gas Airplane Engine with Muffler

Item No. DLEG0020
$279.99
RC Club points earned on this item shown at checkout.
Back Order
Selected Store
The link to DLE-20 20cc Gas Airplane Engine with Muffler has been copied

Product Details

icon-box

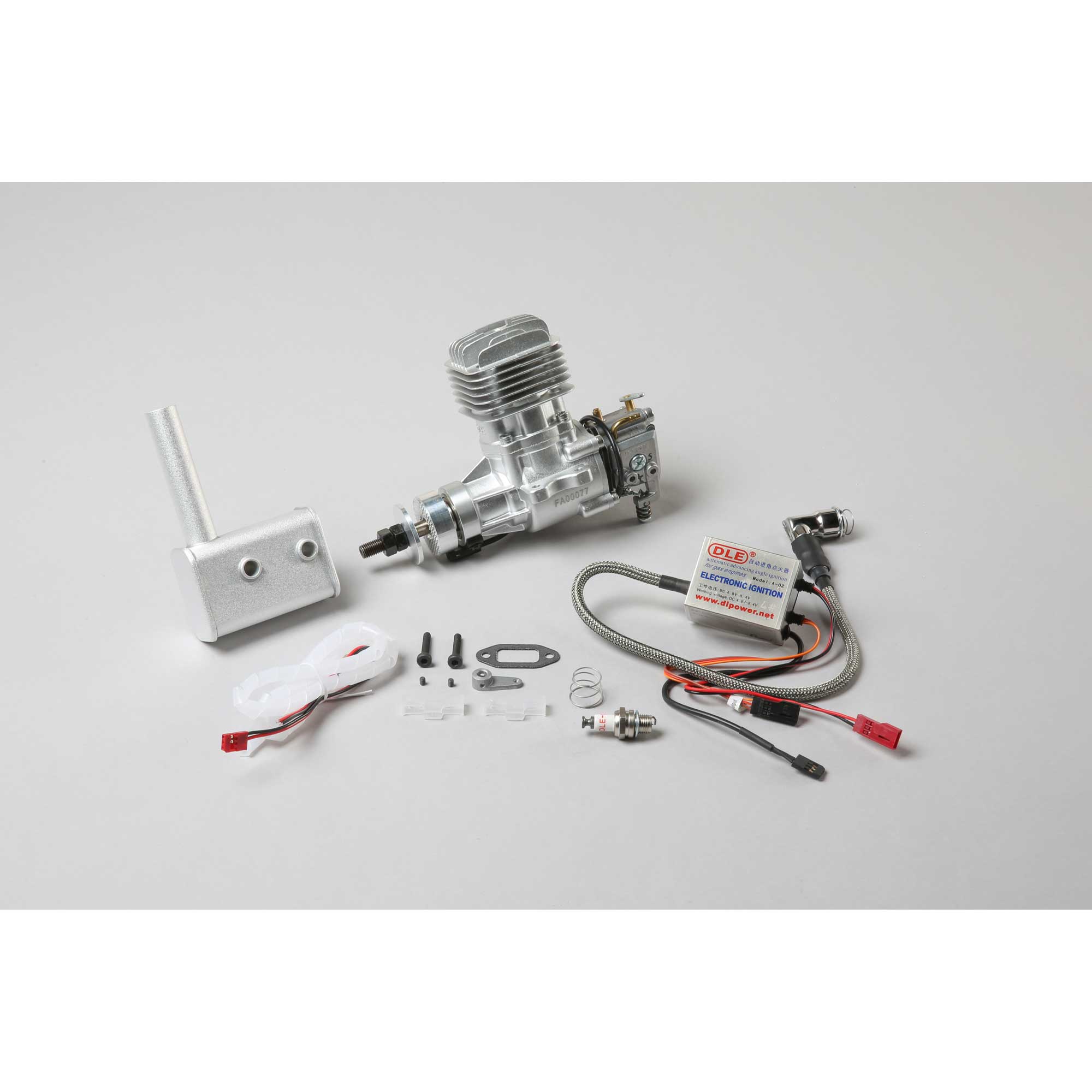

In The Box
  • (1) DLE-20cc Engine
  • (1) Spark Plug
  • (1) Ignition
  • (1) Muffler
  • (1) Muffler Gasket
  • (2) 5x20mm Muffler Bolts
  • (1) Product manual
icon-how-to
Needed to Complete
  • 87+ Octane Gasoline
  • 2-cycle oil (30:1 ratio)
  • 4.8 - 6V NiMH/NiCd, or 6.6V LiFe or 7.4V LiPo battery for ignition
  • NOTE, If ignition module is the A-02 model it has a built-in voltage regulator. Model A-02 designation is located above the word "Ignition" on top of the case
DLE-20 20cc Gas Airplane Engine with Muffler
Quick Links
icon-pdf-download Manuals & Support

Key Features

  • Two sealed bearings on crankshaft-simple design for lighter weight
  • Beam mounting allows easy fit in the same mount as comparable glow engines
  • Aluminum alloy crankcase with advanced CNC machining
  • Rear mounted pumped carburetor ensures easier installation and smooth idling and dependable fuel flow during flights
  • Fully automatic electronic ignition
  • Also includes: spark plug, gasket, bolts, throttle arm extension and manual
  • Two-year limited warranty through Hobby Services beginning at date of purchase

Overview

Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gasoline upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment.

A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE-20 an attractive alternative to glow...and a solid buy for value and performance.

DLE Electronic ignition

Electronic ignition is the no-hassle answer to simpler starts and higher performance.

Smart Charging Technology
Loaded with Extras!

The DLE-20 package includes a muffler, spark plug, gasket, bolts, throttle arm extension & manual.

Smart Charging Technology

Product Specifications

Bore 1.3" (32mm)
Crankshaft Type Threaded
Power Type Gas
Plug Type NGK CM6
Stroke 1.0" (25mm)
Product Height 3.56" (90mm) from center of crankshaft to top of cylinder head
Prop Range 14x10 - 17 x 6
Starter Type Hand Held Starter
Cylinders Single
Product Width 2.37" (60mm) between center of mounting holes
Total Weight 29.9 oz (820 g)
Displacement 1.22 cu in (20cc)
Oil Type & Content 30:1 2-cycle oil mixture
Product Length 5.43" (138mm) from carburetor to prop washer
Ignition Weight 4.23oz (120g)
Muffler Weight 1.76oz (50g)
Engine (Only) Weight 22.93 oz (650g)
Muffler Type Pitts
