D954SW Standard Digital High Torque Steel Gear Servo

Item No. HRC36954
Brand Logo
5 out of 5 Customer Rating

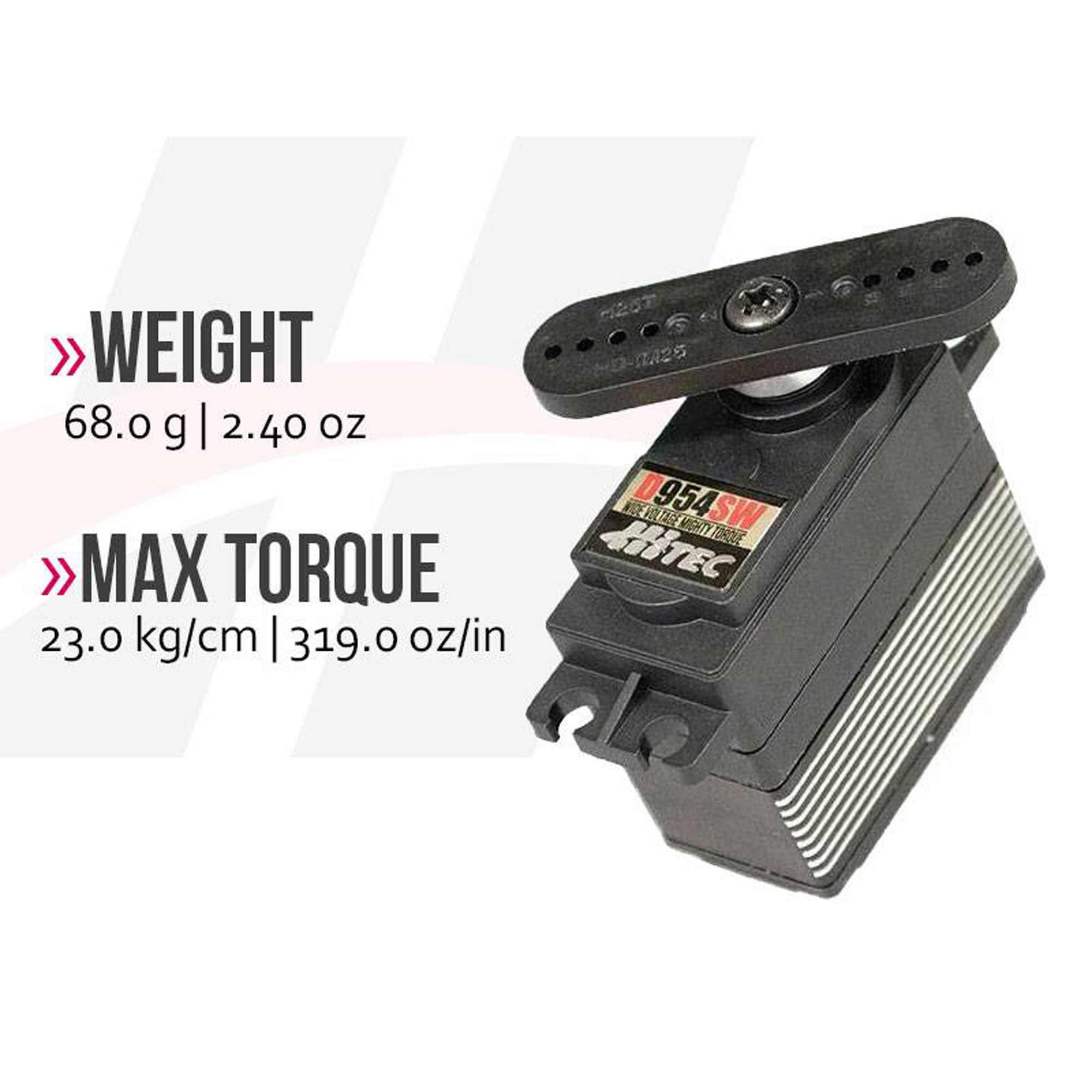

D954SW Standard Digital High Torque Steel Gear Servo

Item No. HRC36954
$99.99
Earn points on this item
In Stock
Selected Store

Product Details

The power of Hitec’s D-Series servos continues with the introduction of the next Premium Class trio: the D930SW, D954SW and D955TW
Key Features
  • Coreless metal brush motor
  • Programmable PWM Digital Amplifier
  • 32-Bit MCU with 12-Bit ADC circuitry
  • End Point Adjustments
  • Dust resistant and splash proof
icon-box
In The Box
  • D954SW Servo
  • 1.7" (44mm) long Double Arm
  • 1.69" (43mm) 4-Point Horn
  • 1.4" (36mm) diameter Round Horn
  • 1.04" (26.5mm) Single Arm Horn
  • 3mm Horn Screw, & Hex Socket Screw
  • Four each Grommets, Eyelets and Mounting Screws
D954SW Standard Digital High Torque Steel Gear Servo

Overview

As with our entire “D” line, these technologically-advanced servos are powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. Their unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. Built with incredibly durable steel gears, the D930SW are the perfect upgrade from our popular HS-7954SH servo. Advancing servo technology and providing superior engineering has always been Hitec’s mission and that continues today as we expand our outstanding D-Series product line.

Highlights of the D-Series Servos



Features

  • Programmable PWM Digital Amplifier
  • 32-Bit MCU with 12-Bit ADC Circuitry
  • 4096 Resolution
  • 1M Cycle Long Life Potentiometer
  • Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
  • Dual Ball Bearing Supported Output Shaft
  • 25-Tooth Output Spline
  • Coreless Metal Brush Motors
  • Nylon Reinforced Plastic Upper and Lower Case
  • Diamond Cut Aluminum Heat Sink Center Case
  • Dust Resistant and Splash Proof Case

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Soft Start Rate
  • Overload Protection
  • Data Save / Load
  • Program Reset

Product Specifications

Programmable Yes
Servo Size Category Standard
Current Draw Idle 30mA
Product Width 0.78 in (20mm)
Product Length 1.57 in (40mm)
Wire Gauge 20 AWG
Current Draw Stall 5,200mA
Servo Operating Voltage 4.8 - 8.4V (HV)
Bearing Dual
Bushing Or Bearing Bearing
Maximum Servo Speed 0.100-0.149 sec
Application 30-40% sport planes, 2 meter+ sailpanes, 30-40% 3D & performance scale aircraft, all 1:8 scale vehicles, 1M & scale sailboats
Max Servo Torque 350-499 oz-in
Product Weight 2.40 oz (68g)
Spline Count 25 Teeth
Product Height 1.46" (37mm)
Servo Type Digital
