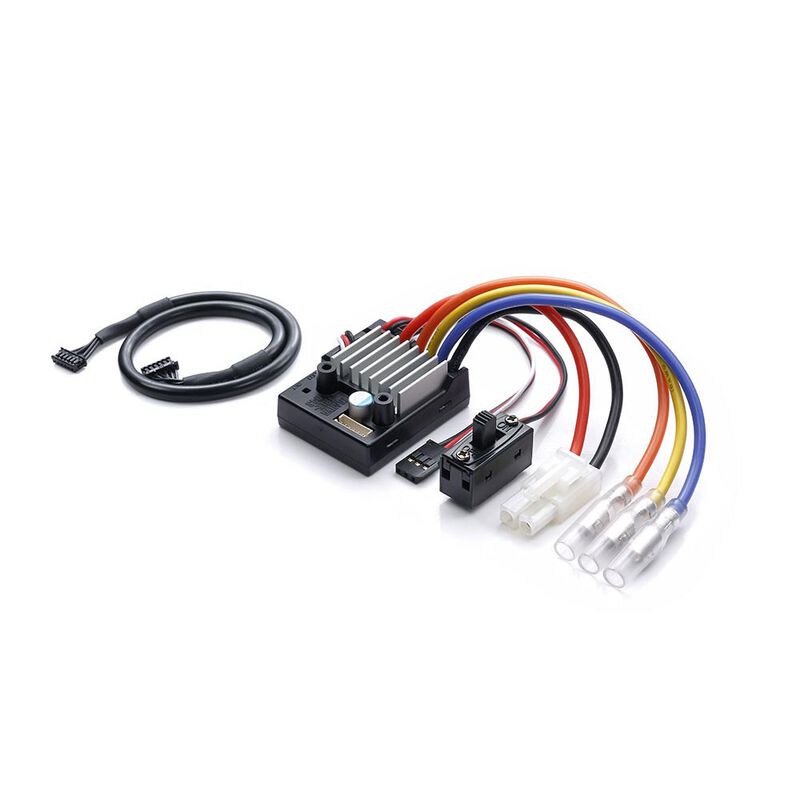

Brushless ESC 04S (Sensored)

Item No. TAM45069
Brushless ESC 04S (Sensored)
Brand Logo
4.1 out of 5 Customer Rating

Brushless ESC 04S (Sensored)

Item No. TAM45069
$67.20
RC Club points earned on this item shown at checkout.
In Stock
Selected Store
The link to Brushless ESC 04S (Sensored) has been copied

Product Details

Quick Links

Features

  • Sensored brushless ESC detects motor rotor positions with precision, enabling more efficient power supply and smoother motor response.
  • Compatible with Tamiya brushless motors (sensored) of 21.5+ turns, and Tamiya brushed motors 25 turns and over.
  • Choose from 10 different settings for both neutral brake and brake, to get your setup just how you want it.
  • Features overheating and overload protection functions to help ensure that your equipment avoids damage.
  • Weight: 47g (including cables)
  • Compatible with Ni-Cd, Ni-MH and Tamiya Li-Fe battery packs.
  • Dimensions: 41.5 x 33.4 x 18mm

Overview

This ESC is designed for use with Tamiya Brushless Motors (Sensored) 15.5T and over, (Aftermarket brands 21.5 and over), and also brushed motors 25T and over. High point, neutral brake and brake settings are individually adjustable, while battery cut-off, reverse and motor modes can be selected. Setup is shown by an LED, and the ESC also features two protection functions.
