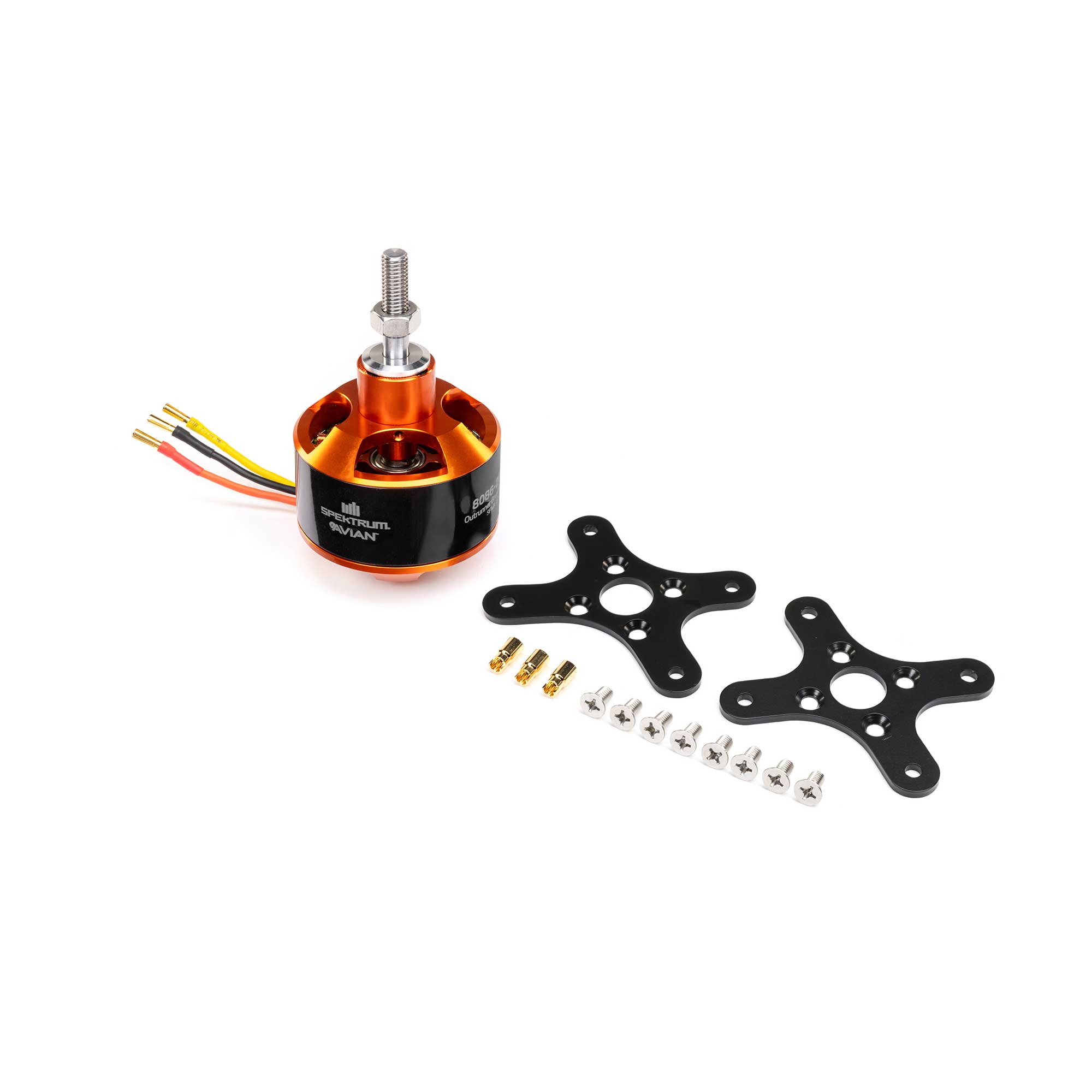

Avian Brushless Outrunner Motor, 8086-200Kv 24-Pole (40cc)

Item No. SPMX-1015
Brand Logo
5 out of 5 Customer Rating

Avian Brushless Outrunner Motor, 8086-200Kv 24-Pole (40cc)

Item No. SPMX-1015
$369.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Key Features
  • Provides the perfect electric upgrade for pilots using 40cc gasoline engines
  • Excellent power and efficiency on 12S power when matched with an 18x10 propeller
  • Powerful and durable rare-earth neodymium magnets
  • 24-pole stator for smooth and precise propulsion
  • Includes all required hardware: preinstalled gold-plated bullet connectors, two aluminum motor mounts, prop adapter, and female ESC connectors
  • Perfect match for the Avian 160A or 200A HV brushless ESCs
icon-box
In The Box
  • (1) Avian Brushless Outrunner Motor, 8086-200Kv 24-Pole
  • (2) Sets of Motor Mounts
  • Hardware
  • Female ESC Connectors
Avian Brushless Outrunner Motor, 8086-200Kv 24-Pole (40cc)

Spektrum Avian Brushless Outrunner Motor Overview

This Spektrum™ Avian brushless outrunner motor provides the perfect upgrade for pilots using 40cc gasoline engines. The combination of superior performance, reliability, and user-friendly features make Spektrum Avian™ brushless motors an excellent choice for your next aircraft project. Using 8-12S LiPo power, and built with powerful rare-earth neodymium magnets, this motor is very efficient when combined with a 18x10 propeller. Combine this motor with a Spektrum Smart Avian ESC for detailed system telemetry, and enjoy confidence-inspiring flights!

Product Specifications

Adjustable Timing No
Application Large scale aircraft
Bushing Or Bearing Bearing
Connector Type 6mm Bullet
Input Voltage 8-12S LiPo
Motor Type Brushless
Number of Poles 24
Outer Diameter 3.2" (81 mm)
Product Length 3.4" (86 mm)
Product Weight 30.7 oz (871g)
RPM/Volt (Kv) 200Kv
Shaft Diameter 0.39" (10 mm)
