Brand Logo
4.5 out of 5 Customer Rating

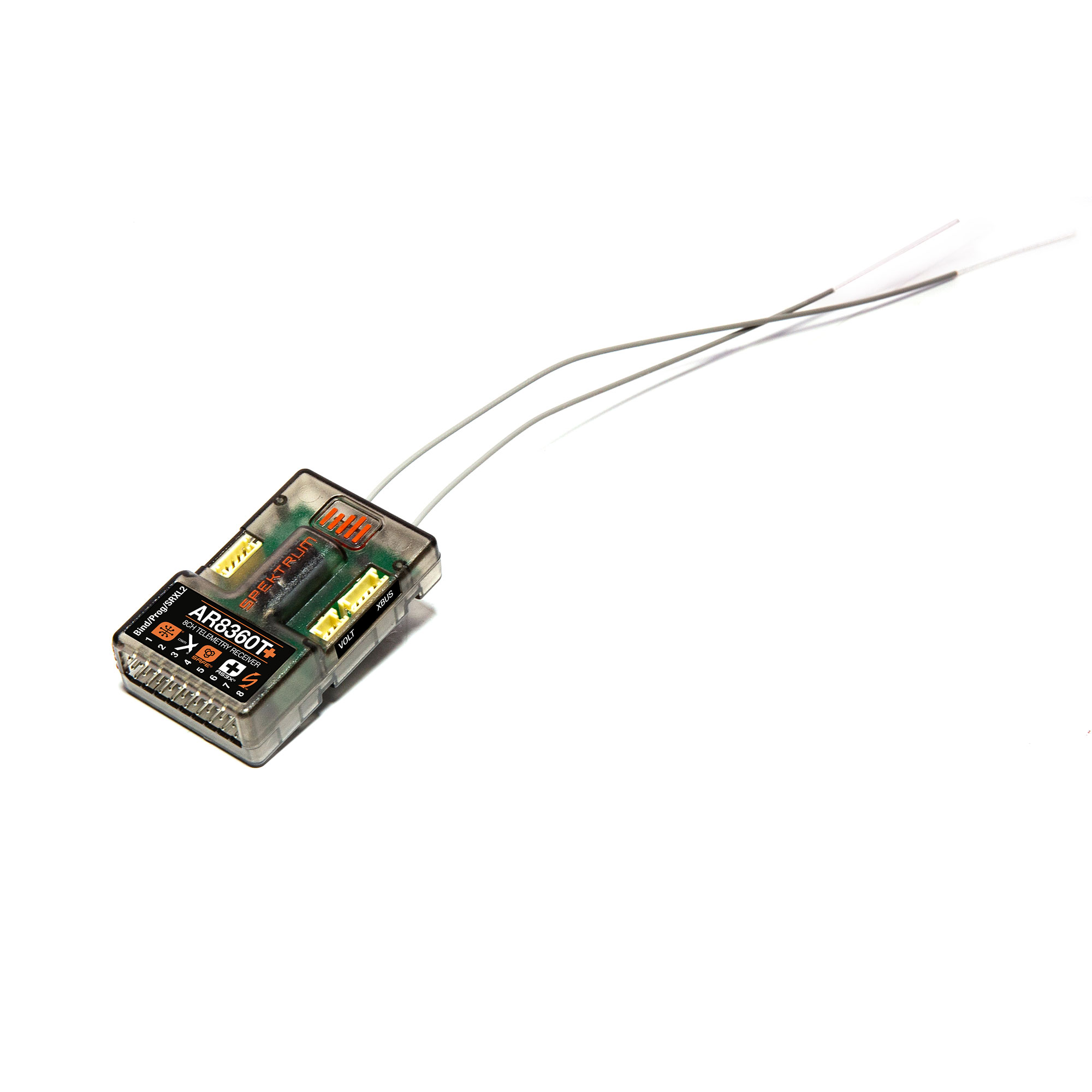

AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver

Item No. SPM-1033
Brand Logo
4.5 out of 5 Customer Rating

AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver

Item No. SPM-1033
$129.99
RC Club points earned on this item shown at checkout.
Select Options
0 Item Selected Items Selected
12" Aircraft Telemetry Extension
SPM-1033 SPMA9551
12" Aircraft Telemetry Extension
In Stock
$12.99
24" Aircraft Telemetry Extension
SPM-1033 SPMA9552
24" Aircraft Telemetry Extension
In Stock
$13.99
0 Item Selected Items Selected
SRXL2 DSMX Remote Serial Telemetry Receiver
SPM-1033 SPM4651T
SRXL2 DSMX Remote Serial Telemetry Receiver
In Stock
$45.99
SRXL2 DSMX Remote Receiver
SPM-1033 SPM9747
SRXL2 DSMX Remote Receiver
In Stock
$39.99
Transmitter/Receiver Programming Cable: USB Interface
SPM-1033 SPMA3065
Transmitter/Receiver Programming Cable: USB Interface
In Stock
$24.99
0 Item Selected Items Selected
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

The Spektrum™ AR8360T+ 8-Channel AS3X+/SAFE Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. The AR8360T+ is a full-range 8-channel receiver with built-in AS3X+® and SAFE® stabilization. The all-new AS3X+ stabilization algorithm creates better flight performance, increased sensor accuracy, data rate, and provides pilots with a generationally different feel compared to AS3X. There is no delay in control response or limits on control throws. You'll simply feel like you're flying an expertly tuned model that does exactly what you want.
Key Features
  • Compatible with all Spektrum™ DSM2 and DSMX transmitters
  • Built in AS3X+ Stabilization System with SAFE flight envelope protection
  • Smart Transmitter Model File Download Support
  • Compact footprint fits most parkflyer size, sport class, and giant scale models
  • Features full range telemetry, integrated barometer to provide altitude, and vario telemetry data without the need of additional sensors
icon-box
In The Box
  • (1) AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver
  • (1) Product Manual
icon-how-to
Needed to Complete
  • (1) Spektrum Telemetry Capable Transmitter
AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver

Spektrum AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver Overview

The AR8360T+ features a full-range telemetry and integrated barometer to provide altitude and vario telemetry data without additional purchase. Included XBUS and temperature ports can be used to add additional telemetry sensors available separately. It also features an SRXL2 port for an SRXL2 Remote Receiver (SPM9747 or SPM4651T), available separately, to add additional RF path redundancy. An SRXL2/Bind/Program/Batt servo header is available to connect Smart devices, program and update the receiver, bind with a traditional bind plug, or connect a battery. The AR8360T+ also features a bind button for easy binding with no plugs necessary and offers both SmartSafe™ technology and Hold Last, as well as preset failsafe types set through forward programming.

Please Note:

The DX7S and DX8 Gen 1 Spektrum Transmitters will not display Altitude or Variometer telemetry with the AR8360T receiver.

These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, Non-computer transmitters.

Using this receiver in turbine powered aircraft models is not recommended.

Spektrum AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver Features

  • Bind button allows for easy binding and eliminates the use of bind plug
  • Two external antennas will ensure secure RF coverage from all angles of the aircraft
  • Additional RF path redundancy with an additional SRXL2 Remote Receiver (sold separately)
  • End pin output pins for easy and compact installation
  • AS3X+ and SAFE set up through forward programming directly from your Spektrum transmitter*
  • Ready to use with Spektrum Smart ESCs for one-wire telemetry data without the need of modules, links and wires
  • Forward Programming capable for setting individual failsafe parameters per channel and more
NEXT GENERATION IN FLIGHT STABILIZATION
NEXT GENERATION IN FLIGHT STABILIZATION

The all-new AS3X+ features a vastly improved stabilization algorithm that has been rigorously tested by experts throughout the hobby. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until you get your aircraft locked in. We've been able to set up most aircraft in less than 5 minutes including the first flight tuning.

Key AS3X+ improvements include:

  • Stop Lock and Release Rate parameters
  • Heading Hold improvements
  • Improved gryo filtering
  • Canard and Thrust Vectoring Support
SMART TRANSMITTER FILES SUPPORT
SMART TRANSMITTER MODEL FILES SUPPORT

Smart Transmitter Model Files is a new feature on the AR8360T+ receiver that makes transmitter programming the easiest has ever been. It consists of a set of transmitter configuration parameters that are stored within the receiver's model file. When binding to a receiver containing one of these model files, the user will be prompted to download said model file and overwrite the currently selected transmitter model with the one stored on the receiver. This will provide the user with an easy and simple way to acquire a transmitter model setup for their BNF model without the need to set it up themselves or search for and download the corresponding model online.

Note: Supported transmitters currently are the iX20, iX14, and NX transmitters with the latest firmware updates.

FORWARD PROGRAMMING
AS3X+ FORWARD PROGRAMMING

You can configure the AR8360T+ receiver wirelessly, directly from any compatible Spektrum™ transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments.

SAFE® TECHNOLOGY
SAFE® TECHNOLOGY

SAFE® (Sensor Assisted Flight Envelope) technology flight modes help pilots avoid over-controlling their models. SAFE uses AS3X+ to deliver normal flight performance, but with limited bank and pitch angles to prevent the aircraft from getting in extreme attitudes.

SMART TELEMETRY
SMART TELEMETRY

To enjoy the full benefits of Smart™ technology, use the AR8360T+ receiver with a Smart ESC and telemetry capable Spektrum DSMX® transmitter. Vital telemetry data such as current, voltage, temperature and RPM is sent directly to your transmitter in real time. For more information on Smart Technology please visit our Spektrum Smart Technology page.

INTEGRATED BAROMETER
INTEGRATED BAROMETER

The Spektrum™ AR8360T+ receiver features an integrated barometer (built-in pressure sensor) to provide altitude and vario telemetry data without the need to purchase additional sensor modules.

SAFE® PANIC RECOVERY
SAFE® PANIC RECOVERY

Sometimes called a bailout mode, Panic is a SAFE Stabilization mode that can return an airplane to level flight from any attitude. It is usually assigned to a momentary button.

Spektrum AS3X+ Receiver Firmware Update Guide

Product Specifications

Antenna Length 6.1" (155 mm)
Application Airplane, Sailplane
Band 2.4GHz
Bind Method Bind Button
Channels 8
Failsafe Yes
Forward Programming Yes
Input Voltage 3.5 - 9V
Integrated Variometer Yes
Modulation DSMX
Product Application Air, Sailplanes
Product Height 0.59" (15 mm)
Product Length 1.92" (49 mm)
Product Weight 0.56oz (16g)
Product Width 1.2" (30 mm)
Range Full
Remote Receiver Ports 1
Resolution 2048
Serial Out SRXL2
Technology AS3X+, SAFE
Telemetry Yes
Telemetry Range Full
