AR20410T 20-Channel PowerSafe Receiver with Synapse AS3X+ and SAFE Stabilization Module

Item No. SPMAR20410TS
Backorder
Brand Logo
3.2 out of 5 Customer Rating

AR20410T 20-Channel PowerSafe Receiver with Synapse AS3X+ and SAFE Stabilization Module

Item No. SPMAR20410TS
$499.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
Back Order
Selected Store

Product Details

Key Features
  • Patented PowerSafe™ redundancy system with dual battery input ports with IC3 connectors. Perfect for power-hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
  • Innovative power management system designed with sleep mode allowing pilots to remotely power on/off from the transmitter
  • USB-C port for easy product registration and firmware updates
  • The all-new AS3X+ stabilization algorithm creates better flight performance, increased sensor accuracy and data rate compared to AS3000, and provides pilots with a generationally different feel compared to AS3X
  • Intuitive forward programming means no memorizing complex maneuvers – just step-by-step guidance
icon-box
In The Box
  • (1) AR20410T 20-Channel PowerSafe Receiver
  • (1) SPM4651T SRXL2 Remote Serial Telemetry Receiver
  • (3) SPM9747 SRXL2 DSMX Remote Receivers
  • (1) 6" SRXL2 Remote Receiver Extension
  • (1) 12" SRXL2 Remote Receiver Extension
  • (1) 24" SRXL2 Remote Receiver Extension
  • (1) 36" SRXL2 Remote Receiver Extension
  • (2) Battery IC3 Connectors
  • (2) Charge Receptacles
  • (1) Aircraft Telemetry Volt Sensor
  • (1) Soft Switch
  • (1) Instruction Manual
  • (1) Synapse AS3X+ / SAFE Flight Stabilization Module
  • (3) mounting screws
AR20410T 20-Channel PowerSafe Receiver with Synapse AS3X+ and SAFE Stabilization Module

Spektrum AR20410T 20-Channel PowerSafe Telemetry Receiver Features

  • Patented PowerSafe™ redundancy system with dual battery input ports with IC3 connectors. Perfect for power-hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
  • Innovative power management system designed with sleep mode allowing pilots to remotely power on/off from the transmitter
  • Fast boot recovery technology allows the gyro system to be rebooted in flight upon any electrostatic discharge or power interruption, providing pilot control within milliseconds using a saved stabilization calibration
  • Regenerative servo support for any number of servos
  • Forward programming for easy adjustments to failsafe settings, servo frame rate settings, AS3X+ settings, and more
  • USB-C port for easy product registration and firmware updates
  • 12V capable for use with 12-volt servo applications (must be activated via Forward Programming)
  • Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed
  • Integrated Black Box telemetry log saves all telemetry data automatically when a Micro SD card is installed (Micro SD card not included)
  • Integrated status LED provides helpful information during start-up, including warnings and mode indicators
  • SRXL2 connectivity for easy, one-wire connection to supported devices
  • Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need for modules, links, and wires
  • Receiver pack energy, voltage sensor, and flight log telemetry data available without the need for additional sensors
  • Temperature, imbalance, cycles, and cell voltage telemetry data available when using Smart batteries
  • When using an SPM4651T remote receiver, there is full-range telemetry with an integrated barometer providing altitude and vario telemetry without additional modules
  • Included Momentary Pushbutton allows booting or shutting down the system. However, shutting down the system requires a specific press-and-hold pattern to prevent accidental shutdowns in case the button fails or disconnects. The switch itself must not be substituted. Additionally, there is a power switch on the receiver itself that can be used instead
  • Rubber grommet hard mounts and minimalistic labeling help produce the cleanest model setups
  • Capable of high-speed 11ms frame rates. It can be boosted to 5.5ms, if the servo supports it, for improved stabilization when using Synapse
  • Binding is easier than ever, with four options to initiate the bind process
  • Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors, and X-bus for telemetry sensor expansion
  • Compatible with new Synapse AS3X+ / SAFE Flight Stabilization Module (SPMAS6000)
  • Compatible with all Spektrum DSMX transmitters
  • Not compatible with DSM2 AIRMOD JR Module (SPMMSJR720)

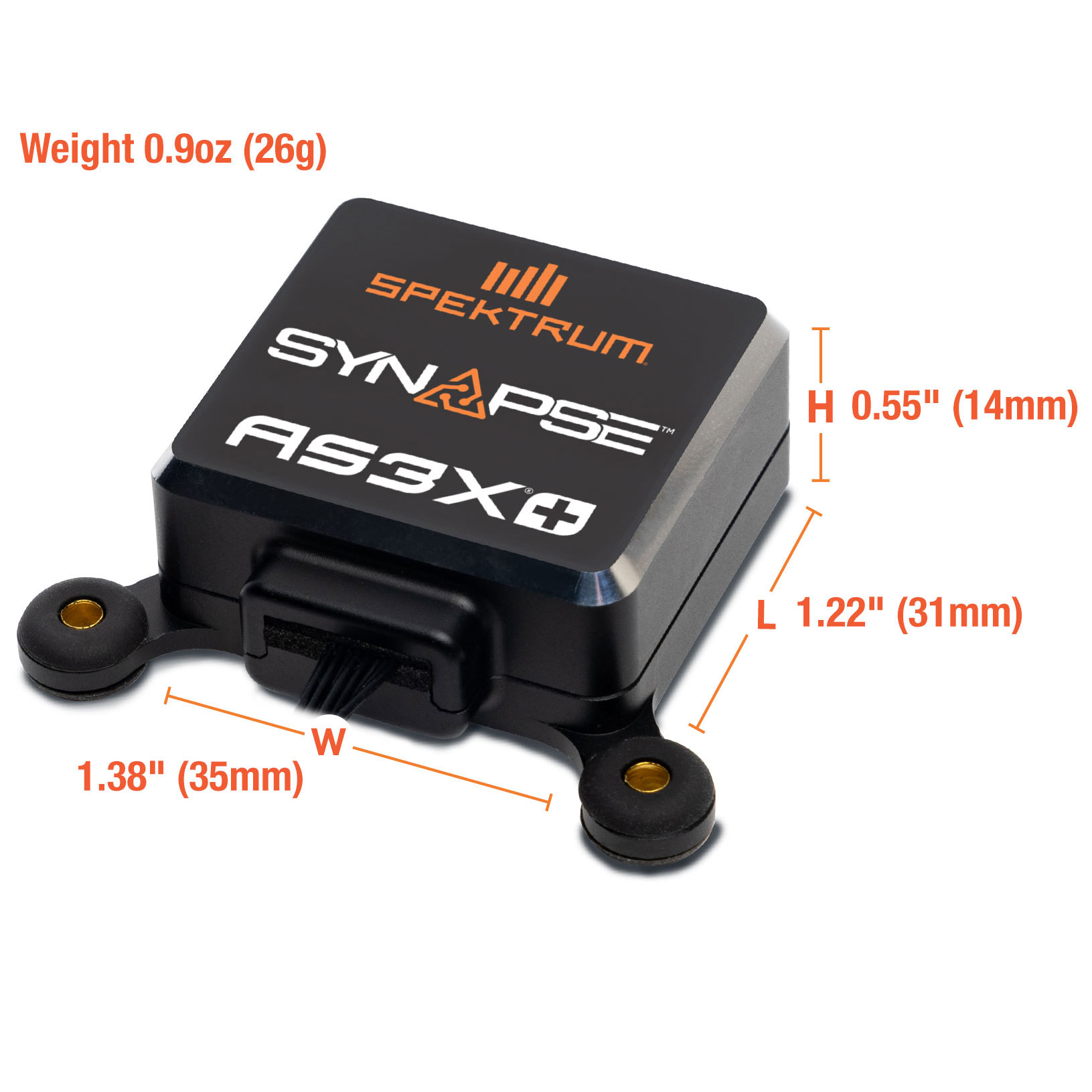

Spektrum™ Synapse™ Flight Stabilization Module Features

  • The all-new AS3X+ stabilization algorithm provides the ultimate in-flight performance and feel
  • 20 stabilized outputs with increased sensor accuracy and data rate
  • Thrust vector and canard support with Spektrum’s new multi-gyro system (up to four independent gyro systems in one device)
  • Intuitive forward programming makes Synapse the easiest system to set up without the need for any external device
  • Machined aluminum and anodized case housing with three grommeted hard mounts
  • Gyro sensor is encased in sound and vibration reduction insulation designed for turbine applications
  • New parameters and new menus with forward programming
  • New Internally mounted locking cable design prevents any possible in-flight disconnection

Overview

The Spektrum™ AR20410T PowerSafe™ receiver is a feature-packed 20-channel receiver with full-range telemetry. Spektrum PowerSafe receivers are designed for models using numerous servos and accessories that draw excess current, such as those found on giant-scale airplanes and jet models. Now, with innovative features like fast boot recovery, regenerative servo support, remote sleep mode, and the all-new Synapse AS3X+ module.

The revolutionary Spektrum Synapse™ Flight Stabilization Module is vastly improved over its predecessor, the AS3000. Equipped with the all-new AS3X+ stabilization algorithm, the Synapse has been rigorously tested by experts throughout the hobby and has been put to the ultimate test. Spektrum has taken years of customer feedback on the AS3000 and purpose-built the Synapse with turbine aircraft and giant scale in mind. Its lightweight design and innovative features make it the ideal choice for pilots needing the best in-flight stabilization in today’s world of complex models.

Historically, pilots had to reduce the performance of stabilization systems by lowering gains to fine tune to their personal feel. Now, our new parameters of stop lock and release rate allow you to customize the feel of the gyro system while providing optimal stabilization performance.

With the Synapse we are introducing the ability to adjust AS3X+ and SAFE settings with 10 customizable channels for all flight controls. This allows pilots to precision tune their aircraft while in flight. Additionally, we’ve also added support for configuring auxiliary outputs, which means you can now stabilize outputs tied to mixes or other outputs that are separate from your traditional wing types. For example, if you had flaps that were set up to become ailerons using a mix and a flip of a switch, you can now configure those surfaces to have stabilization as well.

We've added support for multiple gyro systems within a single device. This provides the equivalent functionality of running multiple gyro systems or flight controllers within one system, allowing you to add stabilization to unique outputs such as thrust vectoring or canards without the need of buying an additional gyro. Changes were made to the gyro filtering for improved response time. This allowed us to essentially double the effectiveness of our gains in some cases. Ultimately, this helps to further increase aircraft stability in rough air.

Lastly, significant improvements were made to how heading hold mode operates. Now, transitions between user inputs and heading hold are more seamless which provides a more natural feel in flight. With the Synapse we've isolated the sensor in Synapse to combat against acoustic interference that might be seen in some turbine applications. All of that is wrapped in a beautiful aluminum case with three vibration-damped mounting points.

Paired with the new Spektrum AR20410T PowerSafe receiver, it is an incredible combo of advanced stabilization and cutting-edge electronics.

Video Overview



DESIGNED FOR GIANT SCALE AND TURBINE APPLICATIONS
DESIGNED FOR GIANT SCALE AND TURBINE APPLICATIONS

Spektrum has taken years of customer feedback on the AS3000 and purpose-built the Synapse and AS3X+ algorithm with turbine and giant scale aircraft in mind. We’ve vastly improved the flying characteristics, designed the system to operate flawlessly in noisy turbine environments and given you 20 stabilized outputs. Now, you can genuinely set your new model’s gyro up in less than 5 minutes without a PC, cables or stick position commands. It’s so easy, anyone can do it!



NEXT GENERATION IN FLIGHT STABILIZATION
NEXT GENERATION IN FLIGHT STABILIZATION

The all-new AS3X+ features a vastly improved stabilization algorithm that has been rigorously tested by experts throughout the hobby. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until you get your aircraft locked in. We’ve been able to set up most aircraft in less than 5 minutes including the first flight tuning.

Key AS3X+ improvements include:

  • Stop Lock and Release Rate parameters
  • Heading Hold improvements
  • Improved gryo filtering
  • Canard and Thrust Vectoring Support



NOW WITH SAFE
NOW WITH SAFE

You now have access to our SAFE technology at the flip of a switch which can potentially turn any disastrous situation into a complete recovery. Have the confidence and seconds you need to regroup after an orientation loss or distraction at the field. SAFE can even be selected for the failsafe position with predefined bank and pitch angles. SAFE has saved thousands of aircraft and can potentially save yours.



THRUST VECTOR AND CANARD SUPPORT
THRUST VECTOR AND CANARD SUPPORT

Our new multi-gyro system provides support for thrust vectoring and canards. This offers the equivalent functionality of running multiple gyro systems or flight controllers within one system. No additional gyro units needed!



ALUMINUM CASE
ALUMINUM CASE

The Synapse case is machined aluminum with three grommeted hard mounts for easy installation in most aircraft



ACOUSTIC ISOLATION
ACOUSTIC ISOLATION

Synapse’s gyro sensor is encased in a sound and vibration reduction insulation designed for turbine applications. While other systems require third party sound damping, we’ve designed Synapse to work flawlessly in most turbine applications.



LOCKING SENSOR CABLE
LOCKING SENSOR CABLE

Synapse’s sensor cable is now designed with a locking connector on the RX side and the sensor side is internally mounted inside Synapse. This ensures that your synapse remains connected to your receiver regardless of in-flight vibrations.



SLEEP MODE
SLEEP MODE

The AR20410T receiver features an advanced power management system designed with sleep mode allowing pilots to remotely power on/off from the transmitter. This exciting new feature allows you to power up your model’s electronic system at the press of a button. No hatch removal or physical switches are needed, and it is extremely convenient for a day at the flying field.



FAST BOOT RECOVERY
FAST BOOT RECOVERY

The AR20410T PowerSafe receiver features innovative Fast Boot technology that allows the Synapse system to reboot in flight upon power interruption. The technology skips various start up checks and provides the pilot control instantly using a saved stabilization calibration.



“BLACK BOX” TELEMETRY LOGGING
“BLACK BOX” TELEMETRY LOGGING

When a micro-SD card is inserted into the receiver, flight information will be logged for later retrieval. This includes flight log data, battery status and other important telemetry stored over time. This can be helpful for diagnosis performance.

Black Box captures the following data:

holds, frames, fades_0, fades_1, fades_2, fades_3, rssi_dBm, rssi_Pct, fp_volt, rpm_us, rxVoltage, currentA, currentB, voltsA, voltsB, chargeUsedA, chargeUsedB, tempF, altitudeFt, tempC, altitudeM

12 Volt and Regenerative Servo Support
12 Volt and Regenerative Servo Support

The AR20410T Supports 12v servo operation and can handle any number of regenerative servos. A huge leap forward in support for future technology improvements in the servo world.



SRXL2 SUPPORT
SRXL2 SUPPORT

Easily connects and communicated with any of Spektrum’s SRXL2 products such as the Spektrum SKY and our Smart ESCs. Additionally, some third party sensors and modules will use SRXL2.



USB C UPDATING AND REGISTRATION
USB C UPDATING AND REGISTRATION

Easily download, install updates and register your receiver on our Spektrum community website. Special cables are no longer required!



MOMENTARY PUSHBUTTON
MOMENTARY PUSHBUTTON

The included momentary pushbutton is designed to be installed in your aircraft to allow booting and shutting down the system. With a unique press and hold pattern, accidental shutdowns are extremely unlikely. Additionally, the AR20410T receiver has its own power switch that can be used instead.



FOUR BINDING OPTIONS
FOUR BINDING OPTIONS

Binding is easier than ever with four ways to initiate the binding process. Bind button, Forward Programming, use of a bind plug and remote receiver button.



Product Specifications

Manufacturer # 605482182512
Band 2.4GHz
Input Voltage 4V–12.6V
Product Height 0.75" (19 mm)
Resolution 2048 (4096 for Stabilization)
Dimensions Synapse Lead Length: 9" (229 mm)
Modulation DSMX
Telemetry Yes
Battery Sold Separately
Product Length 2.4" (61 mm)
Connector Wire Length (2) IC3 Input Connectors with Smart Technology
Product Width 2.72" (69 mm)
Remote Receiver Ports 4
Technology AS3X+, SAFE
Bind Method Bind Button, Bind Plug
Application Airplane
Failsafe Yes
Product Weight 2.82 oz (80g)
SD Card/Airware Capable Yes
Channels 20
Integrated Variometer Yes
