Ammo Inrunner Brushless Motor, 36-50-2300Kv

Item No. GPMG5290
Ammo Inrunner Brushless Motor, 36-50-2300Kv
Discontinued
Brand Logo
3.8 out of 5 Customer Rating

Ammo Inrunner Brushless Motor, 36-50-2300Kv

Item No. GPMG5290
This Item is No Longer Available
Selected Store

Product Details

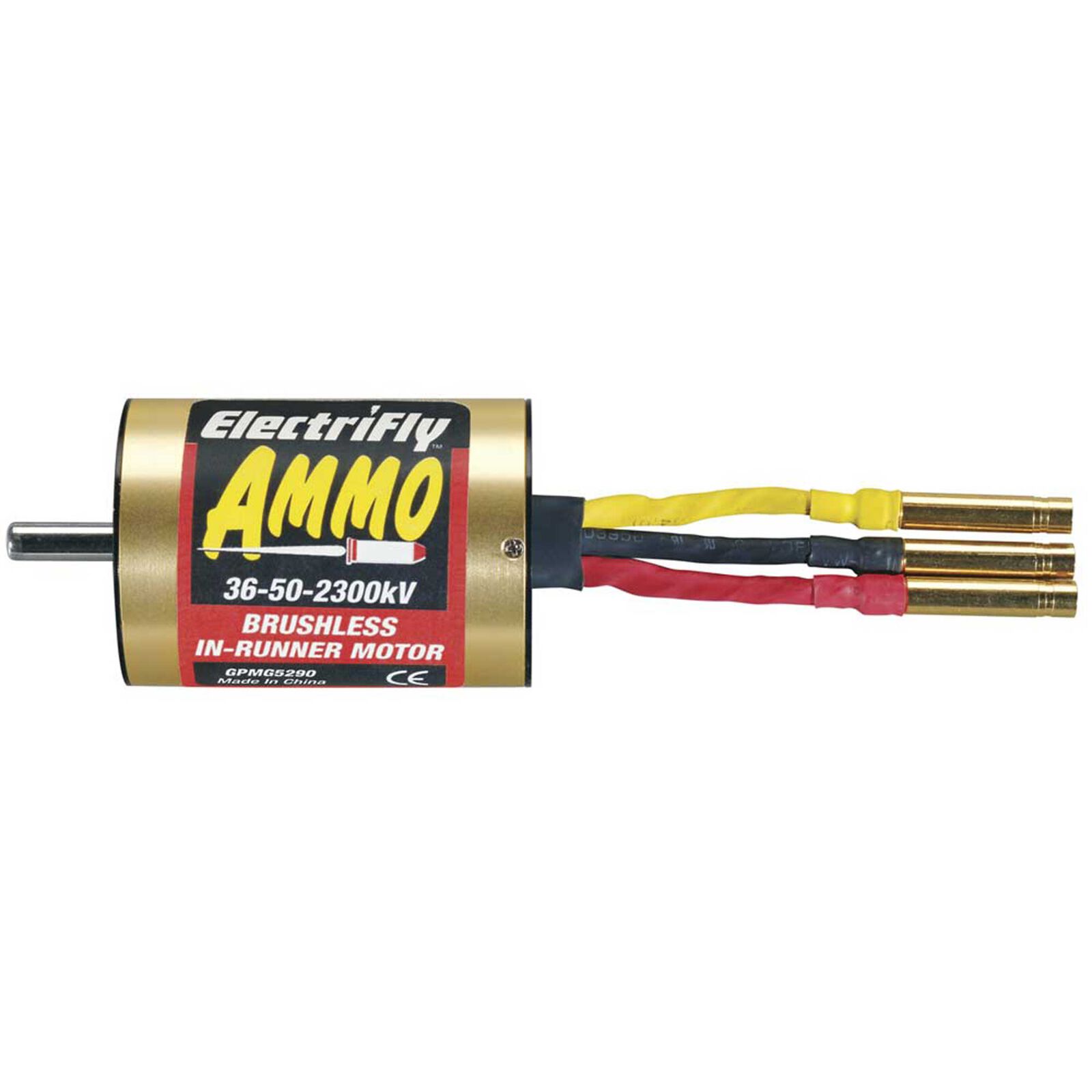

This is the Great Planes ElectriFly Ammo 36-50-2300kV Brushless In-Runner 2 Pole Electric Motor.
Key Features
  • Brushless, slotless Ammo In-Runner Motors offer an incredible power- to-weight advantage and almost twice the efficiency of Brushed motors
  • Ideal for direct or gear drive use; Up to 89% efficient and virtually maintenance-free; no brushes to wear out
  • Powered by "rare earth" Neodymium magnets for high torque and unmatched heat resistance
  • Pre-installed gold plated connectors for plug and play operation when used with compatible ElectriFly Silver Series Brushless speed controls
  • Double sealed bearings
  • Two year warranty
icon-box
In The Box
  • (1) ElectriFly Ammo 36-50-2300kV Brushless Electric Motor with connectors
  • (4) M3x5 Machine Screws
icon-how-to
Needed to Complete
  • (1) ESC
  • (1) Propeller: suggested sizes include 10x7E-13x8E
Quick Links
icon-pdf-download Manuals & Support

Product Specifications

Application Airplane
Number of Poles 2
Product Weight 8.6oz (243g)
Recommended Prop Range 10x7E-13x8E
Shaft Diameter 0.197" (5 mm)
Adjustable Timing No
Connector Type 4mm Bullet
Product Length 1.97" (50 mm)
Input Voltage 14.8-18.5V
RPM/Volt (Kv) 2300 rpm/V
Shaft Length 0.591" (15 mm)
Motor Design Inrunner
Outer Diameter 1.42" (36 mm)
Maximum Burst Current 100A
Maximum Continuous Current 60A
Motor Type Brushless
