Product Details

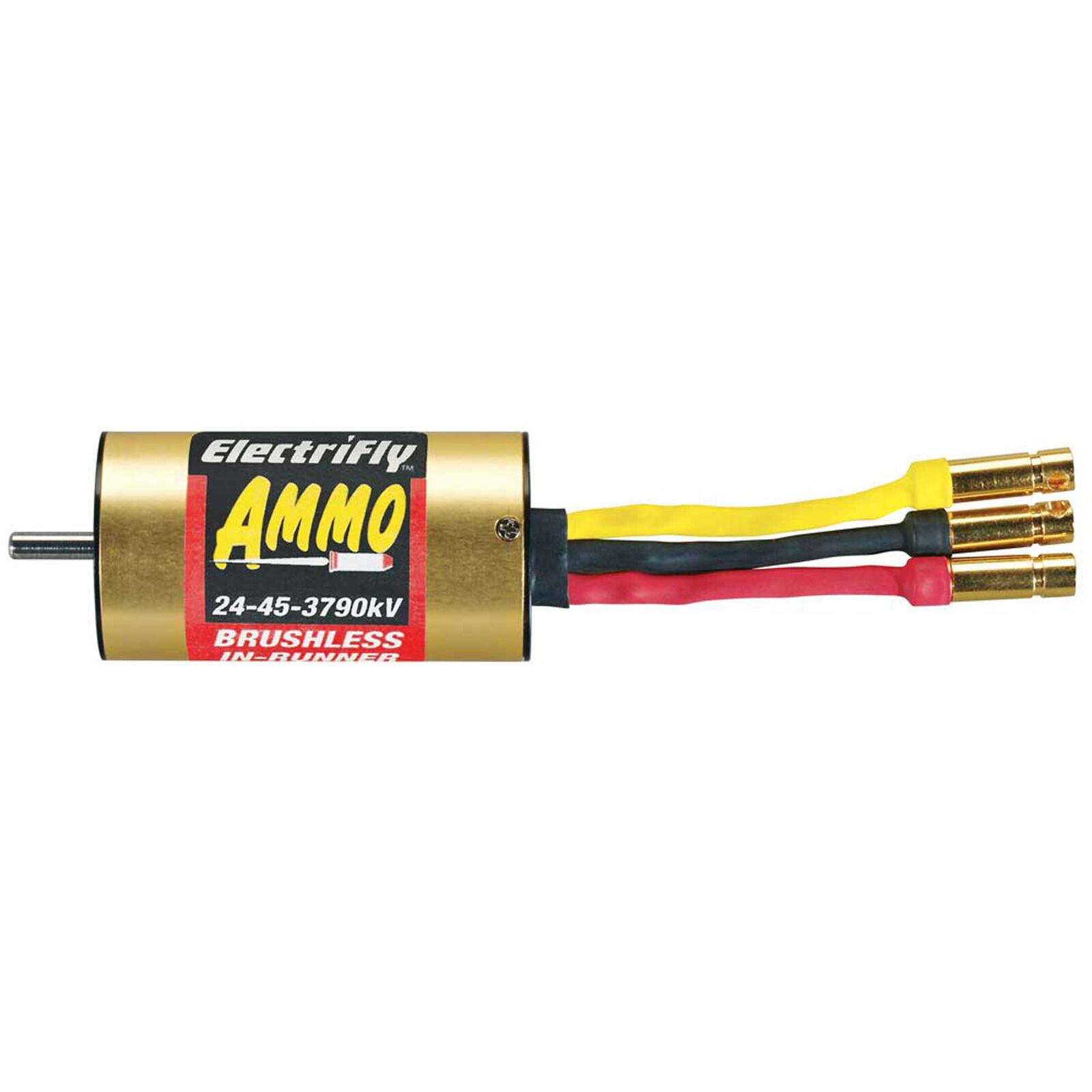

This is the Great Planes ElectriFly Ammo 24-45-3790kV Brushless In-Runner 2 Pole Electric Motor.
Key Features
  • Incredible power-to-weight advantage and almost twice the efficiency of Brushed motors
  • Ideal for direct or gear drive use
  • Up to 89% efficient and virtually maintenance-free; no brushes to wear out
  • Powered by "rare earth" Neodymium magnets for high torque and unmatched heat resistance
  • Pre-installed gold plated connectors for plug and play operation when used with compatible ElectriFly Silver Series Brushless speed controls
  • Double sealed bearings
  • Two year warranty
icon-box
In The Box
  • (1) ElectriFly Ammo 24-45-3790kV Brushless Electric Motor
  • (4) M3x5 machine screws
icon-how-to
Needed to Complete
  • (1) ESC
  • (1) Propeller, suggested sizes are 10x3.5S-12x6S
Quick Links
icon-pdf-download Manuals & Support

Product Specifications

Motor Type Brushless
Outer Diameter 0.945" (24 mm)
RPM/Volt (Kv) 3790
Shaft Length 0.472" (12 mm)
Adjustable Timing No
Motor Design Inrunner
Connector Type 3.5mm Bullet
Product Length 1.77" (45 mm)
Application Airplane
Number of Poles 2
Product Weight 3.6oz (101g)
Recommended Prop Range 10x3.5S-12x6S
Shaft Diameter 0.118" (3 mm)
