The Spektrum A6330 high-torque, high-speed brushless servo delivers amazing performance for a wide range of vehicles and aircraft.
Key Features
  • Brushless motor provides long lasting durability and impressive power and speed
  • High Voltage (HV) capable (6.0-8.4v input range)
  • Durable and long lasting brushless motor
  • Dual bearing supported drive train helps maximize smooth operation
  • Over Current and Temperature protection
A6330 Digital HV Brushless High Torque High Speed Metal Gear Aircraft Servo
Quick Links
icon-pdf-download Manuals & Support

Features

  • Brushless motor provides long lasting durability and impressive power and speed
  • High Voltage (HV) capable (6.0-8.4v input range)
  • Outstanding torque and speed in a standard servo size (248 oz-in and .10 sec/60° @8.4v)
  • Durable and long lasting brushless motor
  • Low wear and tightly meshed all metal gear train
  • Dual bearing supported drive train helps maximize smooth operation
  • Aluminum center servo case helps keep operating temperatures low
  • Soft start helps prevent component and airframe damage during un-intentional initializations
  • Over Current and Temperature protection
  • Helpful initialization start tone lets pilot know when the servo is ready
  • Integrated servo failsafe holds last known position if signal is lost and power is maintained
  • Frequency : 50-400hz

Overview

The Spektrum A6330 high-torque, high-speed brushless servo delivers amazing performance for a wide range of vehicles and aircraft. High-Voltage (HV) capable, the A6330 can produce an impressive 248 oz-in of torque (17.8kg) and a remarkable 0.10 sec/60 degree transit speed with 8.4V input. The Low-wear, all metal gear drive train is powered by a long-lasting brushless motor and supported with dual ball bearings for smooth operation. A strong metal case adds durability and enhanced heat dissipation.

Other features include: integrated servo failsafe, over-current and over-temperature protection, long 18 inch (457mm) lead for easy installation, initialization start tone to indicate servo readiness, and soft start to prevent damage during unintended initializations. Like all Spektrum 6300 Series servos, the A6330 delivers reliability, consistency and performance that are second to none.

Product Specifications

Application Airplane
Bearing Dual Ball Bearing
Bushing Or Bearing Bearing
Connector Type Universal
Gear Type Metal
Input Voltage 6 - 8.4V
Maximum Servo Speed 0.13 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.10 sec/60 deg @ 8.4V
Maximum Servo Torque 126.6 oz-in (9.11 kg-cm) @ 6.0V; 178 oz-in (12.82 kg-cm) @ 7.4V; 248 oz-in (17.86 kg-cm) @ 8.4V
Motor Type Brushless
Overload Protection Yes
Product Application Air

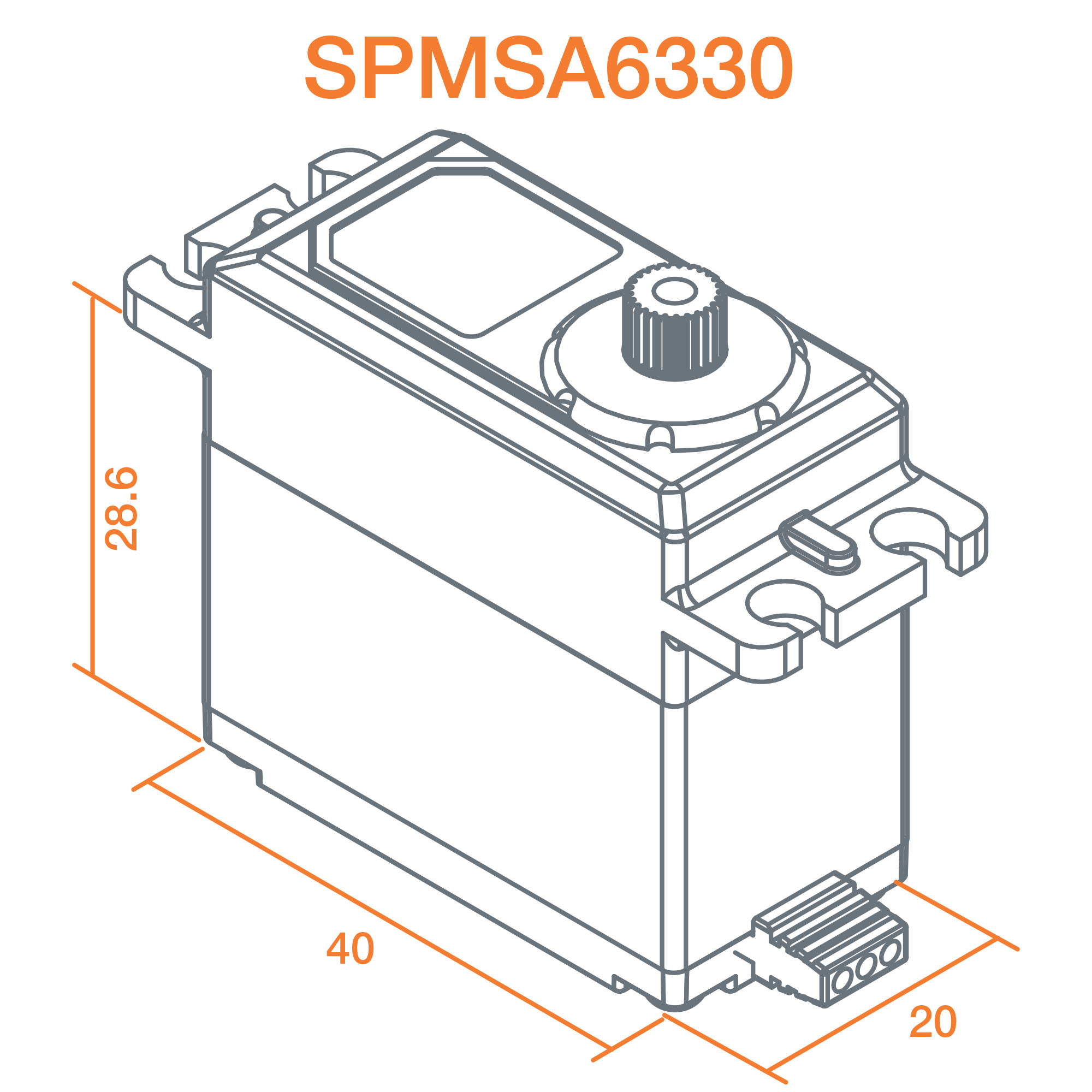

Product Height 1.56" (40 mm)
Product Length 1.58" (40 mm)
Product Weight 2.25oz (71g)
Product Width 0.79" (20 mm)
Programmable No
Rotation Range 120 degree
Servo Operating Voltage 6.0 - 8.4V (HV)
Servo Size Category Standard
Servo Type Digital
Spline Count 23 - Tooth
Water-Resistant No
Wire Gauge 22 AWG
