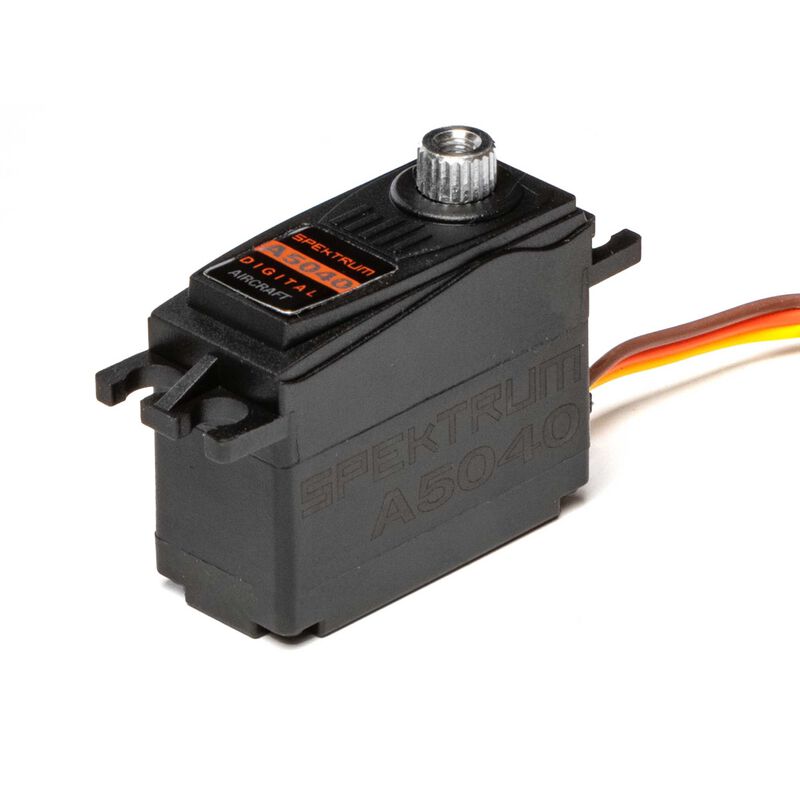

A5040 Mini Digital Metal Gear Aircraft Servo

Item No. SPMSA5040
Brand Logo
5 out of 5 Customer Rating

A5040 Mini Digital Metal Gear Aircraft Servo

Item No. SPMSA5040
$39.99 Price reduced from $45.99 to
Important Bulletin
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Key Features

  • Digital precision and power
  • Low deadband accuracy
  • Dual ball bearing support
  • Tough Metal Gears
  • Coreless Motor

Overview

The A5040's extremely tough metal gear train, digital precision and incredible .10 transit time is ideal for 25-32 size aircraft. Aerobatic and 3D aircraft that demand performance need the precision of digital accuracy. The low deadband technology means that you’ll enjoy reliable accuracy and precision.

This mini-class servo is durable enough for either glow or electric power applications. Dual ball-bearing support means there’s less resistance to the high output of the high-speed coreless motor. In all these features mean you can expect great performance and long life.

Detailed Information

Click Here to see Spektrum's Servo Reference Chart

Product Specifications

Specs

Gear Type Metal
Maximum Servo Speed 0.100-0.149 sec
Product Height 1.1 in (27.4mm)
Product Length 1.3 in (32.8mm)
Product Weight 0.76 oz (21.6 g)
Product Width 0.58 in (14.7mm)
Motor Type Coreless
Maximum Servo Torque 40-99 oz-in
Programmable No
Servo Size Category Mini and Micro
Servo Operating Voltage 4.8 - 6.0V
Speed 0.12 sec/60 deg @ 4.8V; 0.10 sec/60 deg @ 6.0V
Torque 50 oz-in (3.6 kg-cm) @ 4.8V; 66 oz-in (4.8 kg-cm) @ 6.0V
Servo Type Digital
Bushing Or Bearing Bearing
Bearing Dual
