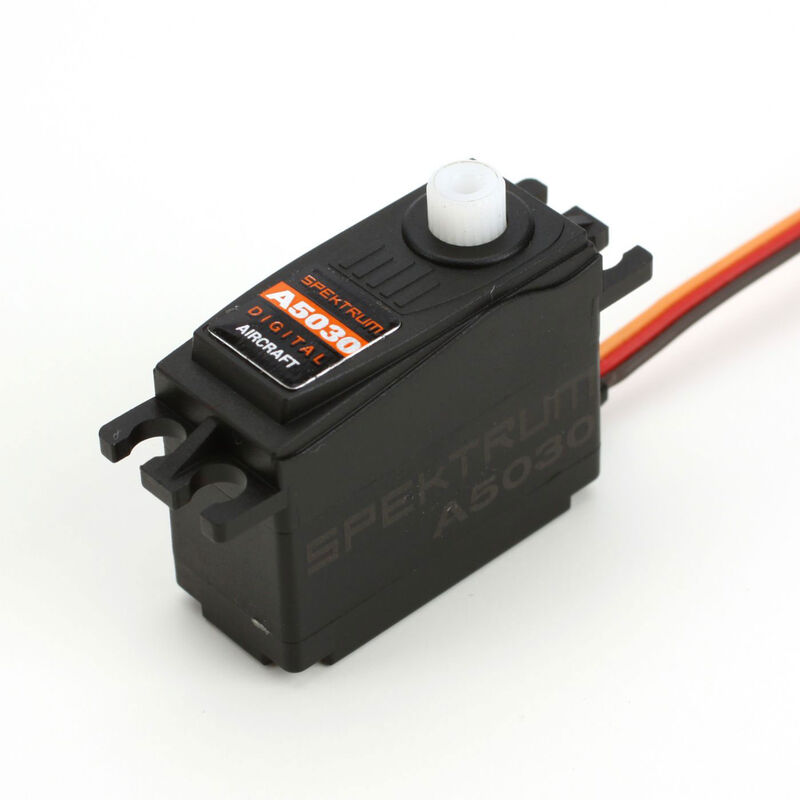

A5030 Mini Digital Aircraft Servo

Item No. SPMSA5030
Discontinued
Brand Logo
3.9 out of 5 Customer Rating

A5030 Mini Digital Aircraft Servo

Item No. SPMSA5030
This Item is No Longer Available
Selected Store
A5080 MT/HS Mini Digital HV Servo
A5080 MT/HS Mini Digital HV Servo
SPMSA5080
View Alternate Product Details

Product Details

Key Features

  • Digital precision and power
  • Low deadband accuracy
  • Dual ball bearing support
  • Plastic Gears
  • Coreless Motor

Overview

 The A5030's lightweight plastic gear train, digital precision and incredible .10 transit time is ideal for 25-32 size aircraft. Aerobatic and 3D aircraft that demand performance need the precision of digital accuracy. This servo is ideal and will last the pilot a long time thanks to its tight nylon gear train.

This mini-class servo is durable enough for either glow or electric power applications. Dual ball-bearing support means there’s less resistance to the high output of the high-speed coreless motor. In all these features mean you can expect great performance and long life.

Detailed Information

Click Here to see Spektrum's Servo Reference Chart

Product Specifications

Product Weight 0.83 oz (23.6 g)
Product Height 1.10" (28.0mm)
Servo Type Digital
Servo Operating Voltage 4.8 - 6.0V
Maximum Servo Torque 50 oz-in (3.6 kg-cm) @ 4.8V; 66 oz-in (4.8 kg-cm) @ 6.0V
Programmable No
Servo Size Category Mini
Product Length 1.30" (33.0mm)
Bearing Dual
Bushing Or Bearing Bearing
Gear Type Composite
Product Width 0.58" (15mm)
