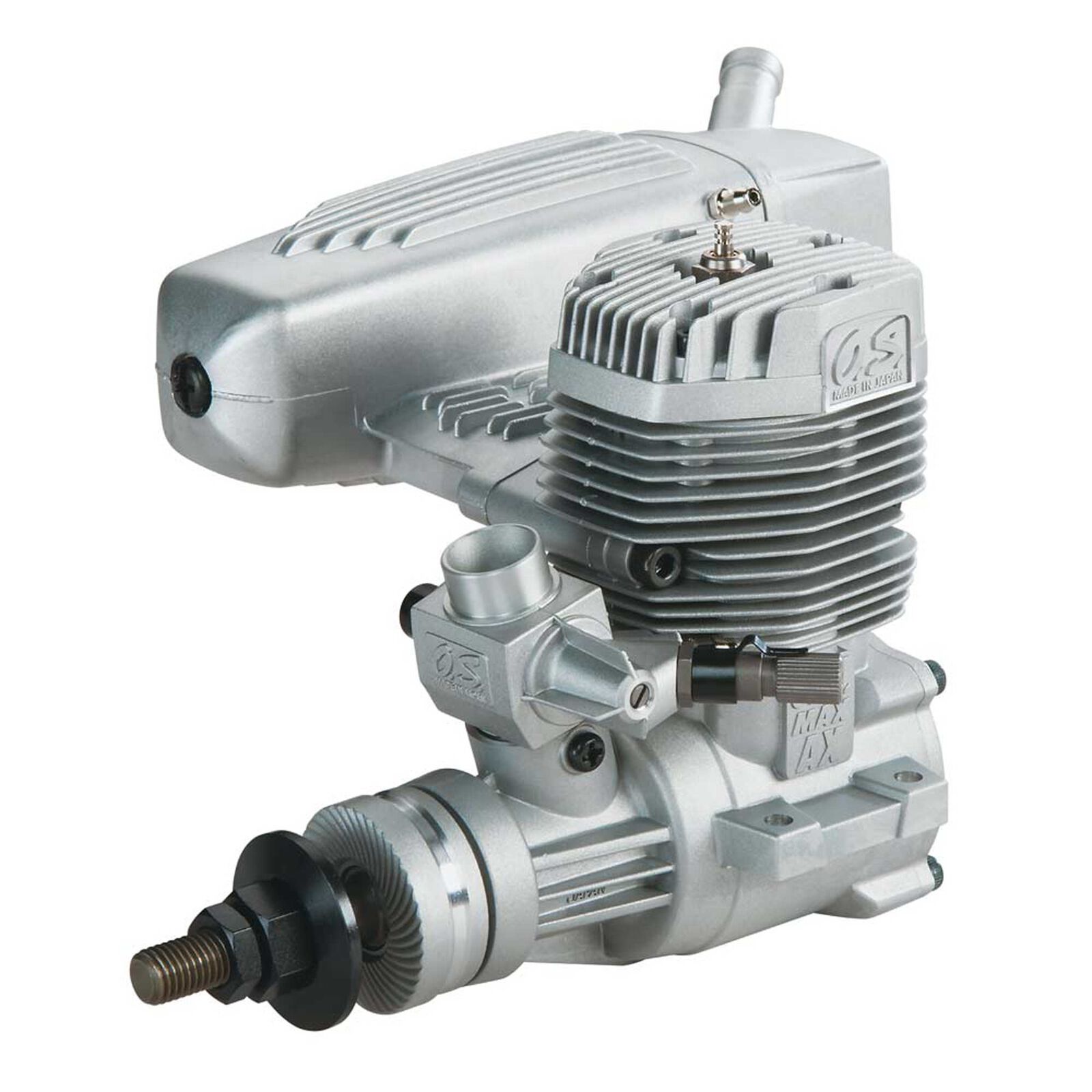

95AX Ringed .95 Airplane Glow Engine with Muffler

Item No. OSMG0580
Brand Logo
5 out of 5 Customer Rating

95AX Ringed .95 Airplane Glow Engine with Muffler

Item No. OSMG0580
$381.99
Free financing available through Easy Pay
Earn points on this item
In Stock
Selected Store

Product Details

icon-box
In The Box
  • (1) O.S. Max 95 AX ABL Aircraft Engine with E4040 muffler
  • (1) Carburetor
  • (1) #8 glow plug
  • (1) Needle valve extension
  • (1) Product manual
icon-how-to
Needed to Complete
  • Aircraft blend fuel containing 5%-20% Nitromethane with at least 18% lubricant
  • Propeller: 14x8, 15x6-8, 16x6-8
  • Glow starter and field equipment

The power of a 95 — in the same size bolt pattern as the 75AX!

Introducing the 95AX Ringed from O.S. It’s the latest addition to the popular series that's famous for providing uncompromising power in tight-fitting applications – great for aerobats and large-scale models!


O.S. Engines two year limited warranty
  • A high-performance engine that's ideal for aerobats and large-scale models
  • Generous thread on the extra-long, balanced crankshaft means more secure prop attachment
  • The included E-4040 Power Box muffler dampens noise while boosting power

Product Specifications

Manufacturer # 19120
Crankshaft Threads UNF5/16-24
Muffler Weight 6.28 oz (178g)
Cylinders Single
Engine (Only) Weight 20 oz (567 g)
Muffler Type 2-piece aluminum
Product Width 2.4" (61mm) at mounting tabs
Bore 1.091" (27.7mm)
Crankshaft Type Threaded
Power Type Glow
Plug Type O.S. #8
Stroke 1.083" (27.5mm)
Displacement 0.949 cu in (15.55 cc)
Oil Type & Content At least 18% synthetic lubricant
Product Length 3.7" (94.5mm) from back plate to front of drive hub
Product Height 4.1" (103.3mm) bottom of crankcase to top of cylinder head
Prop Range 14x8 x 16x6-8
RPM Range 2,000 - 11,000 RPM
