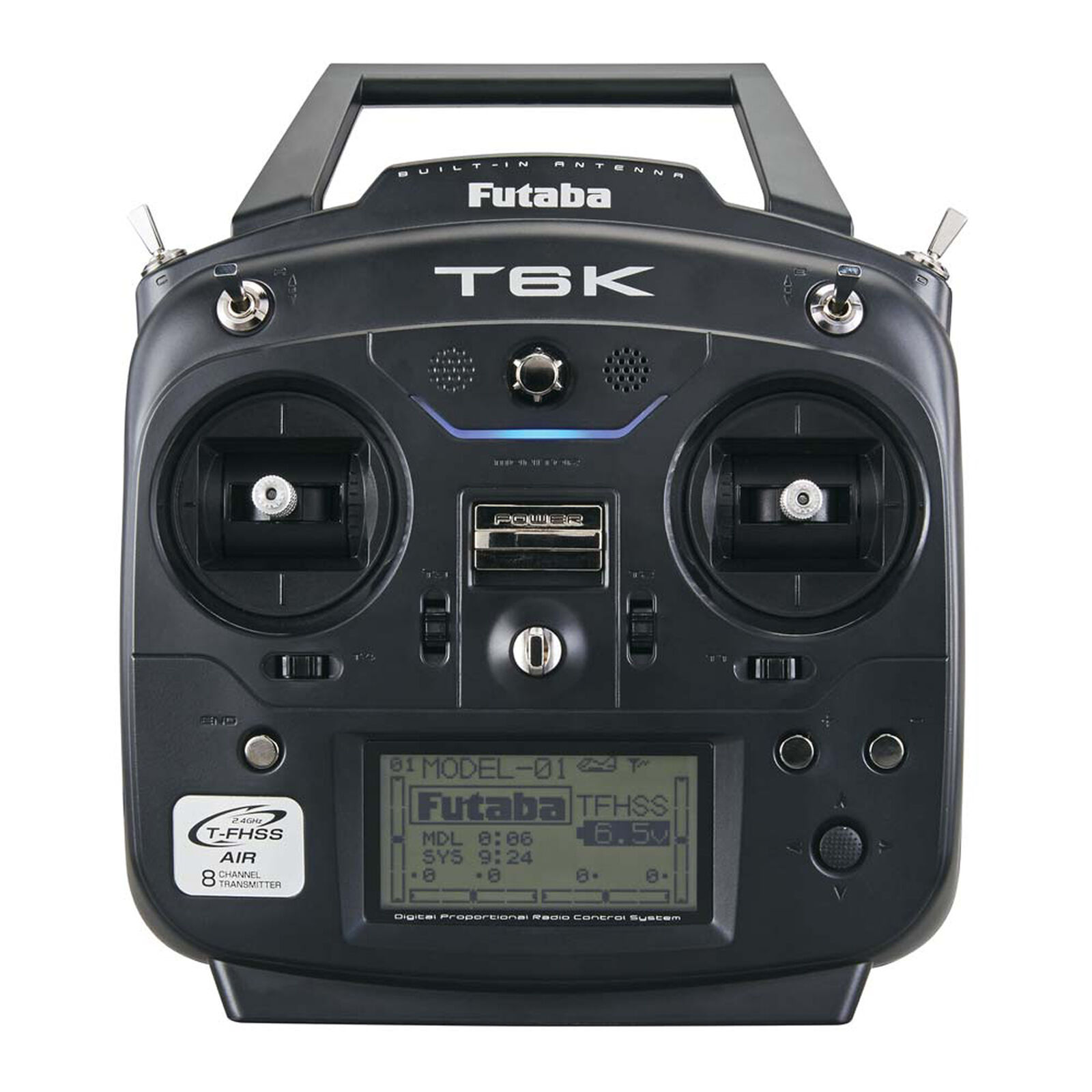

6K-V2 8-Channel S-FHSS/T-FHSS Transmitter With R3006SB Receiver

Item No. FUTK6110
Discontinued
Brand Logo
4.5 out of 5 Customer Rating

6K-V2 8-Channel S-FHSS/T-FHSS Transmitter With R3006SB Receiver

Item No. FUTK6110
This Item is No Longer Available
Selected Store
6K-V3S FPV 6K Transmitter with R3001SB Receiver
6K-V3S FPV 6K Transmitter with R3001SB Receiver
FUT010044053
View Alternate Product Details

Product Details

UPDATED VERSION 2 OFFERS 8 CHANNELS OF CONTROL!

To get the most radio for your money, check out the new 6K – an easy-to-program flight system with versatile functions that include telemetry, S.Bus/S.Bus2 compatibility and 30 model memory. With Version 2 updates, it's now a better value than ever. The NEW 6K is an 8-channel system with additional telemetry functions, expanded multicopter flight modes and much more.

    New in the 6K Version 2:

  • Channels 7/8 are used through the R3006SB receiver's S.Bus/S.Bus2 ports
  • Allow for expansions or adding accessories
  • Can be assigned to any of the four switches or VR dial
  • Are included in Sub Trims, End Points, Reverse, Failsafe, Servo Monitor and Trainer

    Priority — five flight modes on four channels

  • Channels 7/8 are used through the R3006SB receiver's S.Bus/S.Bus2 ports
  • Matrix – nine flight modes on four channels
Vibration alerts with timer functions and Throttle Integrate
SBS-01C current sensor and SBS-01V voltage sensor compatible
  • S-FHSS/T-FHSS selectable
  • Telemetry system (T-FHSS) sensors provide pertinent data on receiver battery voltage, external voltage, temperature, RPM, altitude and variometer
  • S.Bus/S.Bus2 servo setting functions programmable through the transmitter
  • 30 model memory
  • Model naming up to 8 characters
  • Programmable mixing for airplanes, helicopters, glider and multi-rotors
  • Digital trims with variable step settings
  • Switch/VR position change and AUX channel function change
  • Throttle position warning
  • Software is updateable through the CIU-2
  • 128x64 DOT backlit LCD screen with adjustable display contrast
  • Alarms can be preset to vibration mode
  • Conveniently located Earphone/Trainer/S.Bus jacks
  • Adjustable stick length and tension
  • The R3006SB receiver can use S.Bus as the main link/communication to the servos or a combination of S.Bus and the conventional outputs together


Futaba R3006SB S.Bus2 6Ch T-FHSS Telemetry Receiver


The included R3006SB receiver has six standard PWM ports plus S.Bus and S.Bus2 ports. You can use S.Bus as the main link to your servos or a combination of the ports. The S.Bus2 port allows bi-directional communication with T-FHSS Futaba air transmitters and the use of a wide array of telemetry sensors.

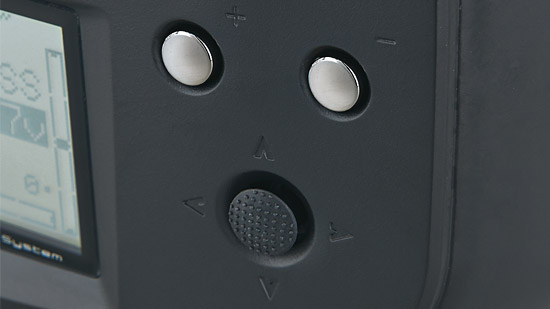

Futaba 6K 6-Channel Heli Radio System - Program navigation
Program navigation is easy and intuitive with the jog dial, +/- pads and end pad.
Futaba 6K 6-Channel Heli Radio System - antenna
The antenna is inside the transmitter case for safety and handling convenience.
Futaba 6K 6-Channel Heli Radio System - variable rate dial
This variable rate dial can be programmed to perform different functions; a speaker allows for telemetry voice feedback and audio alarms.
Futaba 6K 6-Channel Heli Radio System - switches
Four assignable switches (three 3-position and one 2-position) offer maximum flexibility.

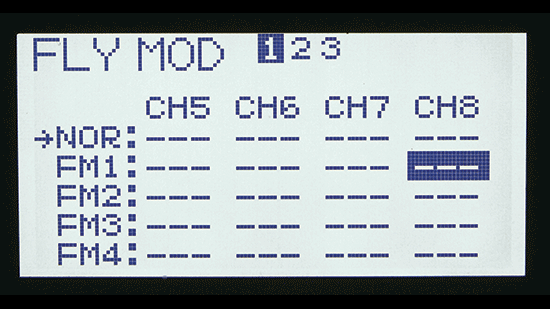

Futaba 6K 8-Channel Air Computer System w/R3006SB Receiver
 - Programming
6K Version 2.01 multicopter programming has been expanded with five Priority and nine Matrix flight conditions.

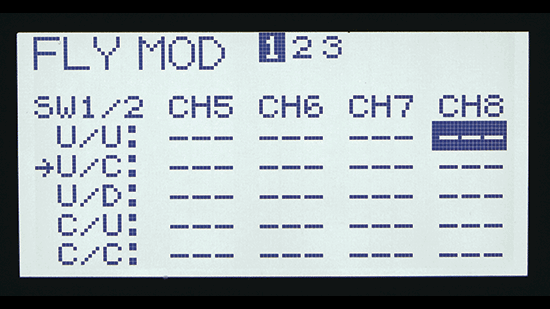

Futaba 6K 8-Channel Air Computer System w/R3006SB Receiver
 - Flight Conditions
The nine Matrix flight conditions can be used to set up a tilt camera by assigning nine settings to two 3-position switches.
Futaba External Voltage Telemetry Sensor
Futaba SBS-01C Current Telemetry Sensor
Using an SBS-01V External Voltage Telemetry Sensor and SBS-01C Current Telemetry Sensor, the 6K collects real time telemetry data for motor current, battery voltage and capacity. (not included)

System Features

  • Airplane, Helicopter, Glider and Multicopter programming.
  • S-FHSS/T-FHSS selectable.
  • Telemetry system (T-FHSS) with data speech (via earphones) function for monitoring receiver battery voltage, external voltage, temperature, RPM, altitude and variometer, current, capacity and voltage.
  • Built-in antenna (Full Range).
  • S.Bus/S.Bus2 servo setting functions programmable through the transmitter.
  • Preset vibration alarms.
  • 30 model memory.
  • 8-character model/user naming.
  • Programmable mixes (3-normal, 1-curve) for airplanes, helicopters, gliders and multi-rotors.
  • Digital trims with variable step settings.
  • Adjustable stick length and tension.
  • Changeable switch/VR position and AUX channel function.
  • Throttle position warning.
  • Backlit 128x64 DOT LCD screen with adjustable display contrast.
  • Software updateable through the CIU-2 or CIU-3 interface units.
  • Screen Lock.


  • Assignable switches (three 3-position, one 2-position).
  • Range Check.
  • Program navigation bay with jog dial, +/- pads and end pad.
  • Data reset.
  • Model copy.
  • Selectable model type.
  • Fail Safe.
  • End Points.
  • Trim/Trim Resets/Trim Steps.
  • Sub Trim.
  • Servo Reversing.
  • Parameter functions.
  • Servo monitor/Test.
  • Wireless model data transfer (to other T6K transmitters).
  • Timer-System and Model (Up/Down/Down-Stop/THR Integrate) w/Vibration Alert.
  • Trainer system.
  • Power Saver.

Airplane Functions

  • Wing Type (5-wing, 2-tail).
  • Throttle Cut.
  • Dual Rate/Expo.
  • Throttle Curve.
  • Idle down.
  • Gyro.
  • Aileron differential.
  • V-Tail.
  • Camber.
  • Air Brake.
  • Elevator-to-Flap mixing.
  • Flap-to-Elevator mixing.
  • Elevon mixing.

    Helicopter Functions

  • Swash type (6).
  • Condition Select.
  • Throttle Cut.
  • Dual Rate/Expo.
  • Trim Offset.
  • Delay.
  • Gyro mixing.
  • Swash AFR.
  • Swash mixing.
  • Throttle Curve (5-point).
  • Pitch Curve (5-point).
  • Pitch-to-Rudder mixing.
  • Throttle Hold.
  • Hovering throttle.
  • Hovering pitch.

Glider Functions

  • Wing Type (5-Wing, 2-Tail).
  • Condition select.
  • Dual Rate/Expo.
  • Motor switch.
  • Gyro.
  • Aileron Differential.
  • V-tail.
  • Butterfly mixing.
  • Trim mixing.
  • Elevator-to-Camber mixing.
  • Camber mixing.
  • Aileron-to-Camber mixing.

    Multicopter Functions

  • Flight Mode (Priority Flight Conditions and Matrix Flight Conditions).
  • Center alarm.
  • Dual Rate/Expo.
  • Throttle Curve.
  • Throttle Delay.
  • Gyro.
  • Six Languages

  • English.
  • German.
  • French.
  • Spanish.
  • Italian.
  • Dutch.

Product Specifications

Manufacturer # 01004374-3
