25 - 46 100-Degree Rotating Electric Retracts

Item No. EFLG320
Brand Logo
3.6 out of 5 Customer Rating

25 - 46 100-Degree Rotating Electric Retracts

Item No. EFLG320
$164.99 Price reduced from $209.99 to
Free financing available through Easy Pay Learn More
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Key Features

  • All-aluminum CNC-machined retract unit
  • Integrated electric motor with a micro PCB eliminating the need for a retract servo
  • Brass wheel collars and fully-bushed brass pivot points for smooth, trouble-free operation
  • Built-in over-current protection
  • Scale-appearance 100-degree retraction sweep and 90-degree rotation
  • Chrome-plated landing gear strut
  • Recommended for use in the Hangar 9® F4U-1D Corsair 50 ARF, .46-.55 (HAN2590)
  • Strut diameter: 4mm

Specifications

Current draw
Idle: 5mA
Operating: 900mA (maximum)

Pulse width trigger points
Down: 1.331ms
Up: 1.690ms

Operation with FM and DSM
FM: 22ms frame rate, 5V signal
DSM: 20ms frame rate, 3.3V signal

Sequence time
@4.8V 2.75sec
@6.0V 2.50sec
@7.4V 2.25sec

Operating voltage range
4.8—7.4V

Aircraft weight
5.00–9.50 lb (2.25–4.30 kg)

Unit weight
Nose gear: 3.5 oz (99.5 g)
Main gear: 2.8 oz (79.5 g) each

Detailed Information

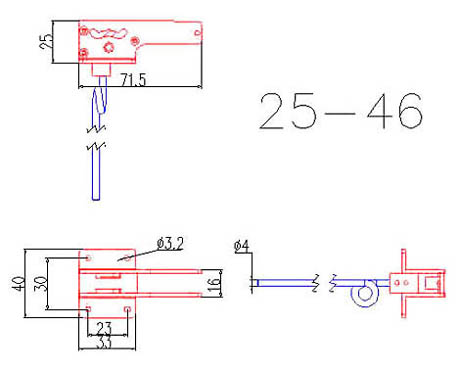

25-46 Size Main Retract Units (mm)
