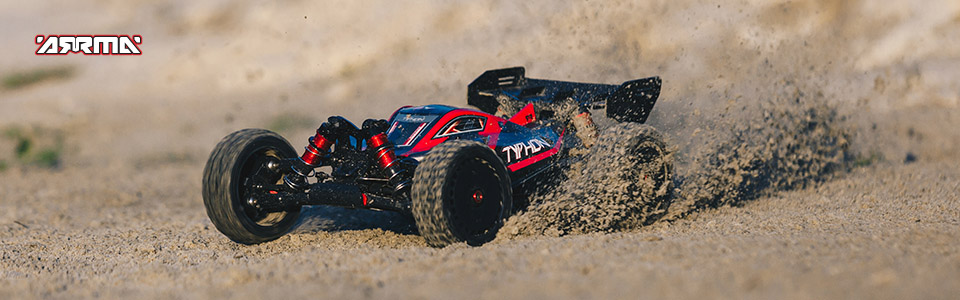

ARRMA TYPHON 6S BLX 4WD 1/8 Speed Buggy RTR

Introduction

Reach extremes of 70+ mph with the ready-to-run ARRMA® TYPHON™ 6S BLX 4WD 1/8 scale speed buggy. Designed fast, designed tough, and outfitted with the 2.4GHz Spektrum™ STX2® radio system, it's all set for fast action on all terrain, in all conditions!

Features

  • Ready-to-run
  • Extremely durable
  • Fast, 70+ mph speed potential *
  • 150A, 6S LiPo ready (3S, 4S and 6S LiPo compatible)
  • Anodized aluminum chassis
  • Strong front and rear composite chassis braces
  • Strong composite chassis side pods
  • Heavy-duty drivetrain
  • All-metal diff outdrives and gearbox internals
  • Durable steel driveshafts
  • Easy-access sliding motor mount
  • 4-Bolt center diff removal
  • Never-pop ball ends
  • Never loose red aluminum servo saver
  • Oil-filled adjustable shocks
  • Black anodized aluminum front and rear shock towers
  • Aluminum shock caps and protectors
    • * Speed achievable in optimum conditions on 6S LiPo with optional pinion gear
  • Matte paint scheme with forged composite detail
  • High-speed, low-drag wing
  • Strengthened wing mounts
  • Low-drag 1/8 buggy wheels
  • Multi-terrain DBoots® KATAR B tires
  • Super-durable wheel hubs
  • Hub nut O-rings
  • Spektrum™ 2.4GHz STX2® Radio with SRX200 Receiver
  • BLX4074 2050Kv brushless motor
  • BLX185 waterproof 4S/6S ESC (fitted with IC5™ connector and EC5™ compatible) **
  • ADS-15M waterproof 15kg-cm metal-geared servo (195 oz-in @ 6V) **
  • 2-year limited warranty (see website for details).
    • ** For details on waterproof standards, please refer to the product instruction manuals
Needed to Complete
  • (2) 2S or 3S 35C+ 5000mAh LiPo batteries with IC5/EC5 connector or
  • (1) 4S or 6S 35C+ 5000mAh LiPo battery and harness with IC5/EC5 connectors
  • Suitable LiPo balancing charger
  • (4) AA batteries (for transmitter)
  • LiPo charging bag or case (recommended)
What's in the Box?
  • (1) ARRMA TYPHON 6S BLX 4WD 1/8 Speed Buggy RTR
  • (1) Spektrum 2.4GHz STX2 Radio Transmitter
  • (1) Product Manual

Overview

To give intermediate-level bashers such incredible speed, ARRMA® equips this new TYPHON™ speed buggy with powerful, 6S-capable brushless electronics. Its 2050Kv brushless motor is paired with the BLX185 ESC, featuring IC5™ connectors and compatible with standard EC5™ connectors. The waterproof electronics ably support all-weather bashing. Add your favorite 4S or 6S LiPo battery and watch this buggy smash your bashing speed expectations, especially while running with the optional recommended pinion gear.

New, low-drag buggy wheels arrive outfitted with super-aggressive, multi-surface DBoots® KATAR B tires. A new, low-drag wing helps keep the vehicle grounded. Both contribute to confident control and responsive handling at thrilling high speeds.

The TYPHON™ 6S BLX 4WD speed buggy blasts over dirt, asphalt, grass - all terrain and all conditions - with adjustable oil-filled shocks soaking up the bumps. The shocks are mounted on black-anodized aluminum towers and include aluminum shock caps and protectors to maintain their super-smooth damping.

For the durability needed to support such intense brushless performance, ARRMA® uses a strong anodized aluminum chassis as its foundation. Front and rear composite chassis braces and composite chassis side pods lend more strength. All-metal diff outdrives and gearbox internals plus durable steel driveshafts all contribute to a reliable, heavy-duty drivetrain that holds up to extreme bashing. A new "never loose" aluminum steering servo saver and "never pop" ball ends supply more precision, reliability and confidence.

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. A sliding mount gives you quick, hassle-free access to the motor. The center diff is easy to reach and can be removed by taking out just four bolts. Topping it all off is a sleek buggy body with streamlined good looks, featuring a matte paint scheme in black and red with forged composite detail.

The ready-to-run TYPHON™ 6S BLX 4WD includes the new Spektrum™ 2.4GHz STX2® transmitter and comes with its SRX200 receiver and ADS-15M metal-geared servo already factory-installed. The only required items are a 4S or 6S LiPo battery, compatible charger, safe charging bag, and four AA transmitter batteries.

TYPHON Video Introduction


Under The Hood

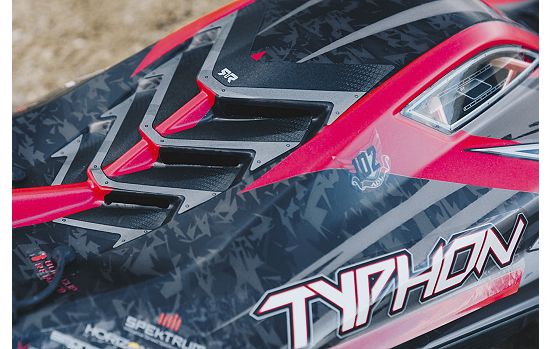

PREMIUM LOOKS
PREMIUM LOOKS

New body includes forged composite details and a matte painted finish.

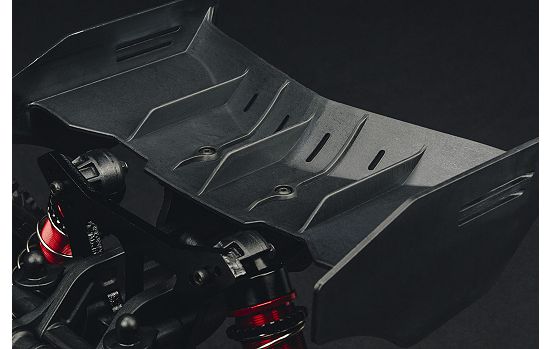

TAKES THE ROUGH WITH THE TUMBLE
TAKES THE ROUGH WITH THE TUMBLE

New high-speed, low-drag wing includes strengthened wing mounts to take the hits and keep going.



READY FOR ANYTHING
READY FOR ANYTHING

High-speed wheels and multi-terrain DBoots® Katar B tires for thrilling speed, agressive driving, and fun in all conditions.

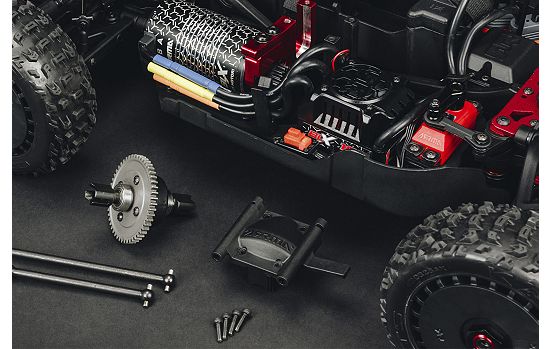

SLIP & SLIDE
SLIP & SLIDE

Sliding motor mount for easy meshing and removal, and easy-access 4-bolt center diff



TIGHT & TRUE
TIGHT & TRUE

New servo saver design that will never loosen, for maximum servo protection.

Never-Pop Steering Ball Links
CAPTIVATING

Captured steering ball ends that will never pop off

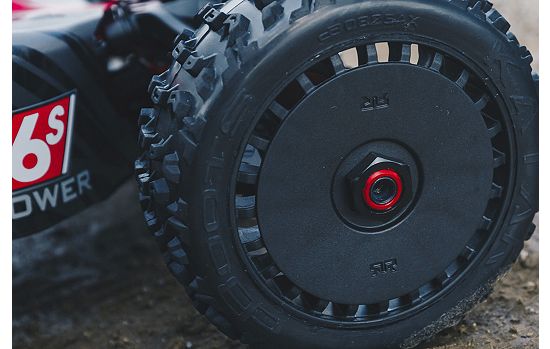

Never-Loose Hub Nuts
SIGNED, SEALED, & DELIVERED

New, updated hubs and hub nut o-rings that will never come loose

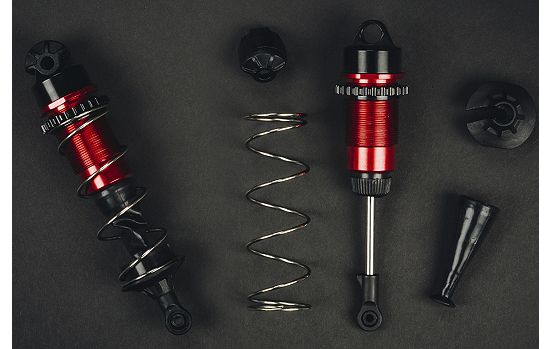

ANODIZED ALUMINUM SHOCK CAPS
ANODIZED ALUMINUM SHOCK CAPS

Anodized aluminum shock absorbers feature aluminum caps and adjustment collars and composite shock cap protectors



HEAVY-DUTY SHOCK DESIGN
HEAVY-DUTY SHOCK DESIGN

Heavy duty red anodized aluminum shocks with 4mm shock shafts

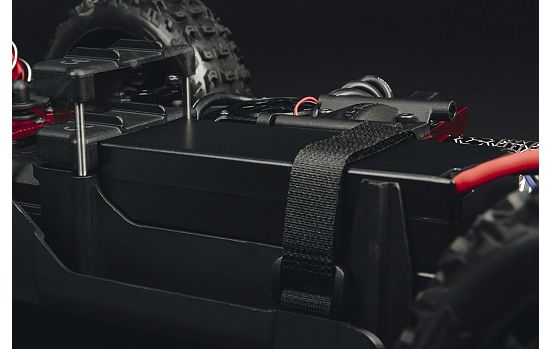

VERTICALLY ADJUSTABLE END-COVER
VERTICALLY ADJUSTABLE END-COVER

Ensures your batteries are firmly secured.



BLX185 ESC
BLX185 ESC
  • Waterproof and dustproof design *
  • 150A, 6S LiPo ready (3S, 4S and 6S LiPo compatible)
  • Fitted with reliable IC5™ connectors (EC5™ compatible)
  • Integrated fan for reduced heat during extreme running
  • High quality 10awg wires
  • Low voltage cut off and thermal overload protection
  • User programmable punch and brake settings
  • Capable of 70+ mph (113+ km/h) speeds **
  • * For details on waterproof standards, please refer to the product instruction manuals.
    ** Speed achievable in optimum conditions on 6S LiPo with optional pinion gear.
BLX4074 2050Kv Brushless Motor
BLX4074 2050Kv BRUSHLESS MOTOR
  • Beautifully etched aluminum can
  • 4-pole construction for smooth and consistent power
  • Gold bullet connectors for reliable and efficient connection
  • Finned motor can for increased heat dissipation
  • Super strong 5mm shaft
  • Capable of 70+ mph (113+ km/h) speeds *
  • * Speed achievable in optimum conditions on 6S LiPo with optional pinion gear.

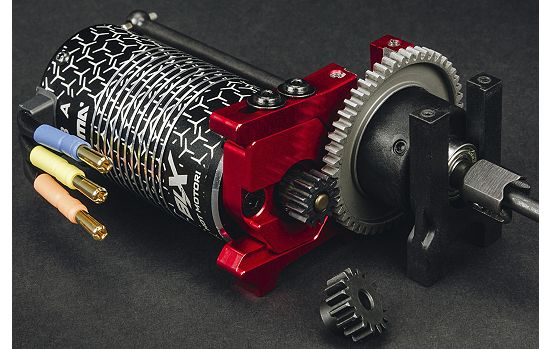

OPTIONAL SPEED PINION INCLUDED
OPTIONAL SPEED PINION INCLUDED

Red anodized motor mount and mod 1 spur and pinion gears to handle increased speed and optimum performance.

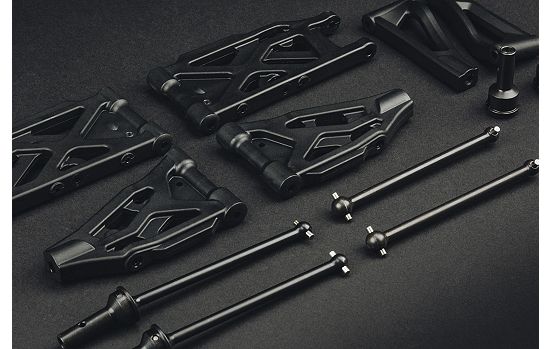

HEAVY-DUTY DRIVETRAIN
HEAVY-DUTY DRIVETRAIN

Tough A-arms and durable steel driveshafts and components keep you bashing for longer



SPEKTRUM STX2 RADIO SYSTEM
SPEKTRUM STX2 RADIO SYSTEM
  • Complete 2.4GHz radio system including a 2Ch waterproof receiver *
  • Built-in 3-position throttle limiter
  • Steering & throttle rate & trim adjustments with throttle and steering reversing
  • FHSS 2.4GHz protocol** offers extended range and interference free performance
  • * For details on waterproof standards, please refer to the product instruction manuals.
    ** Not compatible with DSM, DSM2 or DSMR 2.4GHz protocol
ADS-15M SERVO
ADS-15M SERVO
  • Strong metal gears used throughout
  • Waterproof and dustproof case *
  • 25 tooth output spline
  • Torque: 14kg-cm @6V
  • Speed: 0.16sec/60degree @6V
  • Dimensions: 40x38x20mm (Industry standard size)
  • * For details on waterproof standards, please refer to the product instruction manuals.



Product Specifications

Approximate Assembly Time No assembly required
Ball Bearings Full ball bearing drivetrain
Body Trimmed and painted molded polycarbonate
Charger Sold Separately
Chassis 0.12" (3mm) thick 6061-T6 aluminum
Completion Level Ready-To-Run
Differential Three, metal gear, front & rear filled with 7,000cst silicone diff oil, center filled with 100,000cst silicone diff oil
Drivetrain 4WD
Final Drive Ratio 11.79:1
Gear Pitch 1.0 Module
Ground Clearance 1.85" (47mm)
Internal Gear Ratio 3.3:1
Max Battery Dimensions 6.22 x 2.76 x 1.89" (158 x 70 x 49mm)
Motor Size 4074, 2050Kv with new sliding mount for easier maintenance
Outer Diameter 4.65 in (118mm)
Pinion 14T
Power Type Electric
Product Height 7.48" (190mm)
Product Length 20.08" (510mm)
Product Weight 7.52lbs (3.42kg)
Product Width 12.2" (310mm)
Radio Included
Receiver Included
Scale 1/8
Shock Type Oil-filled, coil-over springs, filled with 550cst silicone shock oil
Speed Control Included
Spur Gear 50T
Suspension Independent
Tire Tread Katar
Vehicle Type Buggy
Water-Resistant Yes
Wheel Type Plastic, black in color
Wheel Width Rear, 1.6" (41mm)
Wheelbase 12.91" (328mm)
