1/8 Spitfire Mk2 .46-.55 GP EP ARF 55"

Item No. PMMA1359
1/8 Spitfire Mk2 .46-.55 GP EP ARF 55"
Brand Logo
5 out of 5 Customer Rating

1/8 Spitfire Mk2 .46-.55 GP EP ARF 55"

Item No. PMMA1359
$219.99
Earn points on this item
In Stock
Selected Store
The link to 1/8 Spitfire Mk2 .46-.55 GP EP ARF 55" has been copied
|

Product Details

Key Features
  • Construction: Built-up balsa and ply
  • Wing: One-piece with aluminum joiner tube
  • Covering: Hangar 9 UltraCote
  • Aileron Control: Dual servo
  • Cowl: Fiberglass, painted to match covering trim scheme
  • Motor Mount: Plywood
  • Engine Mount: Two-piece composite plastic
  • Landing Gear: Mechanical retracts with CNC machined metal suspension struts, 2.5" (64mm) foam wheels
  • Spinner: Plastic construction, yellow in color 3.1" (80mm) diameter
  • Fuel Tank: 14oz (420cc) approximate
icon-box

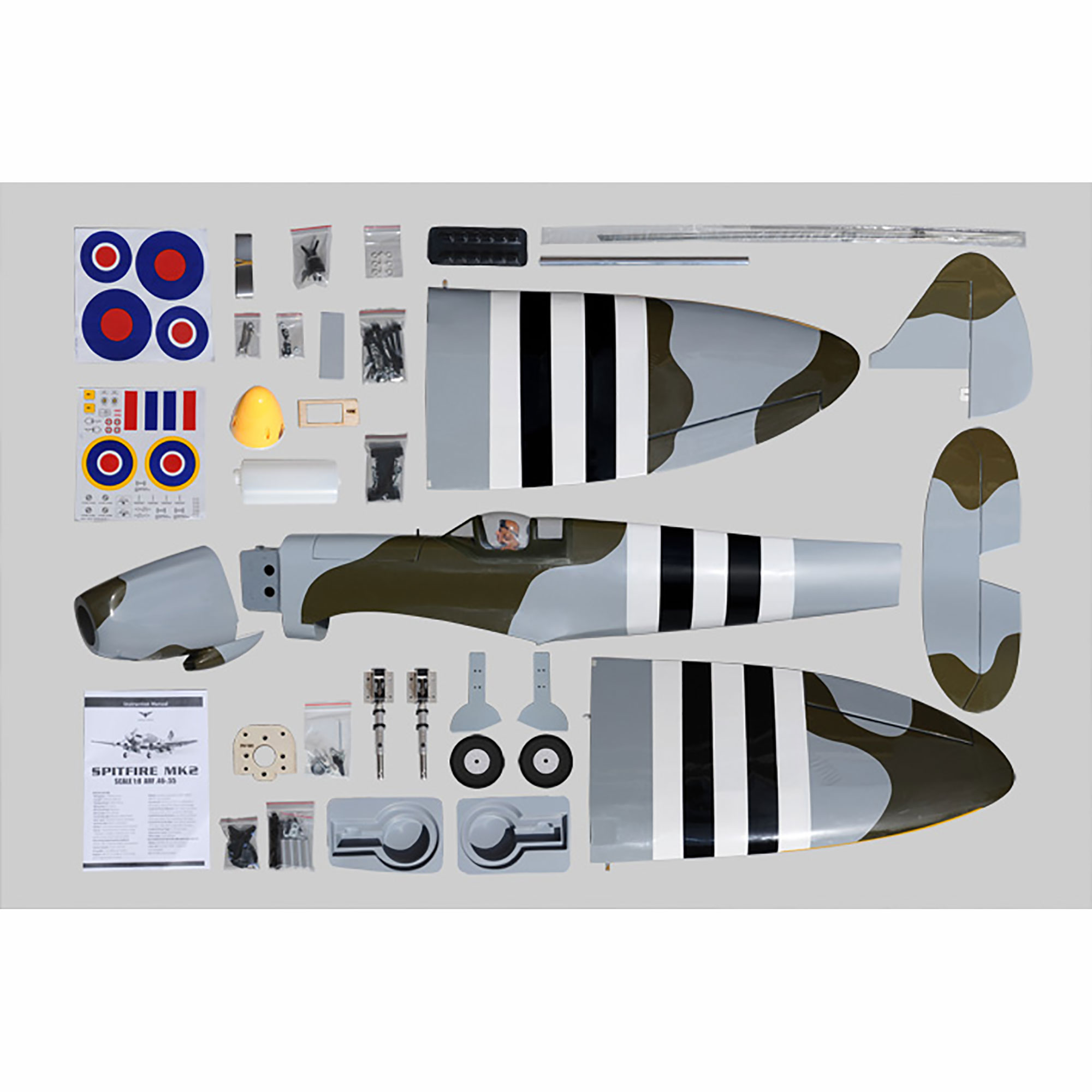

In The Box
  • Phoenix Models Spitfire Mk2 with Landing Gear
  • Wheels
  • Fuel Tank
  • Pushrods
  • Hardware
  • Product manual
icon-how-to
Needed to Complete
  • Radio: 6-Channel Minimum
  • Servos: 7 standard size, 2 aileron, 2 flap, 1 elevator, 1 rudder, 1 low profile type for retracts, 1-throttle (if using glow engine)
  • 6" (152mm) Servo Extensions: Two
  • Y Harness: One
  • Receiver Battery: 4.8-6V NiMH (800-1200mAh)
  • For Glow Power; Engine: 46-.55 2-stroke or .52 4-stroke Propeller: Compatible with selected engine Servo: Standard size for throttle Glow fuel, glow starter
  • For Electric Power; Motor: Brushless outrunner 1000-1400 W, 480 KV Propeller: Compatible with selected motor ESC: 50-80A Battery: 4-6S LiPo, 4000-5500mAh Battery Charger: For selected LiPo battery
1/8 Spitfire Mk2 .46-.55 GP EP ARF 55"
Quick Links
icon-pdf-download Manuals & Support

Earn your wings with the agile Spitfire!

Ideal for intermediates, the 55” span Phoenix Model Spitfire GP/EP ARF gives pilots a choice between glow and electric power! Features built-up balsa/plywood construction, a one-piece wing, a factory-applied trim scheme, retractable landing gear, a painted pilot figure and more. Ready to fly in several hours!
  • All-wood construction.
  • One-piece wings with aluminum joiner tube.
  • Factory-applied high-quality film covering, with WWII-inspired trim scheme.
  • Dual-servo aileron control.
  • Plywood-reinforced radio compartment (accessible under the wing).
  • Painted fiberglass cowl.
  • Clear canopy with painted pilot figure.
  • Retractable landing gear w/cnc suspension metal struts.
  • Fuel tank (approx.): 14 oz. (420 cc).
  • 2.75 in. (57 mm) dia. red plastic spinner.
  • Decal sheet.
  • Complete hardware package.
  • Photo-illustrated instructions.
Phoenix Model¨ Spitfire Mk2 GP/EP ARF - Hatch
A large, removable hatch allows easy access to a LiPo battery or dual fuel tanks.

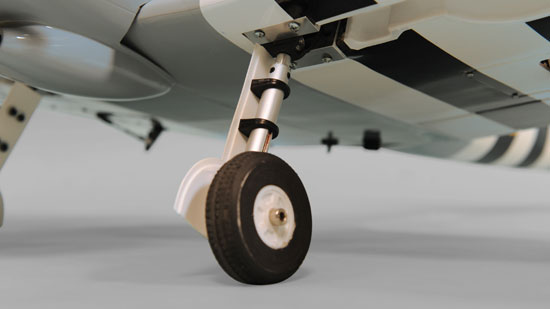

Phoenix Model¨ Spitfire Mk2 GP/EP ARF - Retracts
Included mechanical retracts, w/cnc suspension metal struts add scale realism.

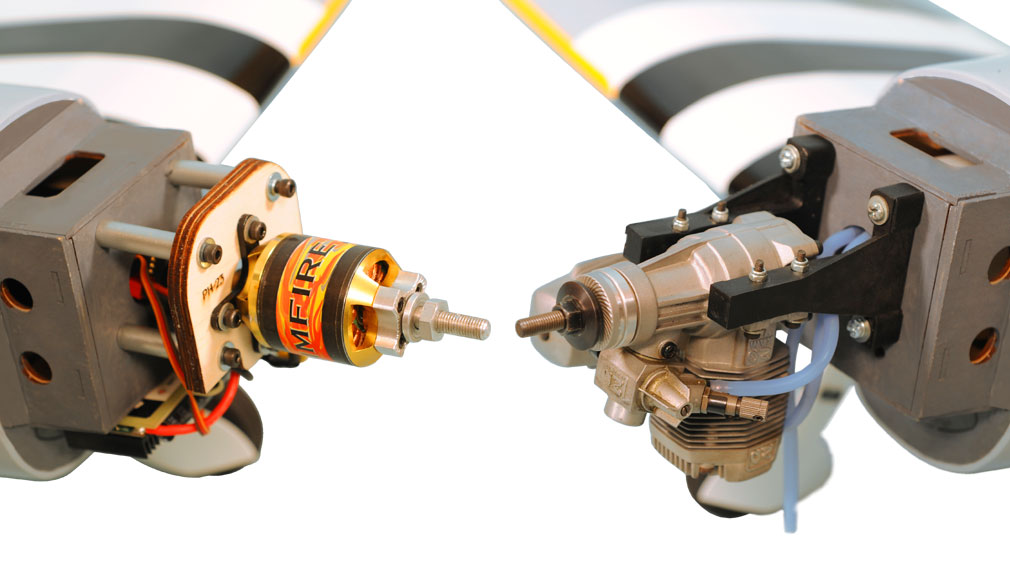

Phoenix Model¨ Spitfire Mk2 GP/EP ARF - Setup
Set up your Spitfire with glow or electric power. Hardware is included for both options.
Phoenix Model¨ Spitfire Mk2 GP/EP ARF - Flaps
Flaps provide slower landings and scale detail.
Phoenix Model¨ Spitfire Mk2 GP/EP ARF - Cowl
Hand-laid fiberglass cowl with scoop.

Product Specifications

Skill Level Level 3
Speed Control Sold Separately
CG (Center of Gravity) 3.5-3.7" (90-95mm) back from leading edge of wing at the fuselage
Completion Level Almost Ready-To-Fly
Propeller Size Compatible with selected engine
Charger Sold Separately
Receiver Sold Separately
Radio Sold Separately
Battery Sold Separately
Engine Size 46-.55 2-stroke or .52 4-stroke
Product Length 48.8" (1240 mm)
Wing Loading 28.18oz sq ft (86g/sq dm)
