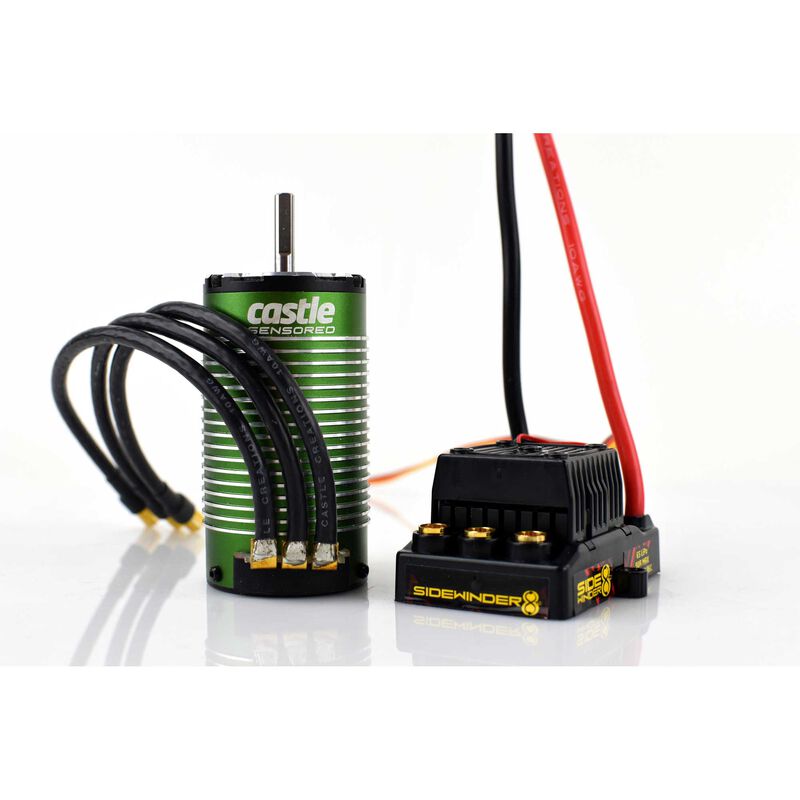

1/8 Sidewinder 8th Sport Waterproof ESC and 1515B-2200Kv Motor Combo

Item No. CSE010013901
Discontinued
Brand Logo
3.7 out of 5 Customer Rating

1/8 Sidewinder 8th Sport Waterproof ESC and 1515B-2200Kv Motor Combo

Item No. CSE010013901
This Item is No Longer Available
Selected Store

Product Details

Features

  • 2-6S LiPo (25.2V) compatibility in vehicles up to 11.lbs with battery and ready-to-run.
  • Smooth sensorless motor operation with included 1515-2200kv sensored* brushless motor
  • Large 6.5mm female motor bullet connectors (male connectors sold separately)
  • Waterproof** design ESC and splash resistant 30mm fan
  • Powerful 5.5 volts fixed, 8 Amps Peak BEC
  • LED error codes for common error conditions
  • Convenient transmitter programming for nine common adjustable settings
  • Fully compatible with the Castle Link Programming Suite. See Recommended Items list or Feature Details below for more information.
    * Sensored capabilities of the motor cannot be utilized with the Sidewinder 8th ESC, must be run in sensorless mode.

    ** Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

Overview

The Sidewinder 8th is a 1:8 scale, waterproof* combo from Castle Creations capable of 2-6 cells of LiPo power, with an 8 amp peak BEC. This is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 11 lbs. It can also work as a great upgrade for some 4WD short course trucks for 3s or 4s operation. It also comes standard with a highly efficient ESC cooling fan.

* Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

Recommended Items
  • Castle Link USB Programming Kit V3 for modifying settings and downloading software updates through Windows
  • B-LINK Bluetooth Adapter for modifying settings and downloading software updates through the iOS App
  • Field Link Portable Programmer for modifying ESC settings on the go
What's in the Box?
  • (1) Sidewinder 8th ESC
  • (1) Castle 1515-2200Kv brushless sensored* motor
  • (1) Castle decal sheet
  • (1) Drivers Ed and Quick Start Guide
  • * Sensored capabilities of the motor cannot be utilized with the Sidewinder 8th ESC, must be run in sensorless mode.

Feature Details



Castle Link Programming Suite

For over 20 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters simply purchase the Castle Link Adapter and download the simple to install software from our website and you are ready to personalize your controller’s parameters. Or you can utilize the Castle Link iOS App and purchase the B-Link Bluetooth Adapter. Don’t forget to use the “check for updates” feature in Castle Link to download new software as it becomes available. New features are yours at no cost, a perk for choosing Castle.



ESC Settings

Adjustable settings include:

  • Throttle
  • Braking curve
  • Drag brake
  • Auto LiPo cutoff
  • Punch Control
  • Reverse Type
  • Motor Type





ITEM_NAME

Product Specifications

Adjustable Timing Yes
Auto Cutoff Yes
BEC Yes
BEC Continous Current 4.5A Continuous
BEC Maximum Burst Current 8A Peak
BEC Type Fixed voltage, 8A Peak
BEC Voltage 5.5V Fixed
Brakes Proportional
Bushing Or Bearing Bearing
Connector Type 6.5mm Bullet
Forward Yes
Input Voltage 2S (7.4V) minimum, 6S (25.2V) maximum
Number of Poles 4
Outer Diameter With Fins 1.6 in (41.4mm)
Product Height 1.33" (34mm)
Product Length 2.45" (62.2mm)
Product Width 2.20" (56mm)
Programmable Yes
RPM/Volt (Kv) 60,000 / 2200
Shaft Diameter 0.197" (5mm)
Shaft Length 0.79" (20mm)
Wire Gauge 10 AWG
