1/8 RC8T4e 4x4 Electric Truggy Team Kit, Gearbox Upgrade

Item No. ASC80952
$685.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store
The link to 1/8 RC8T4e 4x4 Electric Truggy Team Kit, Gearbox Upgrade has been copied

Product Details

1/8 scale truck is the R/C hobby’s highest stress discipline; Associated Electrics’ Area 51 created a new gearbox upgrade to absolutely bulletproof the RC8T4 drivetrain.
Key Features
  • 7075 Aluminum Hard Anodized Chassis
  • Two-Piece Clamping Motor Mount
  • Innovative Front-End Geometry With 8-Degree Blocks
  • Wing Mount Features Adjustable Wing Angle Shims
  • Includes Updated Gear Box
icon-box
In The Box
  • (1) 1/8 RC8T4e 4x4 Truggy Team Kit
icon-how-to
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) Standard-Size Steering Servo
  • (1) Electronic Speed Control
  • (1) 1/8 Electric Motor
  • (1) 14.8V 4S Shorty Battery OR (2) 7.4V 2S Shorty Batteries
  • (1) Battery Charger
  • (1) 1/8 Truggy Body
  • (4) 1/8 Truggy Wheels & Tires

RC8T4 series Gearbox Upgrade!

The upgraded 40/9 ring and pinion are completely re-designed with massive teeth which allow for more tooth engagement and prevent skipping. In addition, the RC8B4 front and rear gearboxes are updated for the tightest possible screw and bearing fit using high stiffness polymer. Team Associated driver Spencer Rivkin used the new parts win the 2024 ROAR Electric Truck National Title with his RC8T4e, never having to worry about the durability of his truck gearboxes while he pushed it to the max on track.

Legacy RC8T4e Features

  • RC8T4e chassis layout featuring two saddle pack-style battery configurations. Both configurations include a centrally mounted center differential and in-line center driveshafts for superior drivetrain efficiency and equalized chassis balance.
  • Four battery configurations to choose from: --Two 2S shorty LiPo batteries for lowest CG and exceptional weight bias --Two full size “saddle pack” LiPo batteries for lowest CG and exceptional weight bias --One 4S shorty LiPo battery for simplified setup and more centralized weight bias --One full size LiPo battery for simplified setup and more centralized weight bias.
  • Innovative front-end geometry with new 8° steering blocks are paired with a new wider upper suspension arm pivot for improved steering balance and predictable handling in all conditions.
  • RC8T4e gearboxes are specific to front and rear with larger bearing sizes resulting in longer life of ring and pinion gears: Front gearbox is a 3.5° inclined pinion gear angle to straighten the center driveshaft for increased drivetrain efficiency and reduced phasing and vibration. Rear gearbox is a 0° pinion gear angle and a center mounted rear chassis brace.
  • V2 front shock tower design with updated suspension geometry and body mount positions for all styles of truck bodies.
  • Front and rear center dogbone driveshafts for improved drivetrain efficiency and durability.
  • Front upper suspension arm updated to have bushing insert for improved fitment and performance.
  • RC8B4 rear wing mount has adjustable wing angle shims, significant strength improvements, an aerodynamic shape, and extra clearance for shock position adjustment.
  • The adjustable rear wing has more vertical fins for increased straight-line stability, a taller rear lip height for increased downforce, and increased strength in various areas to reduce bending fatigue.
  • RC8B4 rear chassis brace is mounted centrally to the gearbox, which reduces material fatigue, centralizes shear forces, and improves the life of rear-end drivetrain parts. There are three different chassis flex options using two chassis hole mounting locations and an optional turnbuckle ball for flex in more degrees of freedom.
  • +2 mm and +4 mm shock rod ends for finer adjustment of droop and up-travel settings.
  • 35.5 mm front and 44.5 mm rear shock shafts for improved dampening
  • RC8B4 rear hub features a symmetrical left and right common design with axle height inserts for adjustable roll center tuning options.
  • +2-degree steering block arm.
  • V3 differentials with HTC gear sets.
  • RC8T3.2 split center diff mounts with aluminum center top plate.
  • 16mm shocks equipped with improved material locking spring cups and rod ends, V2 springs, “stiff” style shock bladder, combination bleeder/emulsion caps, and blue aluminum threaded collars.
  • RC8B3.2 narrow C and D arm mounts.

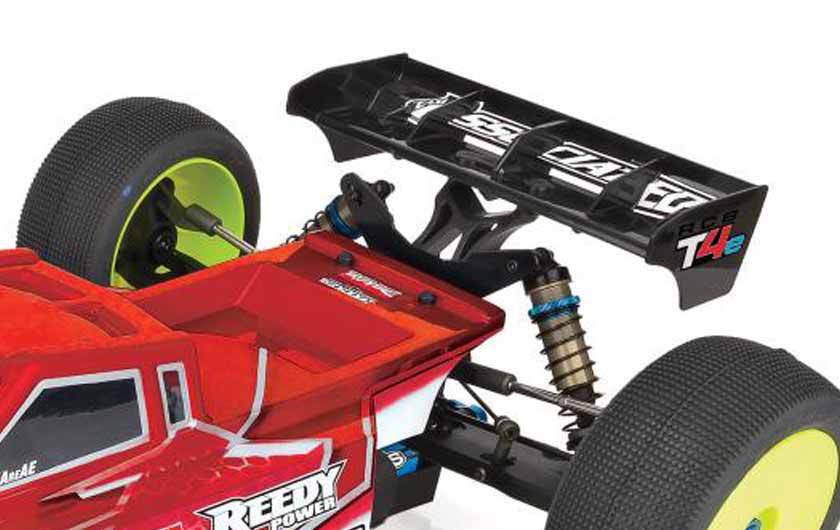

Wing has vertical rear fins and a taller rear lip
Rear Wing

Wing has vertical rear fins and a taller rear lip for increased straight-line stability and down-force.

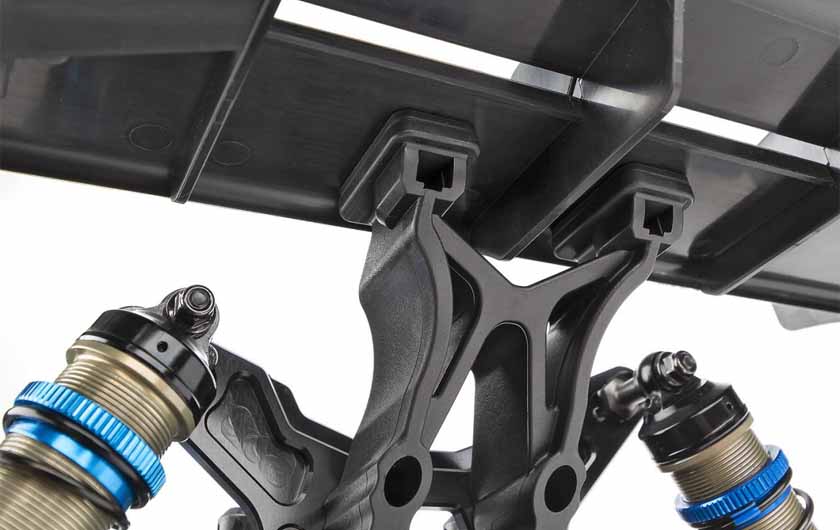

Wing mount is adjustable
Wing Mount

Wing mount features adjustable wing angle shims, strength improvements, and aerodynamic strength.

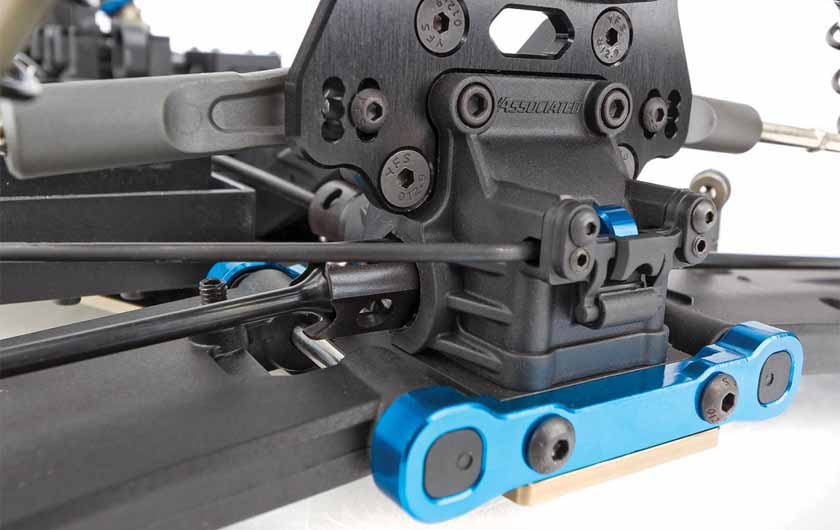

Centrally mounted chassis brace
Chassis Brace

Rear chassis brace is mounted centrally to the gearbox, which reduces material fatigue.

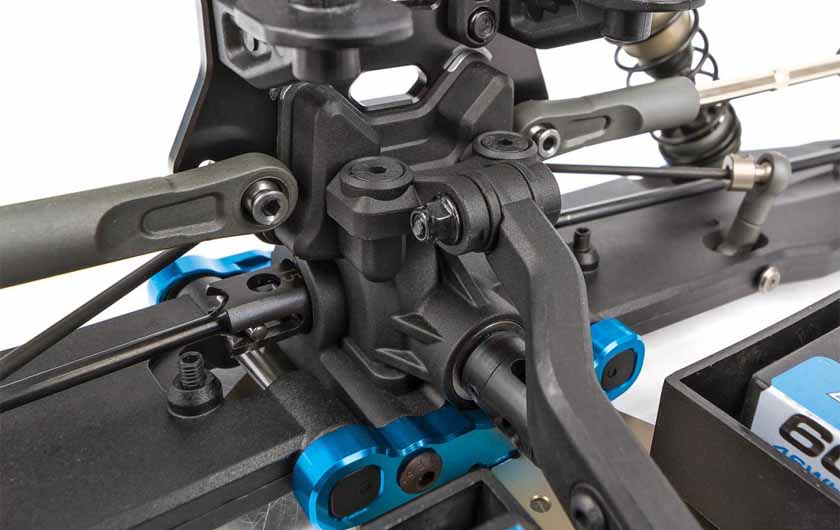

Front and rear gear boxes are more efficient
Gear Boxes

Updated front and rear gearbox designs are engineered for better drivetrain efficiency.

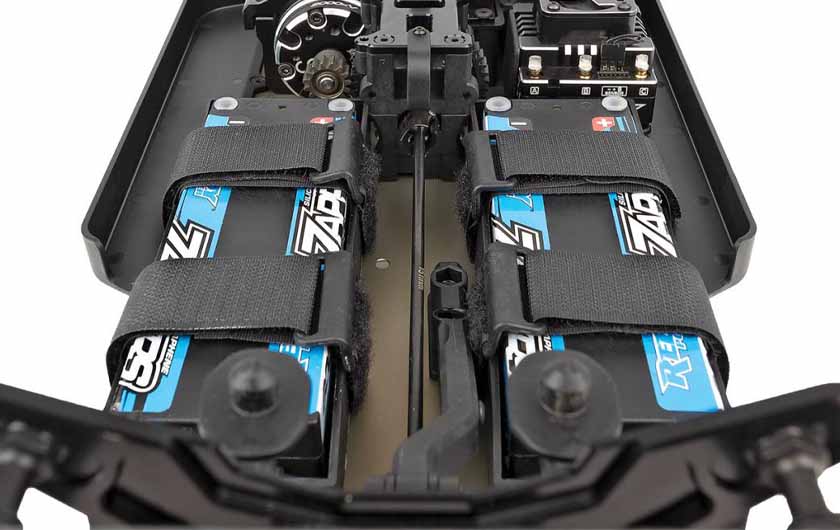

Chassis layout features double battery configuration
Chassis Layout

Chassis layout features saddle pack-style battery configuration for two 2S shorty batteries or one 4S shorty battery.

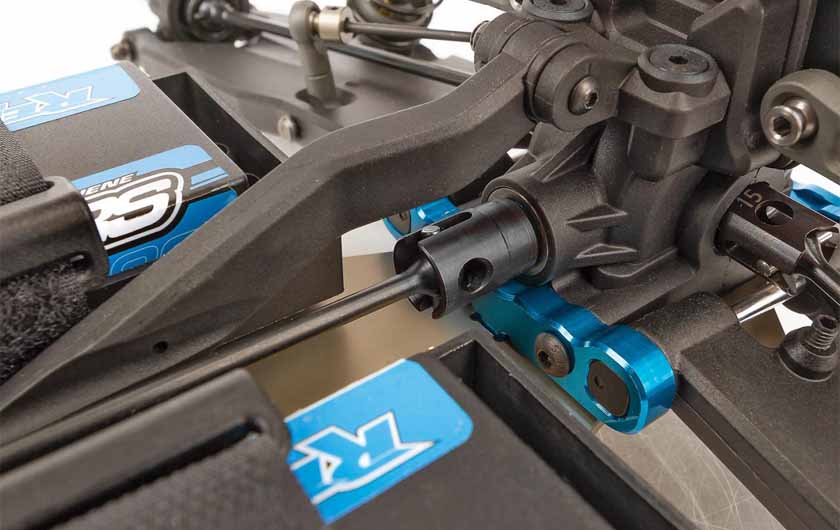

Drive-train includes dogbone driveshafts
Drive-Train

Front and rear dogbone driveshafts for improved drive-train efficiency and durability.

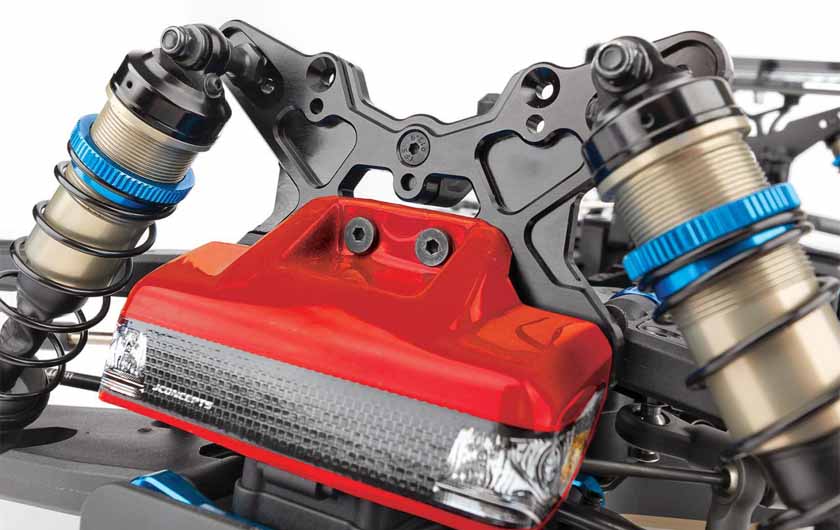

Shock towers have an updated design
Shock Towers

Updated front shock tower design and body mount positions for all styles of truck bodies.

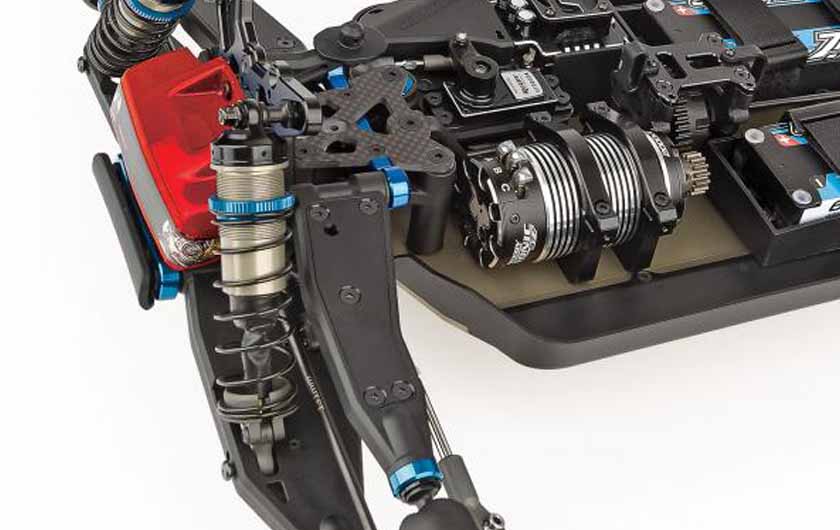

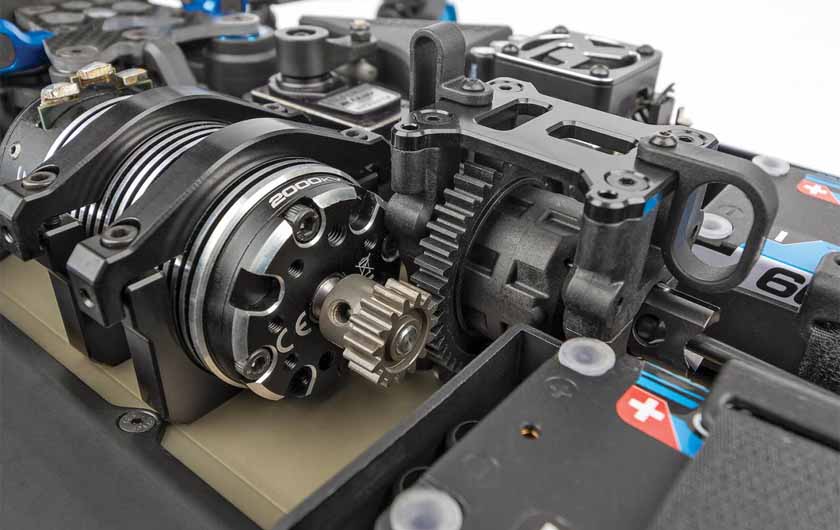

Motor is mounted using a two-piece clamping system
Motor Mount

Two-piece clamping motor mounts make for easy and secure gear mesh adjustments.

16mm aluminum shocks features improved plastic materials
Shocks

16mm shocks equipped with improved material locking spring cups and rod ends.

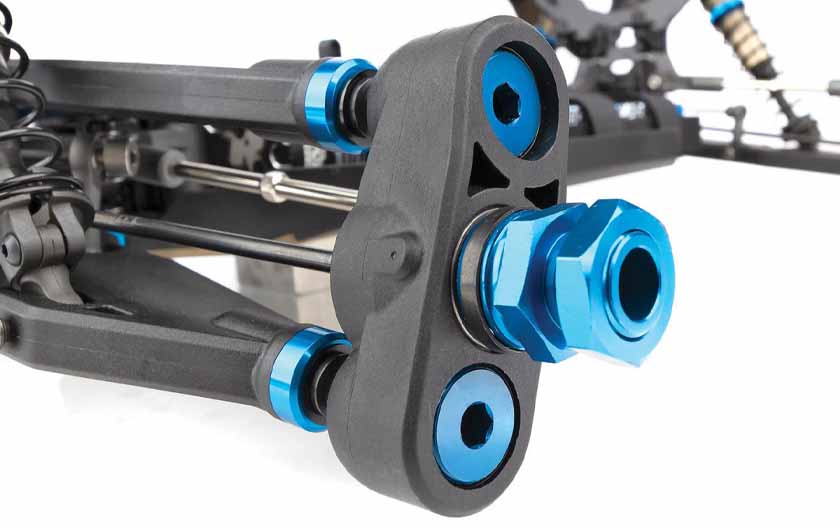

Front-end geometry with 8-degree steering blocks
Front-End Geometry

Innovative front-end geometry with 8-degree steering blocks.

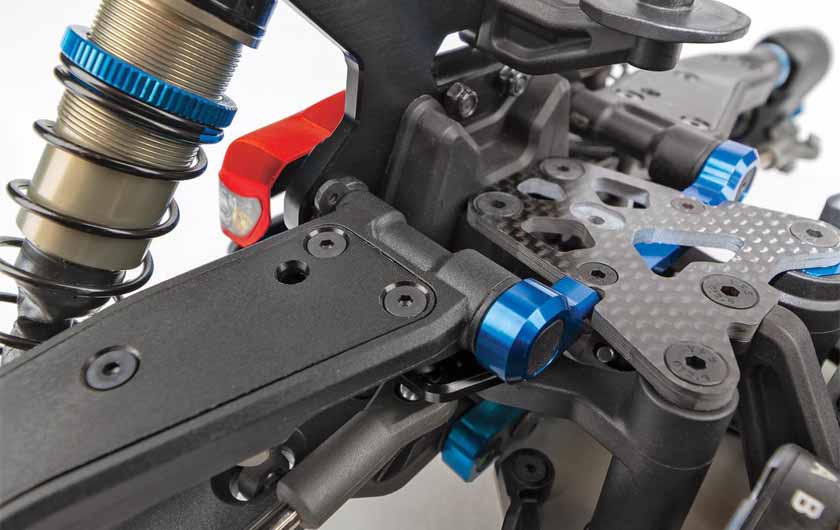

Updated suspension arms for better performance
Suspension Arms

Front upper suspension arms updated to have bushing insert for improved fit and performance.

Product Specifications

Battery Sold Separately
Body Sold Separately
Charger Sold Separately
Chassis Aluminum Chassis
Completion Level Kit
Differential Gear Diffs
Drive Type Forward/Brake/Reverse
Drivetrain 4WD
Manufacturer # 80952
Power Type Electric
Product Length 22.05" (560 mm)
Radio Sold Separately
Receiver Sold Separately
Scale 1/8
Servos Sold Separately
Shock Type Aluminum Shocks
Suspension Independent
Vehicle Type Truggy
