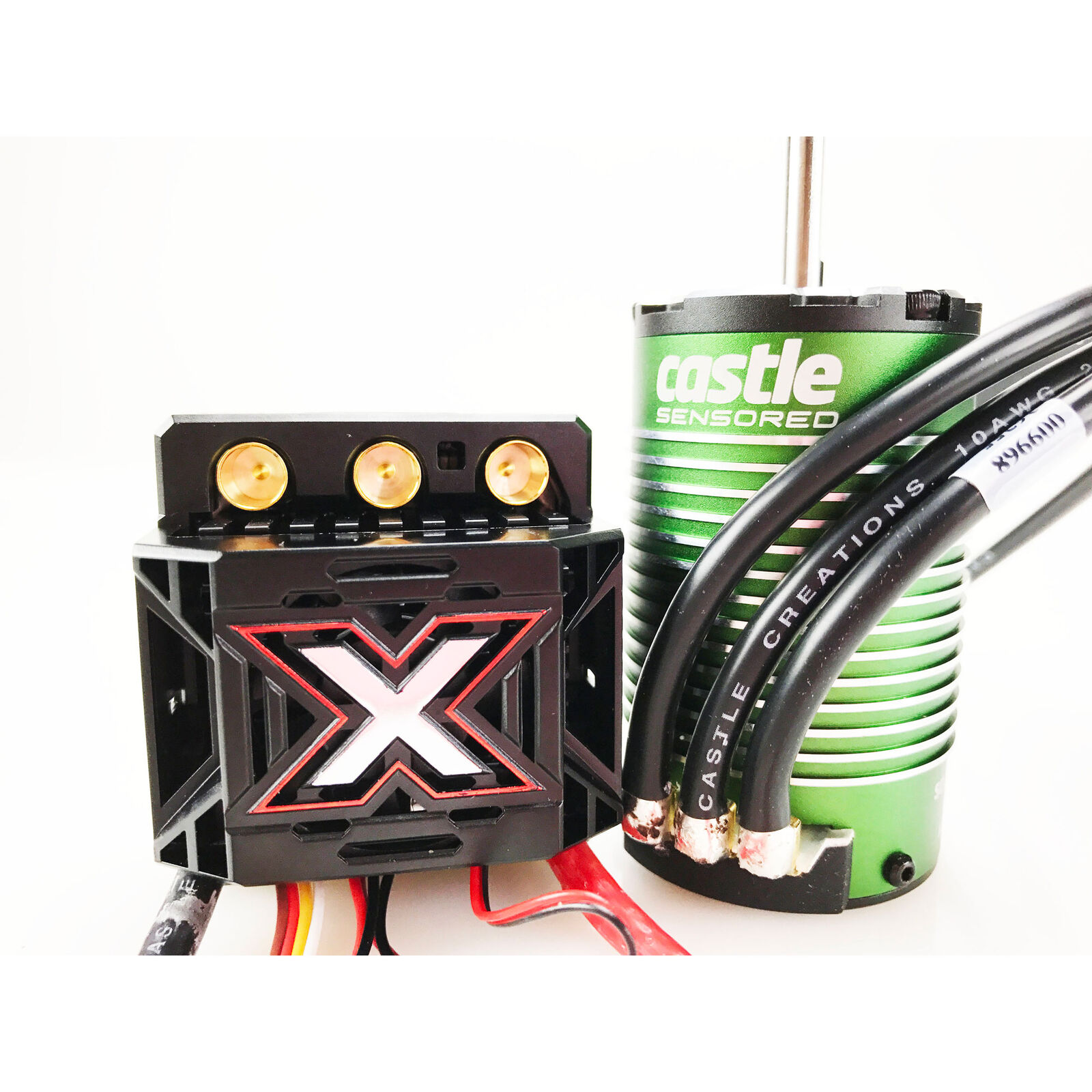

1/8 Mamba Monster X ESC/1515-2200KV Sensored Brushless Motor Combo: 6.5mm Bullet

Item No. CSE010014503
1/8 Mamba Monster X ESC/1515-2200KV Sensored Brushless Motor Combo: 6.5mm Bullet
Discontinued
Brand Logo
5 out of 5 Customer Rating

1/8 Mamba Monster X ESC/1515-2200KV Sensored Brushless Motor Combo: 6.5mm Bullet

Item No. CSE010014503
This Item is No Longer Available
Selected Store

Product Details

icon-box
In The Box
  • Mamba Monster X ESC
  • 1515-2200Kv Sensored Motor
  • Castle Sensor Harness adapter
  • 210mm length sensor wire (for sensored operation)
  • Coupon for free Castle Link USB adapter
  • Driver's Ed and Quick Start Guide
  • Castle Decals
Quick Links

Features

  • Input Voltage range 2S-6S
  • 8A Adjustable BEC (5.25V-8.0V)
  • 1515-2200Kv, 4-pole 12-slot sensored motor.
  • Waterproof design.
  • Removable 30MM cooling fan.
  • Convenient transmitter programming for six common adjustable settings.
  • Easily program and update ESC with use of Castle Link USB (coupon included for free USB with purchase) and freely downloadable Castle-Link Windows™ program.
  • Data Logging capable
  • Telemetry Ready
  • Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
  • Audible Alerts that will notify you of possible issues with calibrations and error conditions.
  • Designed and manufactured in Olathe, Kansas and is backed by our 1-year warranty.
*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

Overview

Our Mamba Monster X ESC and 1515-2200Kv are paired together and perform incredibly in monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot), and works great in 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 15 lbs. You will have all the power your 1:8th scale vehicle demands with the smoother throttle control of a sensored motor. Mamba Monster X takes Castle’s legendary “monster” performance to a whole new level.

Product Specifications

Connector Type 6.5mm Bullet
Motor Design Inrunner
Motor Type Brushless
