1/8 Inferno MP9e Evo V2 4X4 Off-Road 4S Brushless Buggy RTR

Item No. KYO34111
Discontinued
Brand Logo
4.4 out of 5 Customer Rating

1/8 Inferno MP9e Evo V2 4X4 Off-Road 4S Brushless Buggy RTR

Item No. KYO34111
This Item is No Longer Available
Selected Store

Product Details

Advanced racing buggy packed with the latest design features is ready for action almost straight out of the box!
Key Features
  • Fully Assembled Chassis
  • High Torque Waterproof Steering Servo
  • Dust Guards Equipped On Rear Suspension
  • Full Ball Bearing Specifications
  • Compatible With Most Optional Parts
icon-box
In The Box
  • (1) 1/8 Inferno MP9e Evo V2 4WD 4S Brushless Buggy RTR
  • (1) Syncro KT-331P Transmitter
  • (1) KYOSHO SPEED HOUSE Brushless Motor
  • (1) KYOSHO SPEED HOUSE ESC
  • (4) L Type Hexagonal Wrenches (1.5mm, 2.0mm, 2.5mm, 3.0mm)
  • (1) Cross Wrench
  • (1) 17mm Wheel Wrench
  • (1) Instruction Manual
icon-how-to
Needed to Complete
  • (4) AA Batteries for Transmitter
  • (2) 7.4V Batteries
  • (1) Battery Charger
1/8 Inferno MP9e Evo V2 4X4 Off-Road 4S Brushless Buggy RTR

Introduction

The Inferno MP9e competes at the highest level in major 1/8 scale electric buggy races around the world. To keep pace with the ever-changing race scene, continuous evolution ensures the MP9e Evo incorporates the latest racing technology. Based on the competition-level MP9e Evo, this “MP9e Evo. V2” Readyset package represents excellent performance value. While maintaining the exceptional flat maneuverability and aerial control of the previous model, the new chassis layout of the MP9e realizes improved balance for even greater control. The aero body has been designed specially for this electric racing buggy to deliver critical elements such as turning, traction and rough surface performance. At the heart of the MP9e is the new KYOSHO SPEED HOUSE brushless motor and ESC. This factory-finished Readyset package contains nearly everything needed to hit the track; all you need to add is a charged battery to the chassis and batteries for the transmitter! Experience off-road racing with the one machine that will never let you down, the MP9e!

Features

  • Rib reinforced long front suspension arms from the Inferno TKI4 realize superior steering response. Front hub carriers with wider 17.5° caster angle also contribute to improved running stability.
  • In addition to lower center of gravity from the lower position of the battery, the belt fastening doesn’t affect the chassis flex that contributes to roll and pitch.
  • Fully assembled chassis with completed body in a Readyset includes everything except battery for the chassis, battery charger and batteries for the transmitter.
  • Equipped with KYOSHO SPEED HOUSE brushless motor and ESC for dynamic power and performance.
  • Allows precise setting adjustment of wheelbase, tread, toe angle, camber angle, caster angle and roll center etc.
  • Dust guards equipped on rear suspension arms to minimize interference with the drive system.
  • Decals applied to wheels improve visibility and styling.
  • Full ball bearing specifications.
  • Compatible with most optional parts for the Inferno MP9.
  • Equipped with stabilizer that reduces roll during cornering and contributes to improved steering response.
  • High torque KS5031-09MW waterproof steering servo included.

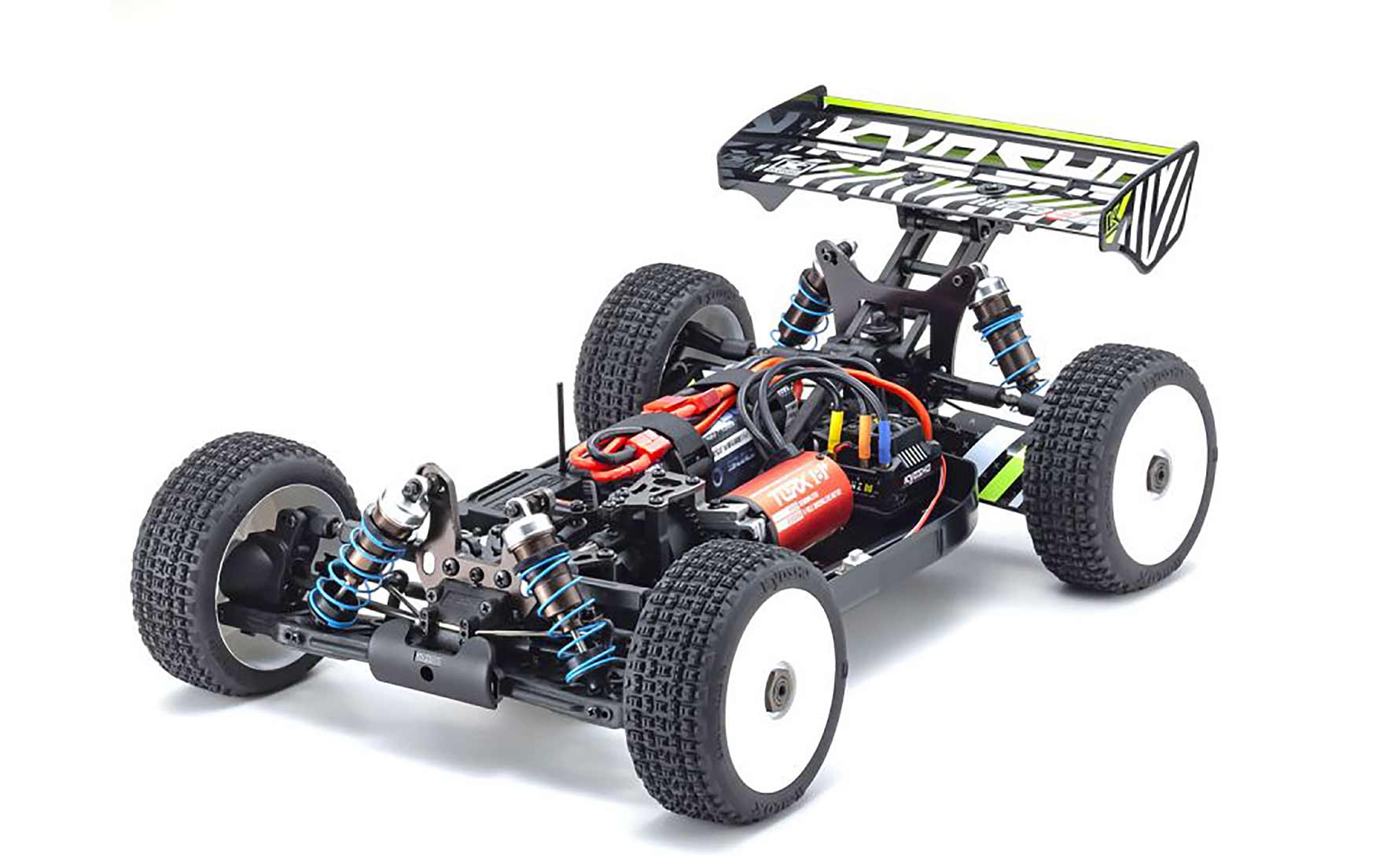

KYOSHO INFERNO MP9e Evo. V2



Specialized Layout
Specialized Layout

Specialized electric buggy layout with the optimal weight distribution came from the competition model of “Inferno MP9e Evo”. Full time shaft-drive 4WD model, equipped with 2-bevel front/center/rear sealed oil differential.

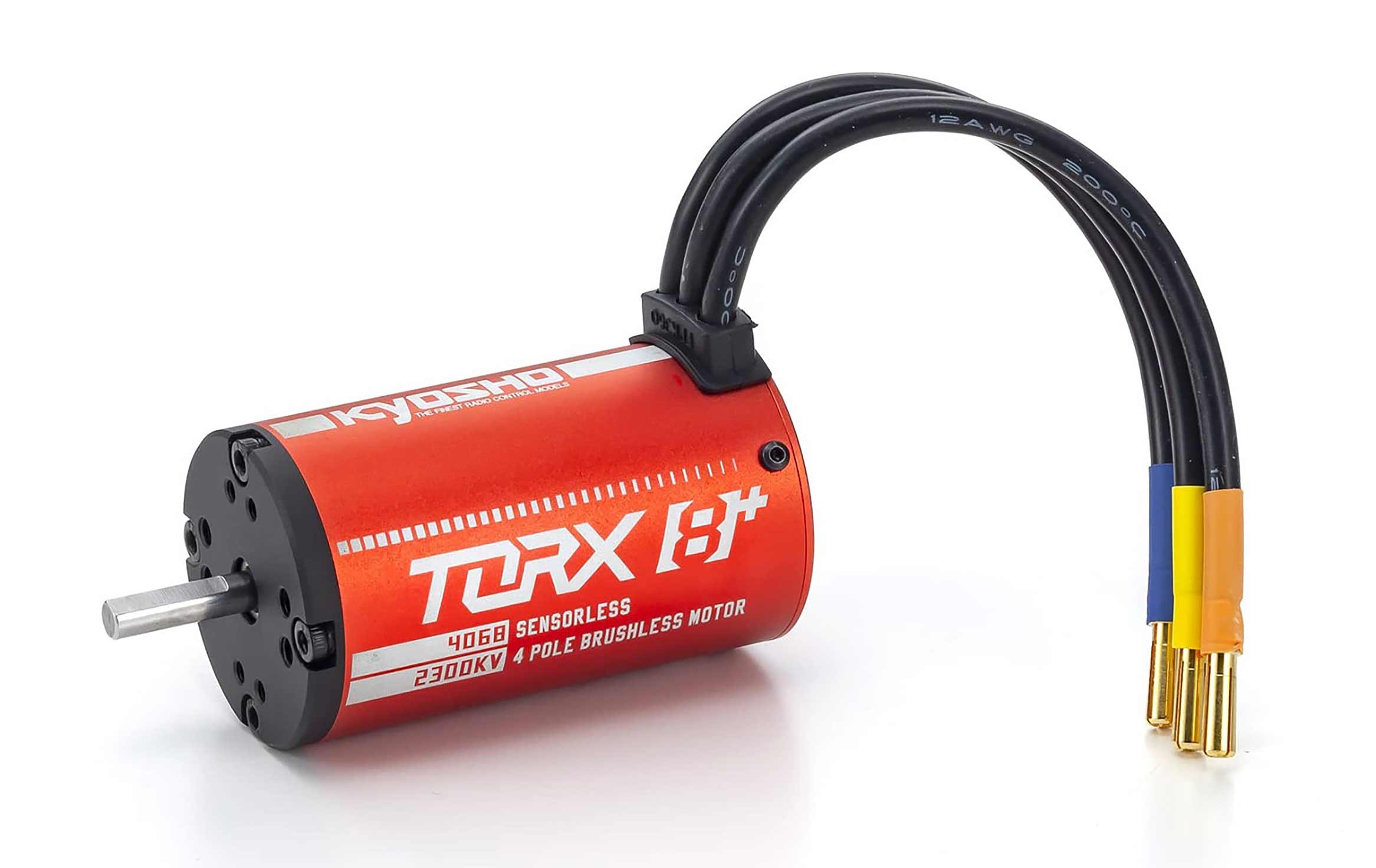

Waterproof Brushless Motor
Waterproof Brushless Motor

Features KYOSHO SPEED HOUSE 2300KV TORX 8+ (waterproof) brushless motor. Dynamic acceleration and power delivers breathtaking off-road performance.



Waterproof ESC
Waterproof ESC

KYOSHO SPEED HOUSE BRAINZ 8 waterproof ESC with electric fan included features adjustable functions such as brake, advance angle, cutoff voltage, heat protection etc. Special mount allows the ESC to be detached efficiently for maintenance.



Polycarbonate Body
Polycarbonate Body

With the same aero body shell as competition kit features center fins and narrowed cabin with a lower center of gravity to deliver dramatically improved running stability.



Aluminum Oil Shocks
Aluminum Oil Shocks

Big bore machined aluminum oil shocks realize excellent shock absorption and rock solid running stability under any driving conditions.



Sliding Motor Mount
Sliding Motor Mount

Motor is secured firmly with the sliding motor mount that allows easy backlash adjustment and detachment of the motor by loosening just two screws from above.

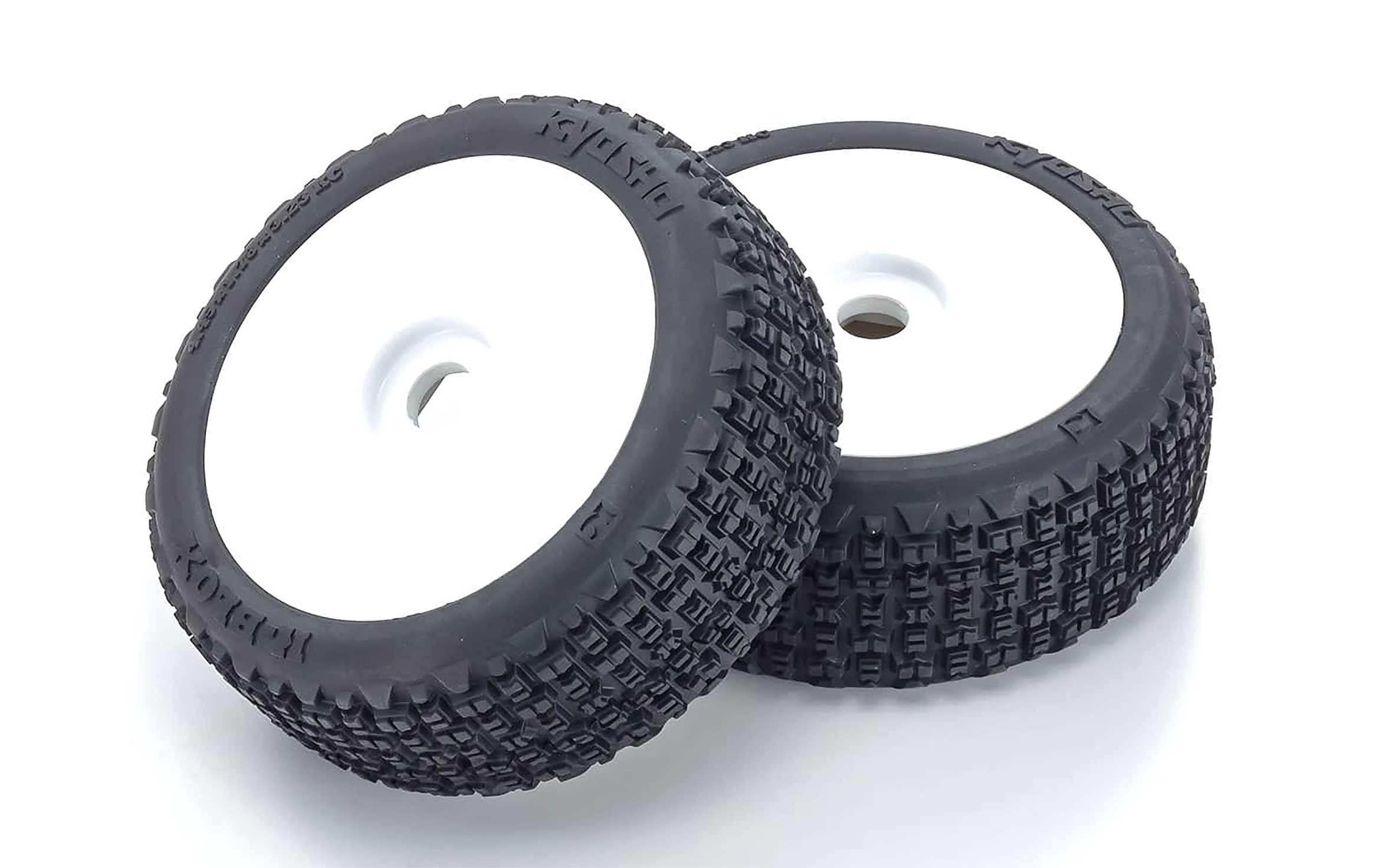

“K-Blox” Tires
“K-Blox” Tires

The newly designed “K-Blox” tires improve grip on various on-road and off-road surfaces with changing higher pins.



Syncro KT-331P Transmitter
Syncro KT-331P Transmitter

Includes advanced function Syncro KT-331P transmitter that allows easy adjustment of settings with jog dials while viewing the LCD screen.



Product Specifications

Approximate Assembly Time Fully Assembled
Ball Bearings Full Ball Bearings
Battery Sold Separately
Body Pre-Painted Polycarbonate
Charger Sold Separately
Chassis Aluminum Chassis
Completion Level Ready-To-Run
Connector Type Deans
Differential Gear Diffs
Drive Type Forward/Brake/Reverse
Drivetrain 4WD
Motor Type Brushless
Power Type Electric
Product Height 7.08661" (180 mm)
Product Length 19.2913" (490 mm)
Product Width 12.0866" (307 mm)
Radio Included
Receiver Included
Scale 1/8
Servos Included
Shock Type Oil-Filed, Coil-Over
Speed Control Included
Steering Type 2WS
Suspension Independent
Vehicle Size Standard
Vehicle Type Buggy
Water-Resistant Yes
Wheel Hex Size 17mm
Wheelbase 12.7953" (325 mm)
