Product Details

Pure-racing Truggy based on the MP10 leaves rivals in the dust!
Key Features
  • 4WD Chassis Is Based On The 1/8 Scale MP10 Racing Buggy
  • 3mm Thick Aluminum Main Chassis
  • Battery And Receiver Are Arranged In Separate Radio Box
  • Fuel Tank Realizes Improved Crash Resistance
  • Compatible With Most MP10 Optional Parts
icon-box
In The Box
  • (1) 1/8 Inferno MP10T
  • (1) Clear Body
  • (1) Decal Sheet
icon-how-to
Needed to Complete
  • (1) 2+ Channel Radio System
  • (2) Standard-Size Servos
  • (1) Receiver Battery
  • (1) Battery Charger
  • (1) 21-28 Class Rear Exhaust Engine (P Shaft Specification)
  • (1) Muffler Set
  • (1) Starter Box
  • (1) Fuel Pump
  • (4) Wheels And Tires

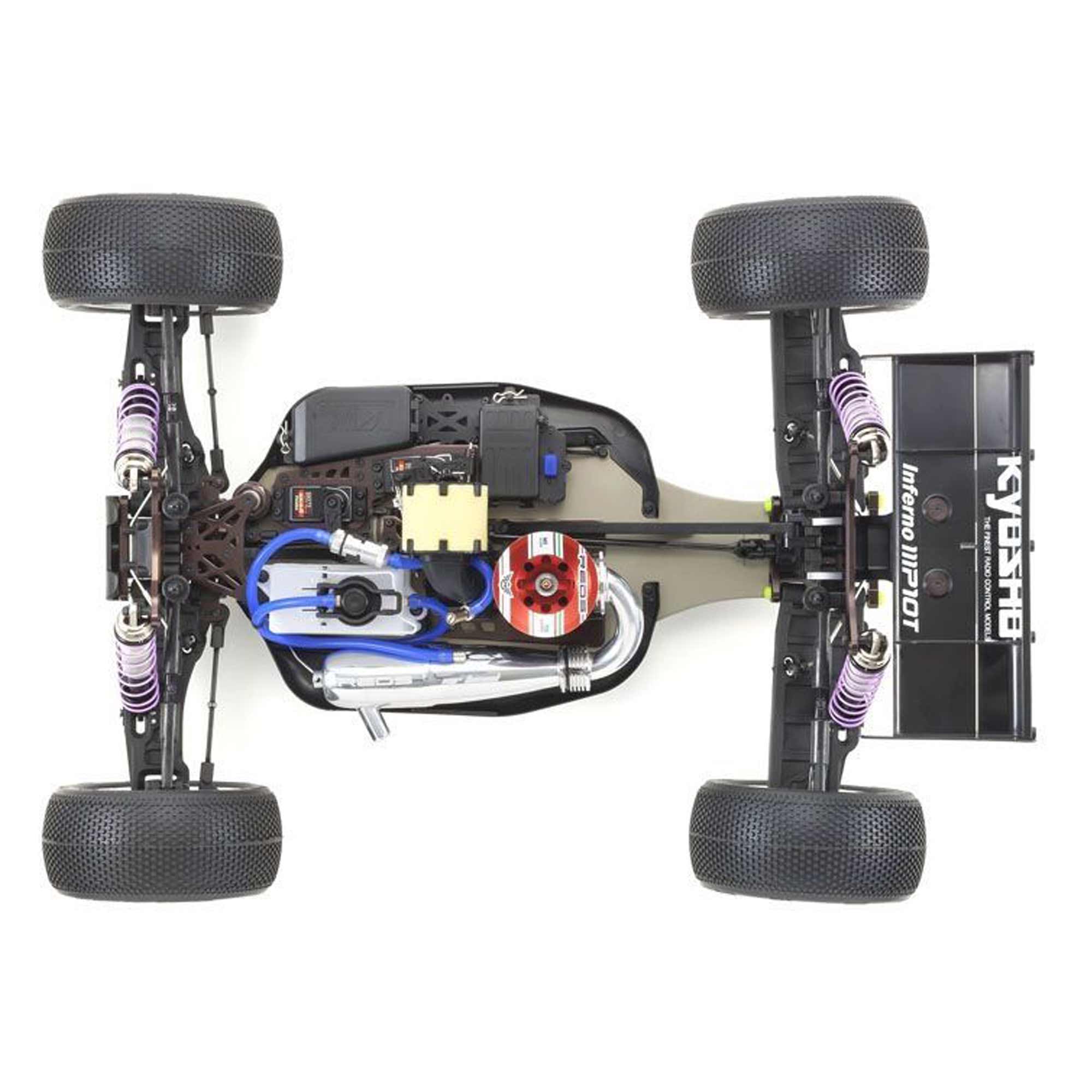

1/8 Inferno MP10T 4X4 Off-Road .21-.28 Nitro Stadium Truck Kit

Introduction

The pinnacle of R/C car racing is the IFMAR (International Federation of Model Auto Racing) World Championships. With an unrivaled record of eight championship titles, the INFERNO sets the standard in 1/8 engine buggy racing. Since its release in January 2019, the latest MP10 model has been scorching racetracks around the world. With the MP10 as its base, Kyosho is proud to introduce the pure racing specification MP10T Truggy.

Features

  • 3-diff shaft drive 4WD chassis is based on the 1/8 scale MP10 racing buggy with the most advanced specifications.
  • Machine cut 3mm thick aluminum main chassis has been hard anodized to produce high strength and durability.
  • I-arm design on the front upper arm enables easy adjustment of suspension geometry.
  • Larger φ4.5mm diameter sus shafts deliver both superior durability and reliability.
  • One-piece clutch bell (lightweight) realizes excellent heat dissipation and response.
  • Reinforced tie rod ends don’t interfere with the inside of the tires when steering is at full throw.
  • Brake pad features special adhesion between the pad and the plate.
  • Battery and receiver are arranged in separate radio box to minimize trouble and optimize weight distribution.
  • Fuel tank realizes improved crash resistance and stable fuel supply.
  • Newly designed side guard is lighter due to reduced thickness and height.
  • Wheel nuts with serrated finish on reverse side provide superior wheel security.
  • Compatible with most MP10 optional parts for upgrading your machine to the next level.

Overview

Representing the latest in off-road racing technology, the Inferno MP10T is a full model change from the previous Inferno ST-RR Evo2. Improved driving performance is complimented by increased reliability and durability for superior endurance racing performance. Maintenance-friendly design features facilitate fast and reliable setup that can be depended on in the pressure of high-intensity racing. Leaving all Truggy rivals behind, the MP10T is the one machine you need to dominate the podium.

1/8 Inferno MP10T



Chassis
Chassis

Equipment is mounted as far forward on the chassis as possible to rebalance weight distribution for optimal steering control and running performance over rough surfaces.



Suspension Arms
Suspension Arms

Opened sections in the front and rear suspension arms have been made solid to realize increased strength and rigidity as well as preventing dirt build up for easier maintenance. Reinforced sections where the larger diameter sus shafts pass through also improve crash durability.



Oil Shocks
Oil Shocks

Oil shocks based on the MP10 are equipped with the aeration cap set to deliver superior surface tracing over rough roads so you feel the machine grip as it powers forward.



Upper Arms
Upper Arms

Shock stay features optimized mounting holes for the shocks and upper arms. In addition, the opened sections on the rear shock stay have been made solid for increased strength and to prevent dirt from catching.



Adjustable Suspension
Adjustable Suspension

Suspension geometry can be quickly and easily adjusted with the aluminum suspension holders and sus bushes on front and rear. In addition, the wheelbase can be adjusted to suit course characteristics and your driving style.



Stabilizers
Stabilizers

Stabilizers equipped on front/rear suspension controls the roll of the chassis. Integrated resin parts in the stabilizer link feature two ball ends secured with a setscrew for efficient maintenance.



Engine Mount
Engine Mount

Engine mount plate minimizes chassis flex through jumps by improving rigidity of the engine mount and chassis pitching characteristics while also protecting the engine block from chassis flex.



Rear Wing
Rear Wing

Rear wing features two vertical fins to enhance stability through jumps. A gurney flap can be attached to the trailing edge for three downforce adjustment settings: without flap/5mm/8mm. Integrated molded resin wing stay produces stable downforce.



Aerodynamic Body
Aerodynamic Body

Aerodynamic body features a compact cabin that narrows towards the rear. Similar to the MP10, wings on trailing edge of the side pontoons also increases rear grip.



Product Specifications

Battery Sold Separately
Body Clear Polycarbonate
Charger Sold Separately
Chassis Aluminum Chassis
Completion Level Kit
Differential Gear Diffs
Drivetrain 4WD
Gear Ratio 16.3:1
Motor Size .21 ~ .28
Power Type Nitro
Product Length 22.6378" (575 mm)
Product Weight 3,870g
Product Width 16.8504" (428 mm)
Radio Sold Separately
Receiver Sold Separately
Scale 1/8
Servos Sold Separately
Shock Type Oil-filled, Coil-over
Steering Type 2WS
Vehicle Size Standard
Vehicle Type Truggy
Wheelbase 15.1969" (386 mm)
