This Item is No Longer Available
Selected Store
1/5 OUTCAST 4X4 8S BLX EXB Brushless Stunt Truck RTR, Black
1/5 OUTCAST 4X4 8S BLX EXB Brushless Stunt Truck RTR, Black
ARA5810V2T1
View Alternate Product Details

Product Details

Fully assembled and ready for your choice of electronics, the ARRMA® OUTCAST 1/5 4WD Extreme Bash Stunt Truck Roller adds extra toughness everywhere it counts — making it the ultimate platform for performing stunts and bashing over brutal terrain.
Key Features
  • EXB 7075 T6 5mm thick CNC aluminum laser-etched chassis plate
  • EXB Matte and gloss effect body
  • Oil-filled adjustable 20mm bore shocks with 6mm thick shock shafts and new plush shock tuning
  • dBoots® Back-Flip tires
  • All-metal diff outdrives and gearbox internals
icon-box
In The Box
  • (1) ARRMA® OUTCAST™ 1/5 4WD Extreme Bash Stunt Truck Roller
  • (1) Optional 39T Spur Gear
  • (1) 49 Series Motor Plate
  • (1) 56 Series Motor Plate
  • (1) 1/5 Servo Mounts
  • (1) 1/6 Servo Mounts
  • (1) 1/5 OUTCAST 4WD EXtreme Bash Roller Manual
icon-how-to
Needed to Complete
  • (1) 2+ Channel Transmitter and Receiver
  • (1) Metal Gear, Hi-Torque 1/5 Scale Steering Servo
  • (1) Electronic Speed Control
  • (1) Motor
  • (2) 3S or 4S LiPo Battery
  • (1) Compatible LiPo Battery Charger
  • (1) Pinion Gear
1/5 OUTCAST 4X4 EXtreme Bash Roller Stunt Truck, Black

Don't forget these great accessories!

$46.99
5 out of 5 Customer Rating
$16.99
4.4 out of 5 Customer Rating

Introduction

This is ARRMA® bashing performance at its biggest and best! Fully assembled and ready to complete with your choice of radio and 8S brushless power system, the 1/5 OUTCAST 4WD EXtreme Bash Stunt Truck Roller is the perfect platform for blasting over rough terrain and performing flips and tricks with ease.

Features

  • EXB 7075 T6 5mm thick CNC aluminum laser-etched chassis plate
  • EXB Red-anodized CNC aluminum front brace mount
  • EXB Matte and gloss effect body
  • Heavy-duty 8mm thick steel rear turnbuckles
  • Heavy-duty 7mm thick steel steering turnbuckles
  • Oil-filled adjustable 20mm bore shocks with 6mm thick shock shafts and new plush shock tuning
  • Heavy-duty servo saver springs
  • Front and rear sway bars
  • Red-anodized aluminum 49 and 56 series motor plates
  • dBoots® Back-Flip tires
  • 47T and optional 39T Spur Gear
  • Servo mounts for 1/5 and 1/6 servos
  • Wheelie bar
  • Front bumper with impact-absorbing design
  • Easy-access 3-bolt sliding motor mount for quick motor removal
  • Ultra-thick composite front and rear shock towers
  • Black anodized aluminum rear lower chassis brace
  • Multi-structured center brace system for maximum durability
  • Heavy-duty drivetrain
  • Easy-access front and rear diff module design
  • All-metal diff outdrives and gearbox internals
  • Durable steel driveshafts
  • Durable wheel hubs for increased strength
  • Easy-access waterproof electronics module
  • Center body support and brace for maximum durability
  • Strong composite chassis side pods
  • 2-year warranty (see website support for details)

Overview

Equipped right out of the box with a premium package of EXtreme Bash (EXB) parts and options, the 1/5 OUTCAST 4WD EXB Stunt Truck Roller is the top-of-the-line ARRMA® large-scale stunt vehicle. It has extra toughness everywhere it counts. Components receiving the EXB treatment include the 5mm thick EXB 7075 T6 CNC aluminum laser-etched chassis plate; EXB red-anodized CNC aluminum front brace mount; and exclusive EXB matte and gloss effect finished body for a look unlike any other vehicle.

With adjustable, oil-filled, 20mm bore shocks on ultra-thick composite towers soaking up the bumps, the 1/5 OUTCAST 4WD EXB Stunt Truck Roller blasts over dirt, asphalt, and grass — all terrain and all conditions. Long-lasting dBoots® Back-Flip tires on multi-spoke wheels with durable hubs add all-terrain traction. Everything in the durable design contributes to confident control and responsive handling.

A center body support, aluminum center braces and composite chassis side pods add more strength. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, provide a reliable, heavy-duty drivetrain that holds up to demanding stunts and brutal terrain.

ARRMA® engineering also cuts your maintenance time to the minimum. The 1/5 OUTCAST 4WD EXB Stunt Truck Roller has an efficient, driver-friendly design, with easy-access front and rear diff modules and a sliding mount for fast, hassle-free motor access. The easy-access, molded electronics module contains a waterproof receiver box, servo mount and ESC tray, and is ready to protect your choice of electronics from dirt and moisture.

It all adds up to make the 1/5 OUTCAST 4WD EXtreme Bash Stunt Truck Roller more than just massive and powerful. It's the ultimate ARRMA® stunt bash machine for the ultimate large-scale experience.

Video Overview

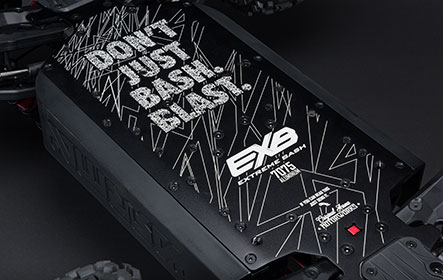

EXB (EXtreme Bash) Components
EXB (EXtreme Bash) Components

EXB-hardened components throughout its fully assembled chassis give the 1/5 scale ARRMA® OUTCAST EXtreme Bash Stunt Truck Roller virtually unstoppable strength.

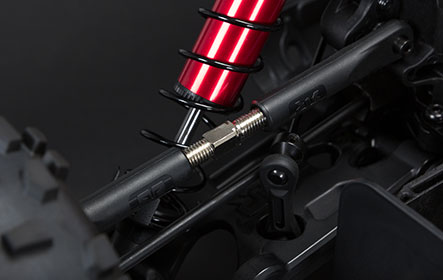

Steel Turnbuckles
Steel Turnbuckles

Heavy-duty components including the 8mm thick steel rear turnbuckles and 7mm thick steel steering turnbuckles enable the 1/5 scale OUTCAST EXB to withstand extreme off-road bashing.

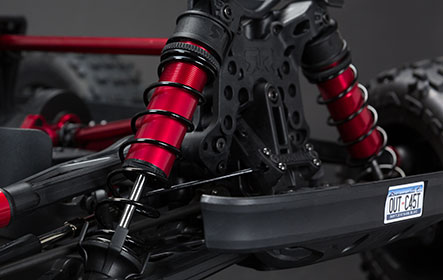

Oil-Filled Shocks
Oil-Filled Shocks

Mounted on ultra-thick composite front and rear towers and featuring new plush shock tuning, the adjustable, oil-filled, 20mm bore shocks with 6mm thick shock shafts easily soak up bumps.

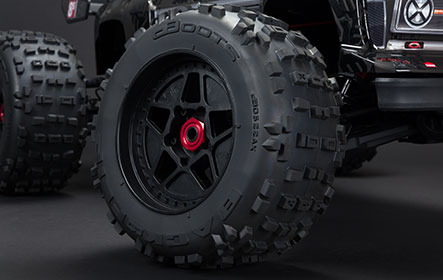

High-Traction dBoots<sup>®</sup> Tires
High-Traction dBoots® Tires

Long-lasting dBoots® Back-Flip tires on multi-spoke wheels with durable hubs deliver all-terrain traction — and add an aggressive edge to the EXB matte and gloss effect finished truck body.

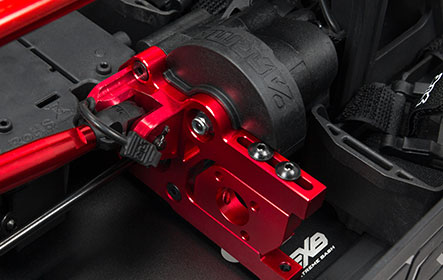

Quick Motor Access
Quick Motor Access

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. For example, the easy-access, 3-bolt sliding motor mount allows quick motor removal.

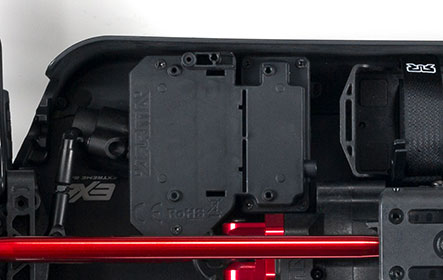

Electronics Module
Electronics Module

The easy-access, molded electronics module screwed to the chassis contains a waterproof receiver box, servo mount and ESC tray — ready to protect your electronics from dirt and moisture.

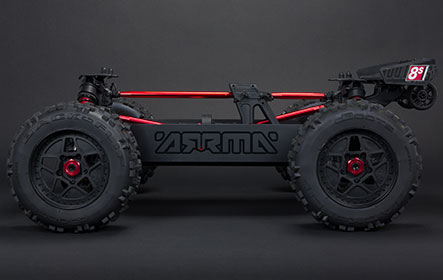

Multi-Structured Center Brace System
Multi-Structured Center Brace System

Made of rugged anodized 7075 T6 aluminum, the laser-etched 5mm chassis plate includes strong composite chassis side pods and a center body support and brace for maximum durability.



Durable Metal Construction
Durable Metal Construction

Durable steel driveshafts plus all-metal diff outdrives and gearbox internals keep the heavy-duty 4-wheel drivetrain rolling over punishing tracks. An EXB-toughened suspension system smooths the ride.



Product Specifications

Approximate Assembly Time 1 - 3 Hours
Ball Bearings Full Set, Rubber Shielded
Battery Sold Separately
Battery Tray Dimensions 6.69 x 2.16 x 2.09 in (170 x 55 x 53mm)
Body Painted, decalled and trimmed
Brakes Integral with ESC (ESC not included)
Charger Sold Separately
Chassis 5mm plate, 7075-T6 aluminum
Completion Level Roller
Differential 3 Differentials, Gear Type Design
Drive Type Forward/Brake/Reverse
Drivetrain 4WD
Final Drive Ratio 9.1 - 28.4
Front Track 23.46" (596mm)
Gear Pitch 1.0 MOD
Internal Gear Ratio 9.06
Power System Roller
Power Type Electric
Product Height 12.01" (305 mm)
Product Length 28.11" (714 mm)
Product Weight 23.32lbs (10.6kg)
Product Width 23.46" (596 mm)
Radio Sold Separately
Rear Track 23.46" (596mm)
Receiver Sold Separately
Scale 1/5
Servos Sold Separately
Shock Type Aluminum Body Oil-Filled Coil-Over Springs
Speed Control Sold Separately
Spur Gear 47T and 39T included
Suspension Independent
Vehicle Type Stunt Truck
Water-Resistant Yes
Wheel Hex Size 24mm
Wheelbase 16.93" (430 mm)
