Product Details

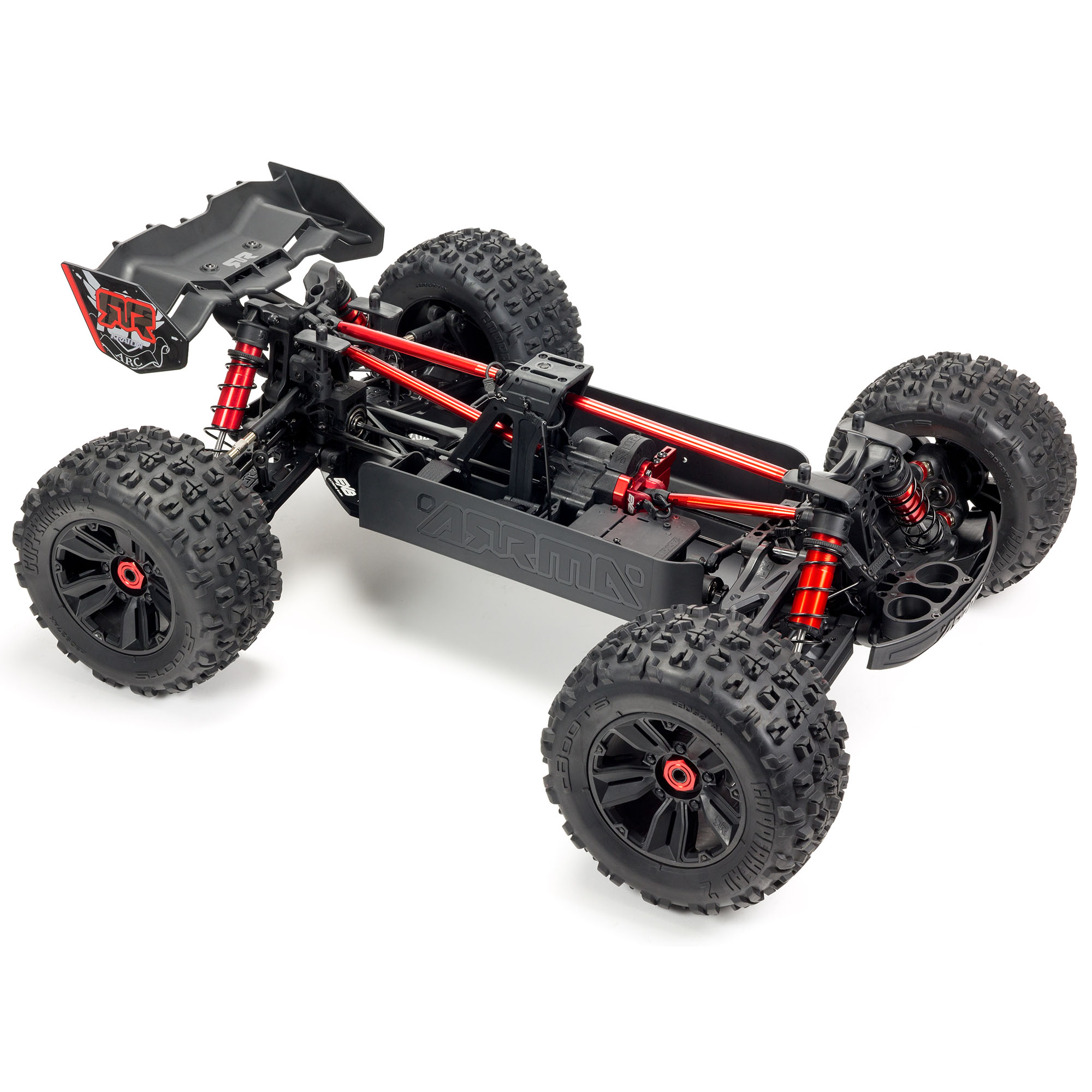

Fully assembled and ready for your powerful electronics, the ARRMA® KRATON™ 1/5 4WD EXtreme Bash Roller Speed Monster Truck adds extra toughness everywhere it counts. Topped with an exclusive EXB matte and gloss finish body, it’s the King of KRATONS!
Key Features
  • Add your choice of electronics to be as fast and powerful as you like
  • Numerous EXtreme Bash parts and options for extreme durability — the ultimate large-scale vehicle out of the box
  • EXB 7075 T6 5mm thick CNC aluminum laser-etched chassis plate
  • EXB Red-anodized CNC aluminum front brace mount
  • Exclusive EXB matte and gloss effect body
icon-box
In The Box
  • (1) ARRMA® KRATON™ 1/5 4WD EXtreme Bash Roller Speed Monster Truck
  • (1) Optional 39T Spur Gear
  • (1) Red-Anodized Aluminum 49 and 56 Series Motor Plates
  • (1) Mounts for 1/5 and 1/6 Servos
  • (1) Adapters for 15T and 17T Servo Splines
  • (1) Product Manual
icon-how-to
Needed to Complete
  • (1) 2+ Channel Transmitter and Receiver
  • (1) Metal Gear, Hi-Torque 1/5 Scale Steering Servo
  • (1) Electronic Speed Control
  • (1) Motor
  • (2) 3S or 4S LiPo Battery
  • (1) Compatible LiPo Battery Charger
  • (1) Pinion Gear
1/5 KRATON 4WD EXtreme Bash Roller, Black

Introduction

The KRATON 1/5 4WD EXtreme Bash Roller Speed Monster Truck showcases ARRMA® bashing performance at its biggest and best — it's the King of all KRATONS, providing large scale bashers with the ultimate Speed Monster Truck experience. Add your choice of powerful 8S brushless power system and watch the KRATON 1/5 EXB blast over punishing off-road terrain with ease.

Features

  • Designed Fast, Designed Tough
  • Add your choice of electronics to be as fast and powerful as you like
  • Numerous EXtreme Bash parts and options for extreme durability — the ultimate large-scale vehicle out of the box
  • EXB 7075 T6 5mm thick CNC aluminum laser-etched chassis plate
  • EXB Red-anodized CNC aluminum front brace mount
  • EXB Front bumper with impact absorbing design
  • Exclusive EXB matte and gloss effect body
  • Heavy-duty shocks with 6mm thick shock shafts and beefy shock rod ends
  • Heavy-duty 7mm thick steering turnbuckles and 8mm thick rear suspension upper link turnbuckles with massive rod ends
  • Heavy-duty COPPERHEAD 2 Big Block tires
  • Black-anodized aluminum rear lower chassis brace
  • Center body support and brace for maximum durability
  • Strong composite chassis side pods
  • Front and rear sway bars
  • Red-anodized aluminum 49 and 56 series motor plates
  • Easy-access front and rear diff module design
  • 47T and optional 39T spur gear
  • Servo mounts for 1/5 and 1/6 servos
  • 15T and 17T servo saver adaptors
  • Heavy-duty servo saver springs

Overview

ARRMA® engineers have added extra toughness everywhere it counts to make the fully assembled chassis a perfect platform for high-speed bashing over brutal terrain. Numerous EXB-hardened parts and options give the KRATON 1/5 4WD EXtreme Bash Roller Speed Monster Truck virtually unstoppable strength right out of the box. They include a 5mm thick EXB 7075 T6 CNC aluminum laser-etched chassis plate; EXB red-anodized CNC aluminum front brace mount; and EXB front bumper with impact absorbing design. Topping it off is an exclusive EXB matte and gloss effect finished body for a look unlike any other vehicle.

With adjustable, oil-filled, 20mm bore shocks on ultra-thick composite towers soaking up the bumps, the KRATON 1/5 4WD EXtreme Bash Roller Speed Monster Truck blasts over dirt, asphalt, and grass — all terrain and all conditions. Beefy dBoots® COPPERHEAD 2 big block tires on multi-spoke wheels with durable hubs add all-terrain traction. Everything in the durable design contributes to confident control and responsive handling at high speeds.

A center body support, aluminum center braces and composite chassis side pods add more strength. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, provide a reliable, heavy-duty drivetrain that holds up to extreme, high-speed bashing.

ARRMA® also keeps your maintenance downtime to the minimum. The KRATON 1/5 4WD EXtreme Bash Roller Speed Monster Truck has an efficient, driver-friendly design, with easy-access front and rear diff modules and a sliding mount for fast, hassle-free motor access. The easy-access, molded electronics module contains a waterproof receiver box, servo mount and ESC tray, and is ready to protect your choice of electronics from dirt and moisture.

It all adds up to make the KRATON 1/5 4WD EXtreme Bash Roller Speed Monster Truck more than just a massive and powerful bashing machine. It's the best of the best — the King of the KRATONS!

Video Overview



EXB (EXtreme Bash) Components
EXB (EXtreme Bash) Components

EXB-hardened components throughout its fully assembled chassis give the 1/5 scale ARRMA® KRATON EXtreme Bash Roller Speed Monster Truck virtually unstoppable strength.



Steel Turnbuckles
Steel Turnbuckles

Heavy-duty components including the 8mm thick steel rear turnbuckles and 7mm thick steel steering turnbuckles enable the 1/5 scale KRATON EXB to withstand extreme off-road bashing.



Oil-Filled Shocks
Oil-Filled Shocks

Mounted on ultra-thick composite front and rear towers and featuring new plush shock tuning, the adjustable, oil-filled, 20mm bore shocks with 6mm thick shock shafts easily soak up bumps.



High-Traction dBoots<sup>®</sup> Tires
High-Traction dBoots® Tires

Beefy dBoots® COPPERHEAD 2 big block tires on multi-spoke wheels with durable hubs deliver all-terrain traction — and add an aggressive edge to the EXB matte and gloss effect finished truck body.



Quick Motor Access
Quick Motor Access

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. For example, the easy-access, 3-bolt sliding motor mount allows quick motor removal.



Electronics Module
Electronics Module

The easy-access, molded electronics module screwed to the chassis contains a waterproof receiver box, servo mount and ESC tray — ready to protect your electronics from dirt and moisture.



Multi-Structured Center Brace System
Multi-Structured Center Brace System

Made of rugged anodized 7075 T6 aluminum, the laser-etched 5mm chassis plate includes strong composite chassis side pods and a center body support and brace for maximum durability.



Durable Metal Construction
Durable Metal Construction

Durable steel driveshafts plus all-metal diff outdrives and gearbox internals keep the heavy-duty 4-wheel drivetrain rolling over punishing tracks. An EXtreme Bash toughened suspension system smooths the ride.



Product Specifications

Approximate Assembly Time 1 - 3 hours
Body Painted, decalled and trimmed
Brakes Integral with ESC (ESC not included)
Scale 1/5
Charger Sold Separately
Differential 3 Differentials, Gear Type Design
Receiver Sold Separately
Shock Type Aluminum Body Oil-Filled Coil-Over Springs
Battery Sold Separately
Internal Gear Ratio 9.06
Product Length 30.35" (771 mm)
Spur Gear 47T and 39T included
Suspension Independent
Battery Tray Dimensions 6.69 x 2.16 x 2.09 in (170 x 55 x 53mm)
Front Track 23.7" (602mm)
Power System Roller
Product Width 23.7" (602 mm)
Radio Sold Separately
Ball Bearings Full Set, Rubber Shielded
Chassis 5mm plate, 7075-T6 aluminum
Completion Level Roller
Product Weight 23.32 lb (10.6kg)
Vehicle Type Monster Truck
Water-Resistant Yes
Final Drive Ratio 9.1 - 28.4
Rear Track 23.7" (602mm)
Speed Control Sold Separately
Wheelbase 19.33" (491 mm)
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Product Height 11.1" (282 mm)
Top Speed 55+
Wheel Hex Size 24mm
Power Type Electric
Gear Pitch 1.0 MOD
Servos Sold Separately
