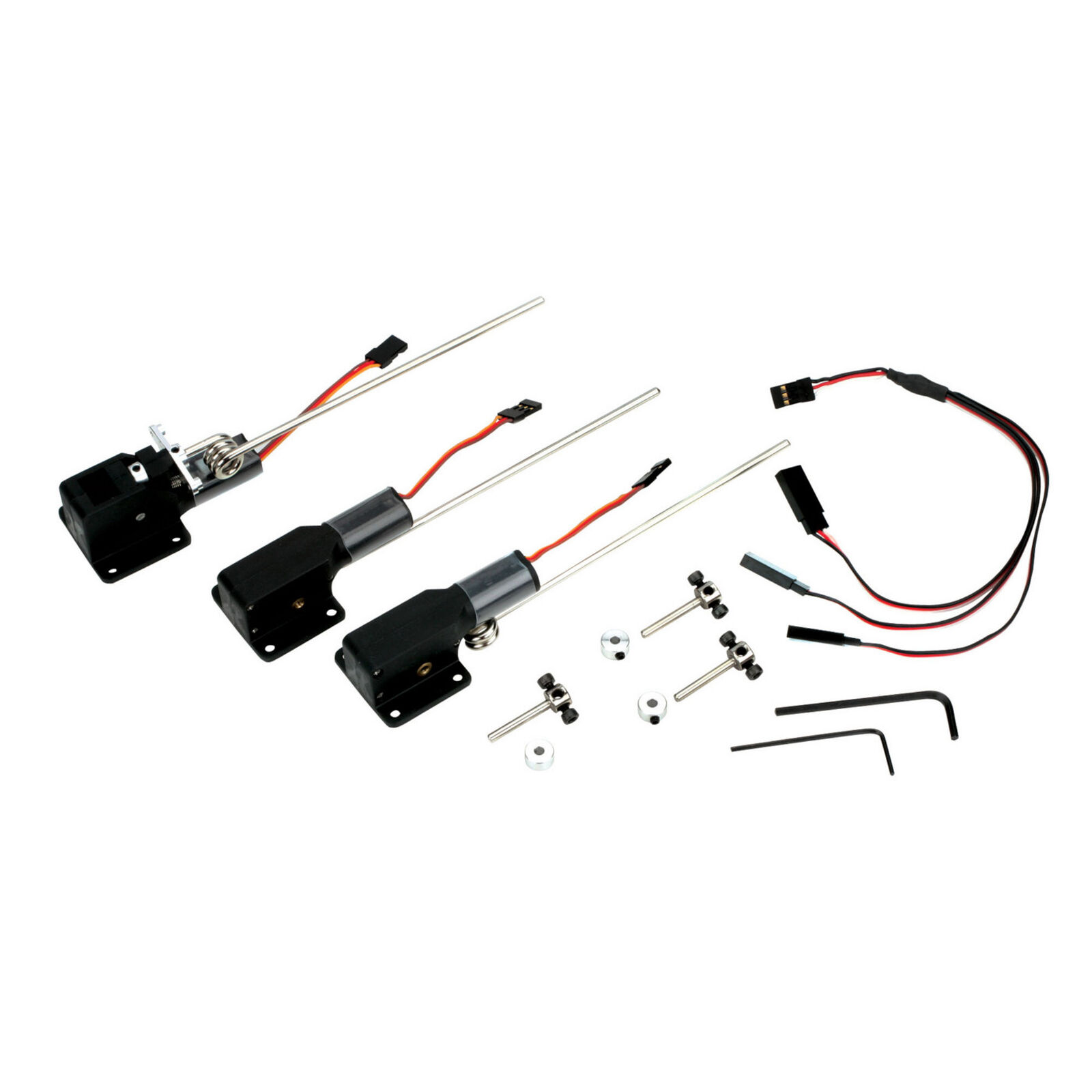

15 - 25 Tricycle Electric Retracts

Item No. EFLG230
Backorder
Brand Logo
3.6 out of 5 Customer Rating

15 - 25 Tricycle Electric Retracts

Item No. EFLG230
$143.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
Next Shipment May 2024
Selected Store

Product Details

Key Features

  • Robust landing gear strut and mounting bracket
  • Integrated electric motor with a micro PCB
  • Built-in overcurrent protection
  • Strut Diameter: 0.137 in (3.5mm)
  • Aircraft Weight: 4.00 - 7.00 lb (1.80 - 3.10kg)

Overview

Add the realism of functioning retracts to your 15- to 25-sized airplanes. E-flite's completely self-contained retract systems require no air tanks, complex linkages, or even extra servos. They simply need to be bolted into place and plugged into the receiver. A specially designed Y-harness is also included, allowing pilots to use a single receiver channel to control all retract units.

Main Retracts
15-25 Size Main Retract Units (mm)



Nose Gear
15-25 Size Nose Gear Unit (mm)



Product Specifications

Connector Type Universal
Part Type Retract Parts
Voltage 4.8V-7.4V
Current Draw Idle 5mA
Current Draw Stall 200mA
Motor Type Brushed
