14SGA 14-Channel Air Computer System

Item No. FUTK9410
Discontinued
Brand Logo
4.1 out of 5 Customer Rating

14SGA 14-Channel Air Computer System

Item No. FUTK9410
This Item is No Longer Available
Selected Store

Product Details

All the functions flyers demand in one comfortable radio!

Futaba proudly introduces the 14SG, the only 14-channel system with revolutionary 2.4GHz FASSTes!t technology. It's also compatible with Futaba FASST and S-FHSS protocols, so you can use virtually all Futaba 2.4GHz air receivers. The 14SG can also transmit and receive telemetry data. Install Futaba telemetry sensors (sold separately) to monitor flight data, receive alerts while in flight and more. Heli pilots will prefer the 14SG's flybarless gyro support - which makes the 14SG the perfect system for flybarless flight. That's just the beginning! To see everything that the 14SG can do, read on...
  • Channels: 12 proportional, 2 switched
  • Compatible with FASSTest, FASST and S-FHSS protocols
  • FASSTest telemetry compatible with Futaba telemetry sensors (sold separately)
  • Free user-updatable software
  • 30-model memory
  • 10-character user naming
  • 10-character model naming
  • Airplane, helicopter and glider programming
  • Large, 1.75 x 3 backlit LCD screen with 128 x 64 resolution
  • SensorTouch programming
  • Compatible with secure digital memory cards for external storage of model setups and software updates (32MB-2GB or HC (High-Capacity) 4GB-32GB)
  • Left and right assignable slider switches
  • Two assignable rotary knobs
  • Six assignable three-position switches
  • One assignable momentary two-position switch
  • One assignable two-position switch
  • Comfortable rubber grips on the sides and back
  • Wide top switch spacing
  • Adjustable stick tension
  • Dual ball bearing gimbals
  • 4 vibration warning types
  • Home/Exit; User Menu/Servo Monitor buttons
  • Audio earphone jack (for telemetry alarms)
  • 6V 1800mAh NiMH battery pack
  • User stick calibration
  • Trainer system
  • Servo speed adjust
  • 5 programmable mixes
  • V-tail, Ailvator, winglet, motor mixing
  • Trim mix
  • Logic switch (condition switch only)
  • Internal programmer for S.Bus servos
  • User menu
  • Servo monitor (neutral and moving tests)
  • 2 count up/countdown timers
  • Integral timer
  • Model timer
  • Quick model select

Airplane Programming Features

  • 7 different wing types
  • 3 different tail types
  • 2 different rudder types
  • Flap setting menu
  • Differential ailerons
  • Aileron to camber flap mixing
  • Aileron to brake flap mixing
  • Aileron to rudder mixing
  • Rudder to aileron mixing
  • Rudder to elevator mixing
  • Camber mixing
  • Elevator to camber mixing
  • Camber flap to elevator mixing
  • Snap roll mixing
  • Airbrake mixing
  • V-Tail mixing
  • Ailvator
  • Winglet
  • Motor mixing
  • Fuel mixture mixing
  • Gyro mixing
  • Throttle curve (5-point)
  • Pitch curve (5-point)
  • Idle down

Glider Programming Features

  • 1 different wing types
  • 3 different tail types
  • 2 different rudder types
  • Flap setting menu
  • Differential ailerons
  • Aileron to camber flap mixing
  • Aileron to brake flap mixing
  • Camber flap to elevator mixing
  • Aileron to rudder mixing
  • Rudder to aileron mixing
  • Rudder to elevator mixing
  • Camber mixing
  • Elevator to camber mixing
  • Camber flap to elevator mixing
  • Butterfly mixing
  • Butterfly to elevator mixing

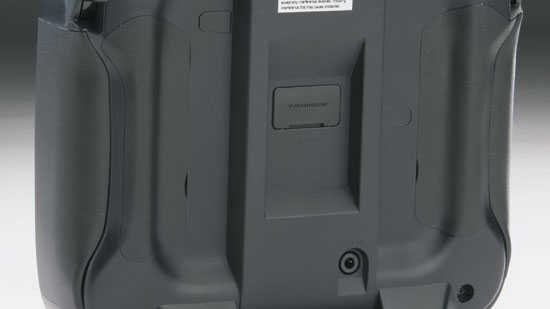

Futaba 14SGA 14-Channel Air Computer System - Rubber hand grips and adjustable gimbals
Rubber hand grips and adjustable gimbals

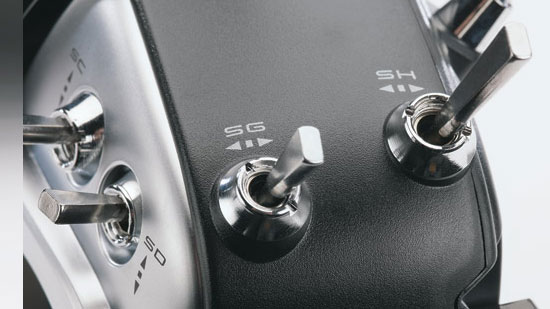

Futaba 14SGA 14-Channel Air Computer System - Wide switch spacing
Wide switch spacing

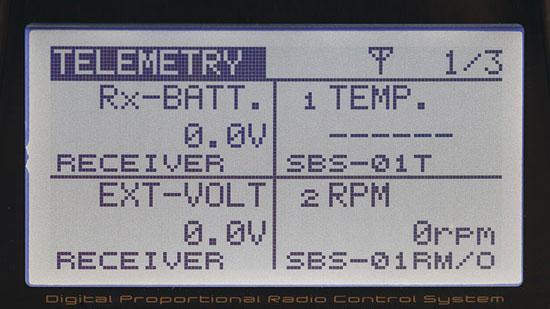

Futaba 14SGA 14-Channel Air Computer System - Main telemetry screen
Main telemetry screen

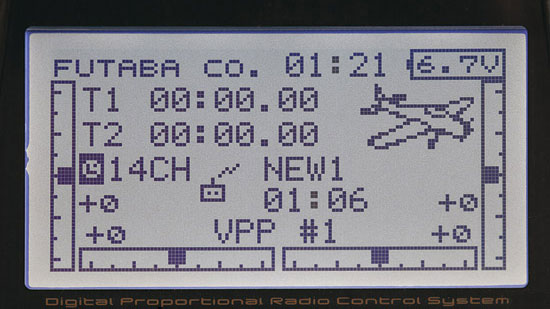

Futaba 14SGA 14-Channel Air Computer System - Home Screen
Home screen

Product Specifications

Manufacturer # 01004364-3
